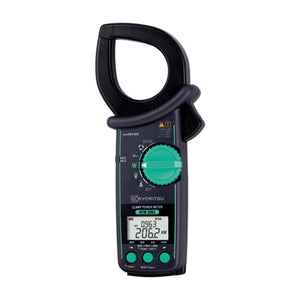

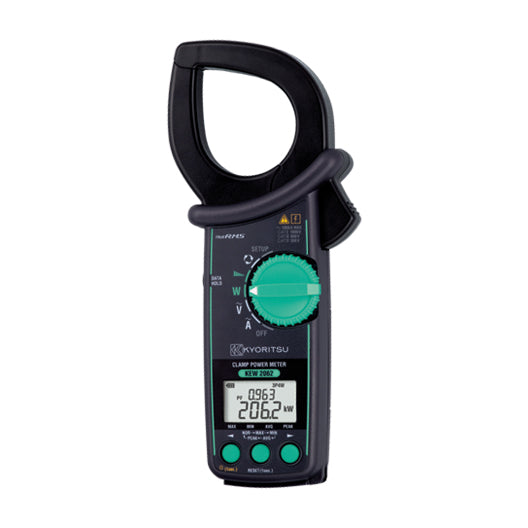

Kyoritsu KEW 2062 Clamp Power Meter

Heavy-Duty Power Meter for High-Current Systems — No Bluetooth, All Muscle

The KEW 2062 offers the same rock-solid performance as the 2062BT, but without wireless connectivity. If you need a serious clamp power meter for high-load three-phase systems and prefer standalone operation, the 2062 delivers — with up to 2000A AC current measurement, advanced power analysis, and harmonic diagnostics to the 40th order.

What It Does

Measures AC/DC current and voltage, frequency, power (kW, kVA, kVAR), energy, power factor, THD, and harmonics. It’s a powerful tool for monitoring and diagnosing electrical systems in demanding environments.

Who It’s For

Perfect for electrical contractors, industrial maintenance teams, and energy professionals who need high-current capacity and harmonic analysis without the need for app integration.

Why It’s Better

• 2000A Clamp Capacity – Easily measures large loads and busbars.

• Triple Display with Backlight – View multiple parameters at once.

• Advanced Harmonics Display – Up to the 40th order for both current and voltage.

• Inrush Current & Phase Rotation Features – Helps identify system issues fast.

• Built Tough & Safety Rated – CAT IV 600V / CAT III 1000V for rugged field use.

Key Specifications:

• Current Range: 0 – 2000A AC / 0 – 1000A DC

• Voltage Range: 0.0 – 1000V AC/DC

• Power: Active, Reactive, Apparent

• Harmonics: Up to 40th order

• THD, Inrush Current, Phase Rotation

• Jaw Opening: 55mm

• Data Memory: 1000 data sets

• Display: Large triple-line with backlight

• Power Supply: AA ×4

• Safety Rating: IEC61010-1 CAT IV 600V / CAT III 1000V
