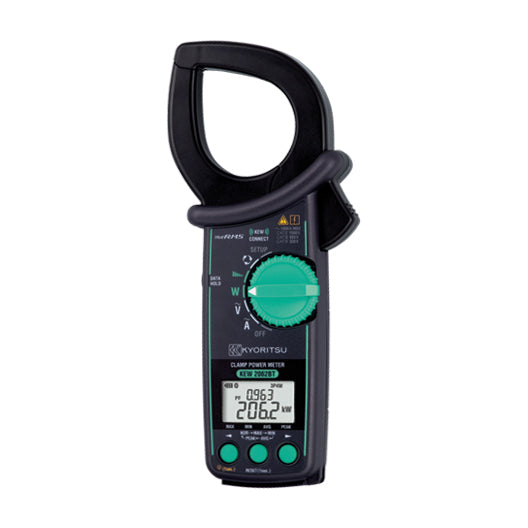

Kyoritsu KEW 2062BT Clamp Power Meter

High-Capacity Clamp Power Analysis — with Bluetooth® and Harmonic Diagnostics

The KEW 2062BT takes everything pros love about the 2060BT and turns it up a notch. With a 2000A AC clamp capacity, harmonics up to the 40th order, and advanced power measurement functions, it’s a robust choice for high-load environments. Bluetooth® connectivity makes data capture fast, safe, and seamless.

What It Does

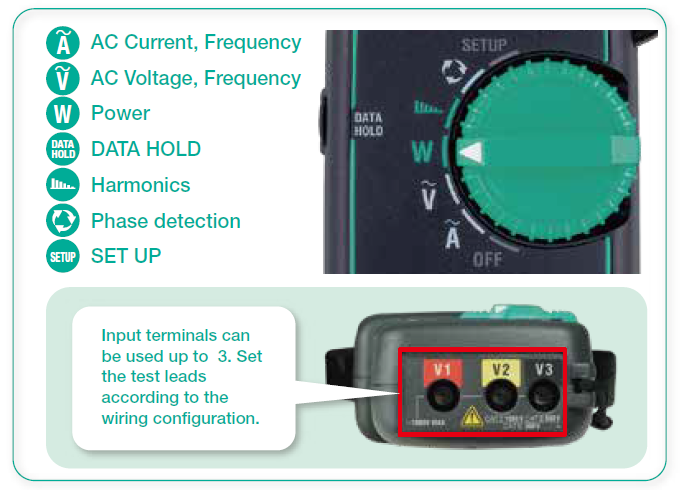

The 2062BT measures AC/DC current and voltage, frequency, power (active, reactive, apparent), energy, power factor, and THD — with harmonic analysis up to the 40th order. Its 55mm jaw opening accommodates large conductors and busbars.

Who It’s For

Ideal for plant maintenance engineers, commercial electricians, utility technicians, and energy auditors working with high-current three-phase systems.

Why It’s Better

• 2000A AC Measurement – Handles demanding industrial loads with ease.

• Bluetooth® Connectivity – View and record measurements wirelessly via the KEW Smart app.

• Advanced Harmonics Analysis – Diagnose waveform distortion with up to 40th-order harmonic display.

• Built-in Inrush Current & Phase Rotation Functions – Essential for troubleshooting motors and rotating equipment.

• Safety Rated CAT IV 600V / CAT III 1000V – Trusted for high-voltage environments.

Key Specifications:

• Current Range: 0 – 2000A AC / 0 – 1000A DC

• Voltage Range: 0.0 – 1000V AC/DC

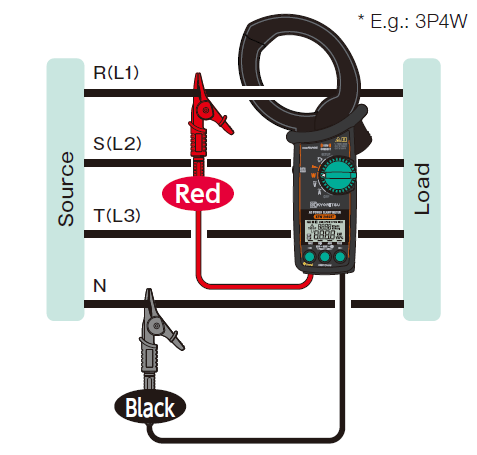

• Power: Active (kW), Reactive (kVAR), Apparent (kVA), Power Factor

• Harmonics: Up to 40th order (voltage & current)

• Inrush Current Measurement

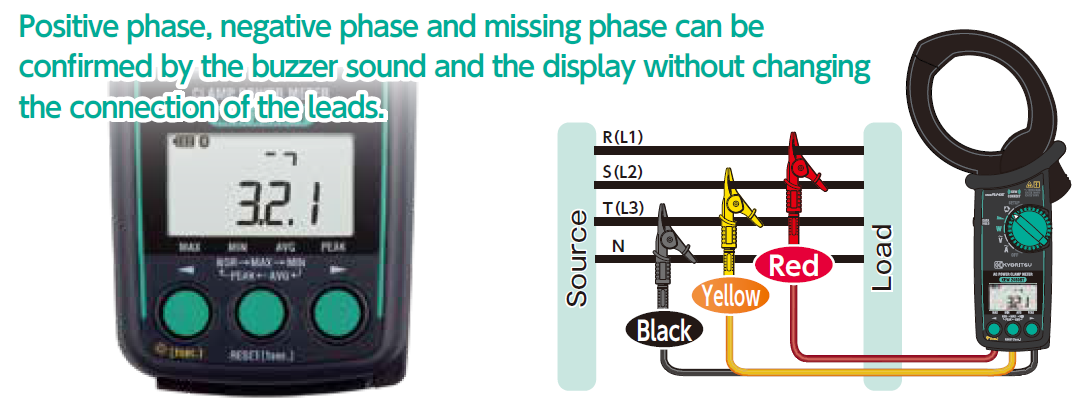

• Phase Rotation Detection

• Data Memory: Up to 1000 sets

• Jaw Opening: Max 55mm

• Display: Triple display with backlight

• Bluetooth® App Support: KEW Smart

• Power Supply: AA ×4

• Safety Rating: IEC61010-1 CAT IV 600V / CAT III 1000V
