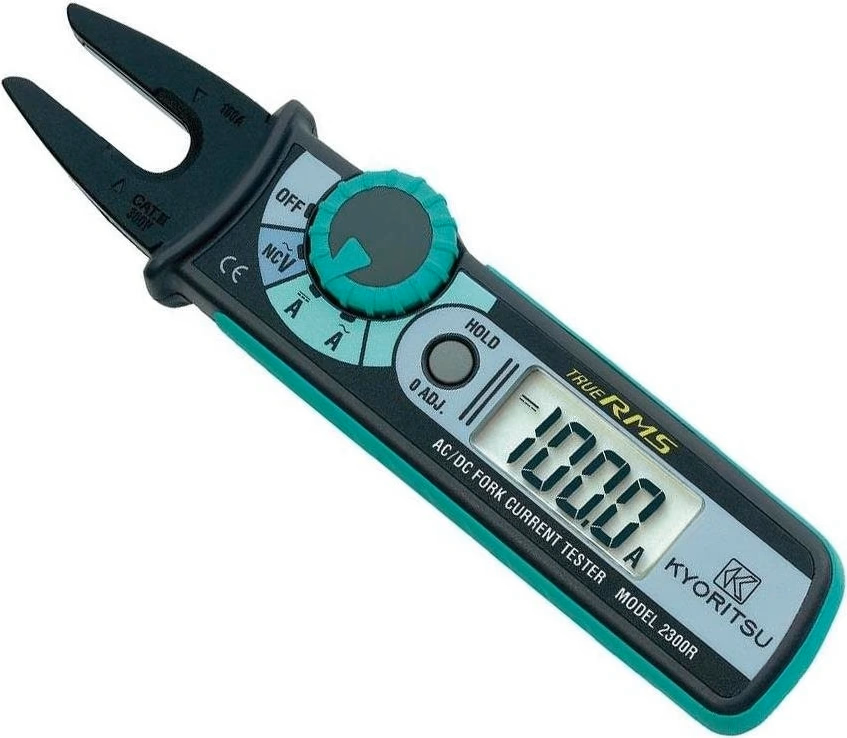

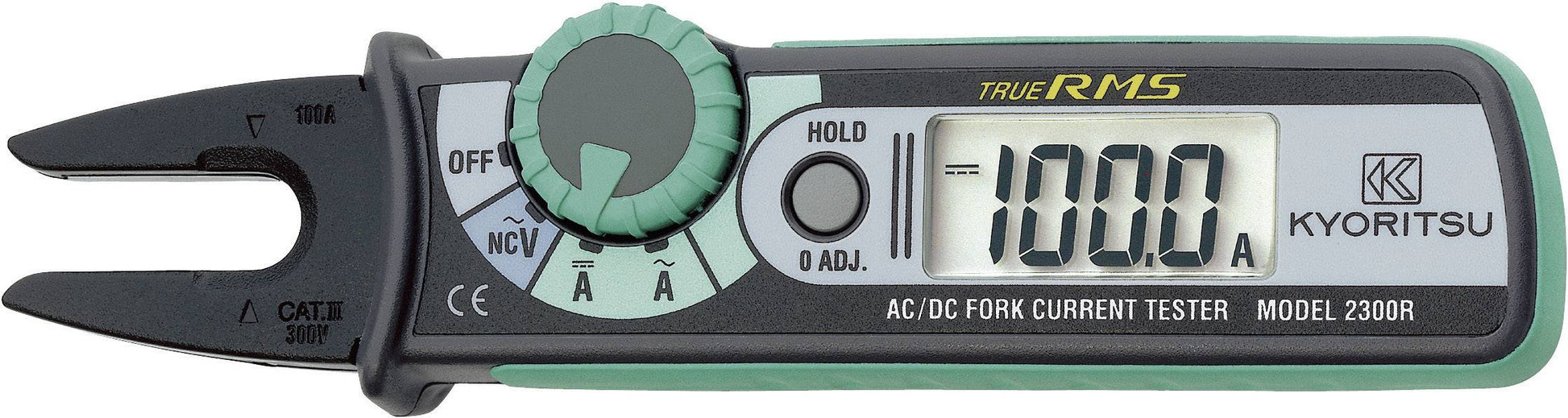

Kyoritsu KEW-2300R Fork Current Tester — 100 A AC/DC True RMS

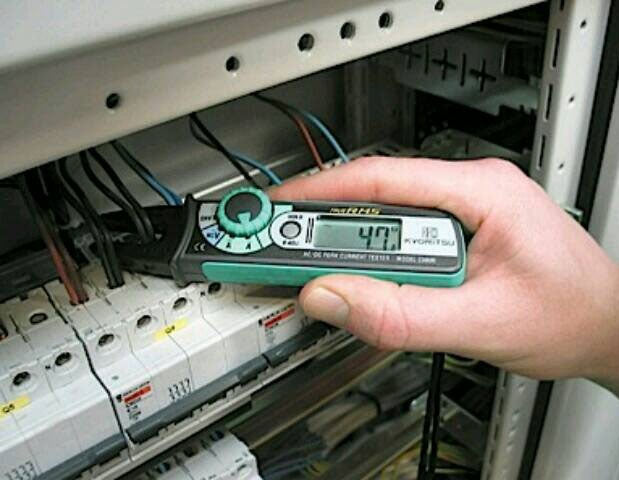

The Kyoritsu KEW-2300R Fork Current Tester is a compact and reliable solution for measuring AC and DC current up to 100 A in tight spaces where traditional clamp meters can’t reach. Its fork-style design slips easily around conductors in crowded junction boxes, panels, or cable bundles — ideal for electricians, maintenance technicians, and field service pros.

Ideal for current measurement in crowded panels and tight cable bundles.

Key Features

• True RMS Current Measurement — accurate AC and DC current readings on both clean and distorted waveforms.

• Fork-Style Design — slim profile allows current measurement where clamp meters won’t fit.

• Non-Contact Voltage (NCV) Detection — detects presence of AC voltage without direct contact and alerts with buzzer/visual signal.

• Data Hold & Auto Power-Off — lock readings on screen for easier reporting and extended battery life.

• Zero-Adjust Function — quickly zeroes DC current for accurate measurements.

• Portable & Lightweight — pocket-sized tool that’s easy to carry and use in the field.

Technical Specifications

Current Measurement

• AC: 0 – 100.0 A ±2.0 %rdg ±5 dgt (50/60 Hz)

• DC: 0 – 100.0 A ±2.0 %rdg ±5 dgt

General

• True RMS: Yes

• Non-Contact Voltage (NCV): Yes

• Display Resolution: 1,049 counts

• Conductor Size: Ø max 10 mm

• Safety Rating: IEC 61010-1 CAT III 300 V, Pollution Degree 2

• Power: 2 × “AAA” (R03) batteries

• Dimensions: 161 × 40 × 30 mm

• Weight: 110 g (with batteries)

What’s Included

• KEW-2300R Fork Current Tester

• Batteries (2 × AAA)

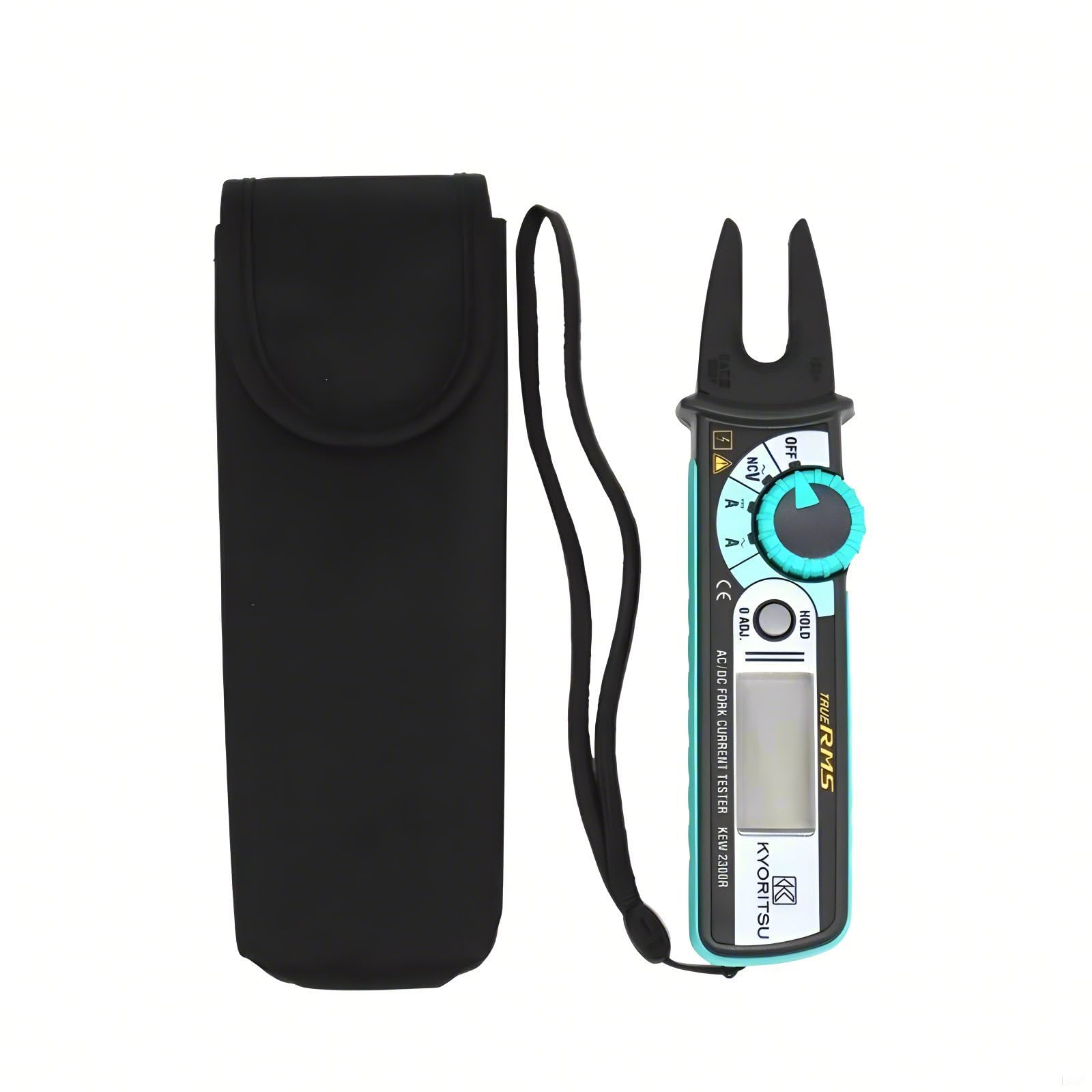

• Carrying Case

• Instruction Manual

Ideal For

• Electricians & field service technicians

• Maintenance & troubleshooting in industrial or residential systems

• Tight wiring panels, junction boxes, or bundled cabling

Why Choose the KEW-2300R

True RMS measurement ensures accurate results on non-sinusoidal loads such as inverter drives and PWM controls — a key advantage over average-responding meters. The fork design expands usability where space is limited and a traditional clamp can’t fit.
