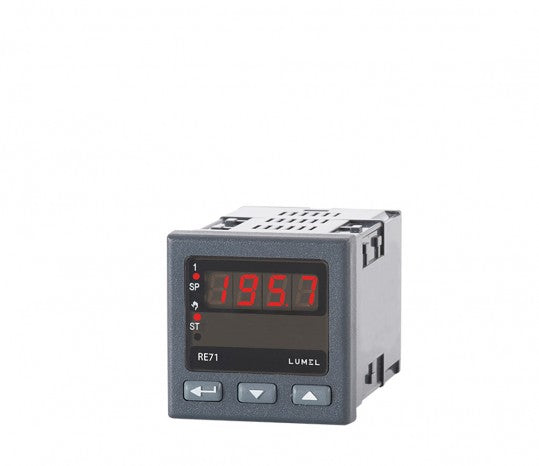

LUMEL RE71 single Pt100 or T/C input controller

Digital controller RE71 type is destined to control temperature in furnaces, dryers, injection moulding machines and others.

• Control acc. to the PID or ON/OFF algorithm.
• Direct co-operation with:
  • resistance thermometer (Pt100)
  • or thermocouple (J, K, S)
• Automatic selection of PID parameters (acc. to the new innovative SMART PID technology).

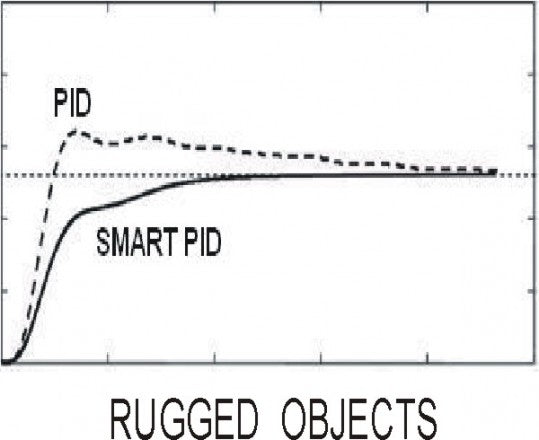

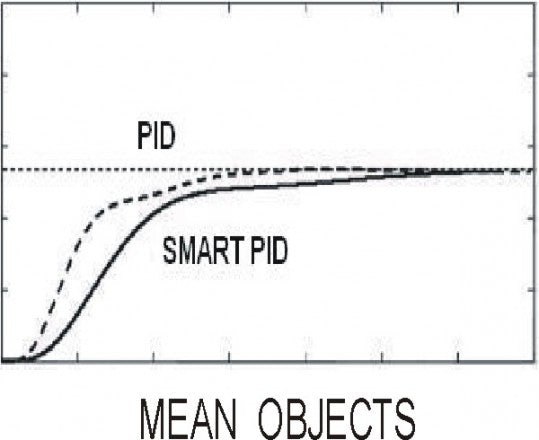

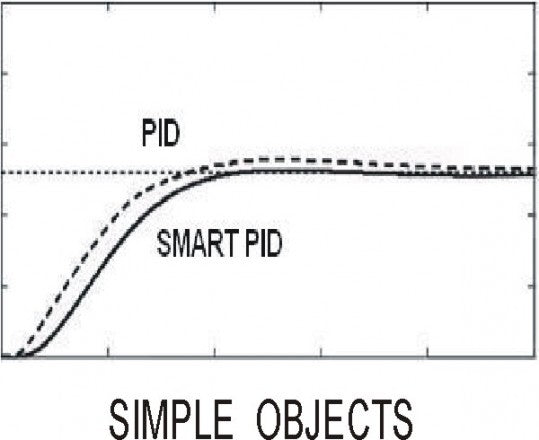

  • SMART PID Technology:
    • self-acting and precise selection of PID settings,
    • effective  control algorithm,
    • easy and simple solution for technical service,
    • lack of overshoots or small overshoots for a large range of objects in the automatic process of PID parameter selection.
• One control output:
  • relay output or
  • voltage output for SSR relay control.
• Manual control mode.
• IP65 protection level
• Password protection
• External dimensions: 48 x 48 x 93mm

Documentation

• RE71_data_sheet
• RE71_service_manual_ver_A
