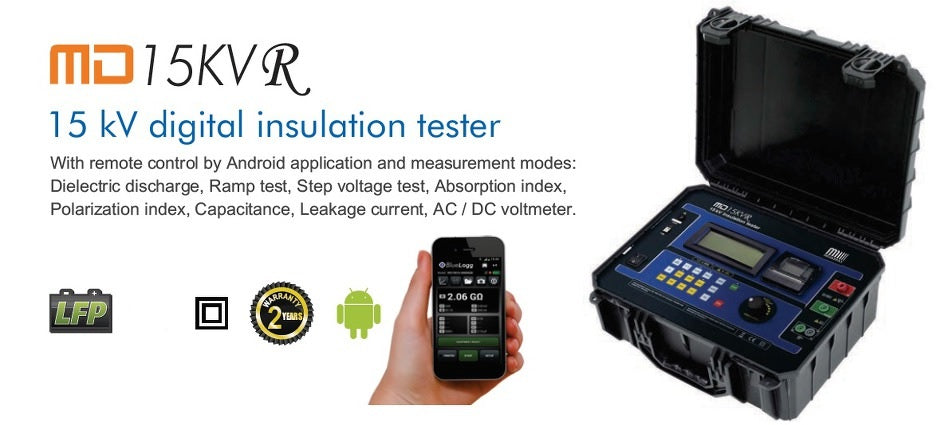

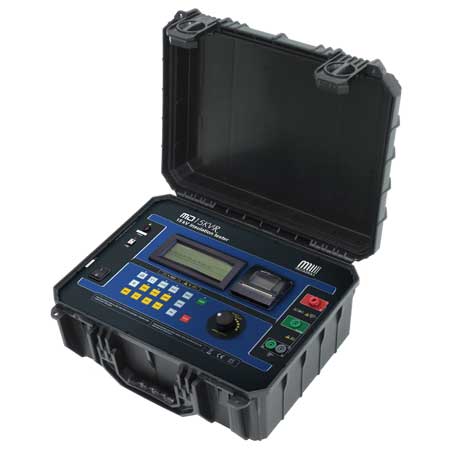

Megabras Tentech MD15KVR – 15kV Digital Insulation Resistance Tester

Advanced, Portable 15kV Insulation Tester for Utilities, HV Labs, and Field Diagnostics

Product Overview:
The Megabras Tentech MD15KVR is a robust and portable 15kV digital insulation resistance tester designed for high-voltage field and laboratory applications. With test voltages up to 15,000 V and insulation resistance measurement capability up to 500 GΩ, it provides the performance required for testing generators, cables, transformers, switchgear, and other high-voltage assets.

This model combines precision and usability with features such as real-time digital display, step voltage and ramp test modes, automatic PI/DAR analysis, and USB/RS232 connectivity. Designed for the rigors of field work, it comes housed in a weather-resistant, rugged case and complies with international safety standards.

Key Features:

• Adjustable Test Voltage: 500 V to 15,000 V in 25 V steps

• Insulation Resistance Measurement: Up to 500 GΩ

• PI and DAR Testing – Automatically calculated and displayed

• Step Voltage and Ramp Test Modes

• Digital LCD Display with Bargraph

• USB & RS232 Interfaces for PC data export and reporting

• Automatic Discharge and Test Inhibit Safety Features

• Rechargeable Battery and AC Power Operation

• CAT III 1000V Safety Rated / Complies with IEC 61010 and IEEE 43-2000

Best For:

• Electrical utility substations and field engineers

• Transformer and motor manufacturing QA

• High-voltage equipment maintenance

• HV cable testing in harsh environments

• Field diagnostics and long-range insulation analysis

What’s Included:

• Megabras Tentech MD15KVR 15kV Insulation Tester

• Shielded HV test leads with clamps

• USB and RS232 interface cables

• PC software and manual

• Rugged waterproof case

• Factory calibration certificate
