METREL MI 2883 Energy Master standard set, with flexible CTs
METREL MI 2883 Energy Master standard set, with flexible CTs
METREL MI 2883 Energy Master standard set, with flexible CTs

METREL MI 2883 Energy Master standard set, with flexible CTs

Regular price $ 3,171.00 CAD Sale

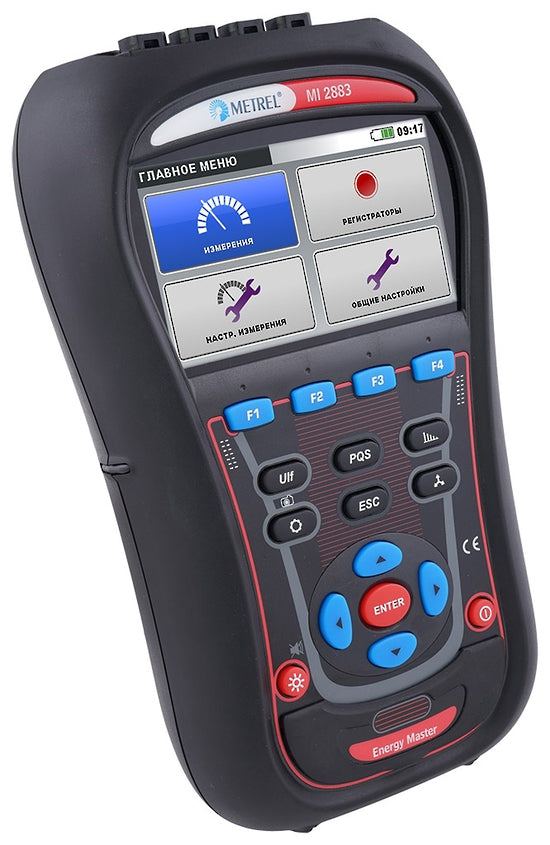

The MI 2883 Energy Master is a hand-held three phase power quality analyser, specially designed for energy logging and subsequently efficiency calculation. Reducing energy use reduces energy costs and may result in a financial cost saving. Energy Master serves as a perfect tool for long term logging and later post processing of recorded data. Large easy-to-read graphical colour display enabling the user on site analysis and data checks. The handy Quick Set buttons makes the instrument more user friendly and are allowing faster data overview. Advanced PC SW package PowerView3 enables detailed analysis of recorded data, direct reading from the microSD memory card, analysis of long term records and automatic creation of professional test report.

MAIN FEATURES

  • 3-voltage channels with wide measurement range: 0 ... 1000 Vrms (CAT III / 1000 V);
  • 4-current channels with support for automatic clamp recognition and “on instrument“ range selection;
  • Automatic Smart Clamp detection and Smart Clamp range selection;
  • Compliance with power quality standard IEC 61000-4-30 Class S;
  • Complete power quality analysis according to EN 50160 including signalling and interharmonics;
  • Support for microSD memory card (8-GB supplied with the instrument) up to 32GB;
  • Color-coded input terminals and termi­nal labels to suit your application region;
  • Intuitive main menu and large icons that makes the equipment very easy to navigate and configure;
  • Powerful PC SW PowerView3 enables downloading, view, analysis of recorded data and professional report creation;
  • Flexible clamps (without additional power supply) are included in the Euro set.

MEASURING FUNCTIONS

  • Voltage: TRMS, peak, crest factor (4-channel);
  • Current: TRMS, peak, crest factor (4-channel);
  • Power (active, reactive, apparent);
  • Power measurements fully compliant with IEEE 1459 (active, non active, fundamen­tal, harmonic, load unbalance);
  • Unbalance, flicker measurement;
  • Harmonic and interharmonic analysis up to 50th harmonics, THD measurement;
  • Energy (active, reactive, generated, consumed);
  • Capturing and recording of power supply events (shutdowns, interruptions, swells, dips);
  • Power quality analysis according to EN 50160;
  • Recording up to 7 adjustable alarms;
  • Temperature measurement;
  • Power factor cos ϕ.

SOFTWARE

PowerView PC SW platform contains a package of functionalities needed for profund evaluation of power quality phenomena and creation of complex reports like:

  • Data download
  • Predefined EN 50160 power quality test report
  • Data merge
  • Transfer of test data to other applications (MS Excel, MS Word, etc.)
  • Filtering of recorded data
  • Tool for repairing of downloaded results to prevent loss of data during transmission

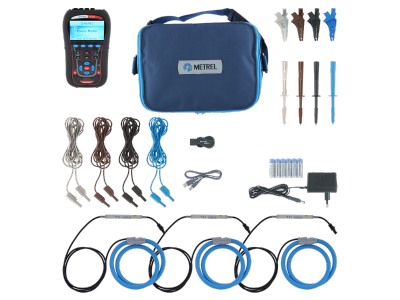

MI 2883 EU set includes:

  • Instrument Energy Master
  • 1-phase flexible current clamps 3000 / 300 / 30 A  (A 1227), 3 pcs
  • Test probe, (brown, black, grey, blue), 4 pcs
  • Crocodile clip, (brown, black, grey, blue), 4 pcs
  • Voltage measurement lead, (brown, black, grey, blue), 4 pcs
  • Labels for color coding
  • microSD memory card 8.0GB
  • microSD card reader
  • PC SW PowerView3
  • USB cable
  • Power supply adapter
  • 1.2 V NiMH rechargeable battery, 6 pcs
  • Soft carrying bag
  • Instruction manual
  • Calibration certificate
