Metrel MI 3115 PV Analyser

Metrel MI 3115 PV Analyser

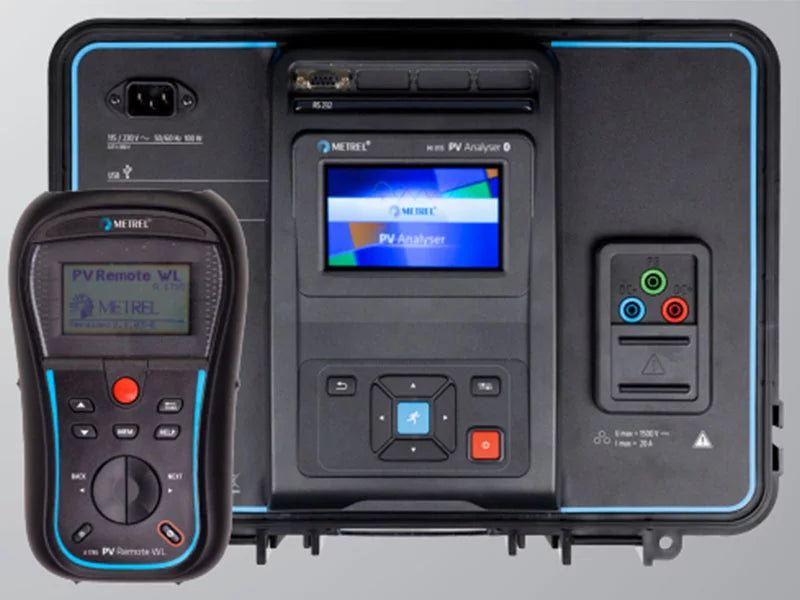

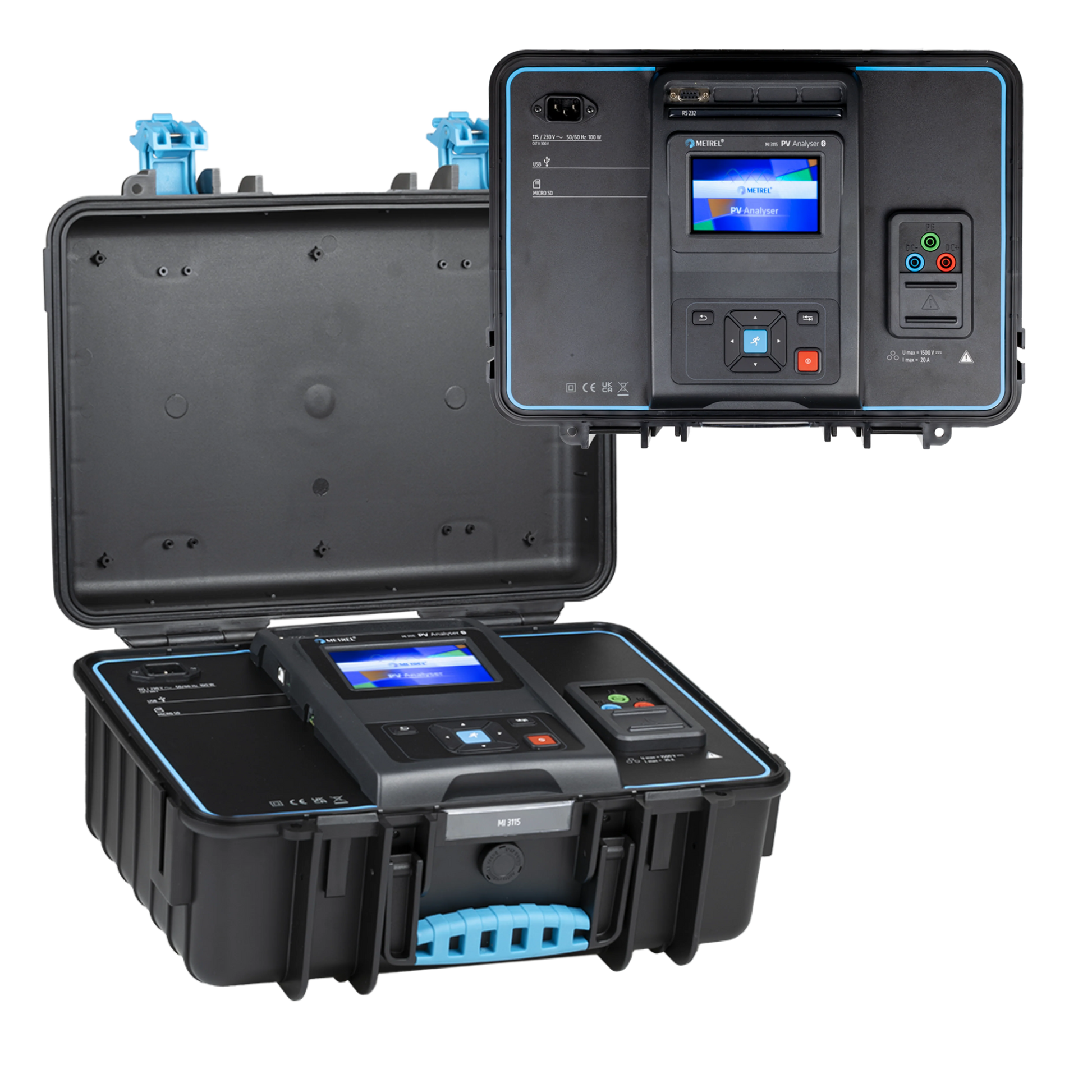

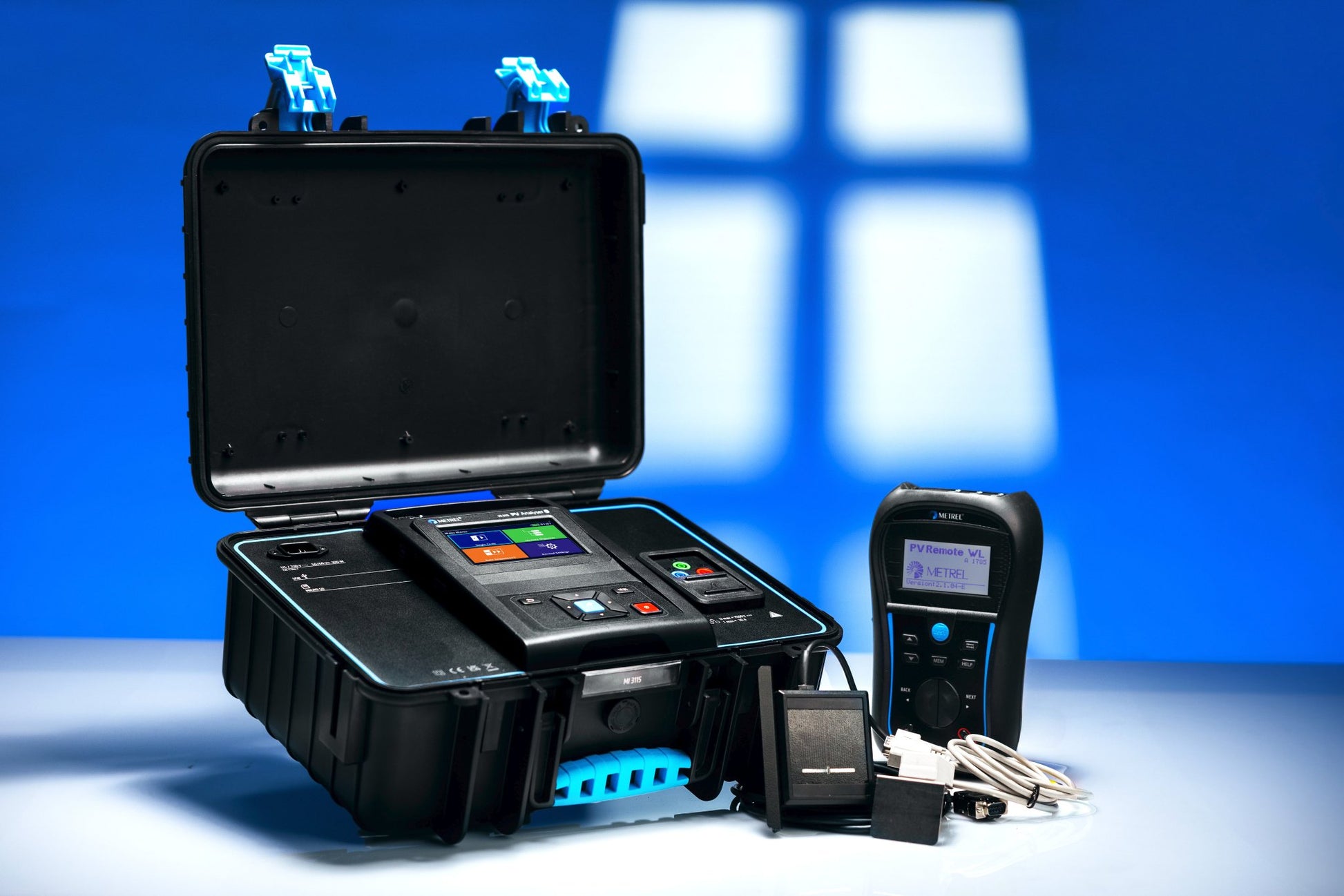

The Metrel MI 3115 PV Analyser is a multifunction test instrument designed for commissioning, diagnosing, and maintaining photovoltaic (PV) installations, as well as performing essential safety tests on conventional electrical systems. Combining powerful solar testing capabilities with installation tester functions, it offers outstanding versatility for electricians, solar installers, and service technicians.

This instrument supports I–V curve tracing up to 1000 V / 15 A, insulation resistance testing, continuity measurement, RCD testing, and more. It uses real-time irradiance and temperature data to normalize PV performance measurements and compare them with reference STC values. All results can be documented and analyzed using Metrel’s MESM software.

Key Features:

• I–V curve tracing up to 1000 V / 15 A
• Real-time irradiance and temperature compensation using wireless sensors
• DC/AC voltage and current measurement with power calculation
• Insulation resistance and continuity testing (electrical installations)
• RCD and loop impedance testing on AC side
• Predefined PV module database and STC comparison
• Large colour LCD and intuitive user interface
• Compatible with Metrel MESM software for data analysis and reports

Watch the MI 3115 in Action

See how the Metrel MI 3115 PV Analyser performs real-world photovoltaic and electrical testing. A quick overview of key features, functions, and setup.

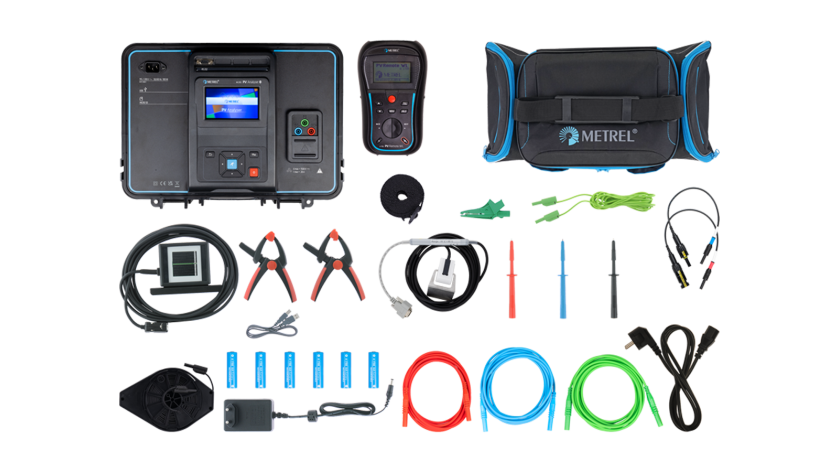

Kit Includes:

• MI 3115 PV Analyser instrument
• PV test leads and MC4 adapters
• AC test probes and cable set
• Wireless irradiance and temperature meter
• Rechargeable battery pack and charger
• Soft carrying case
• User manual, quick start guide, and calibration certificate

Applications:

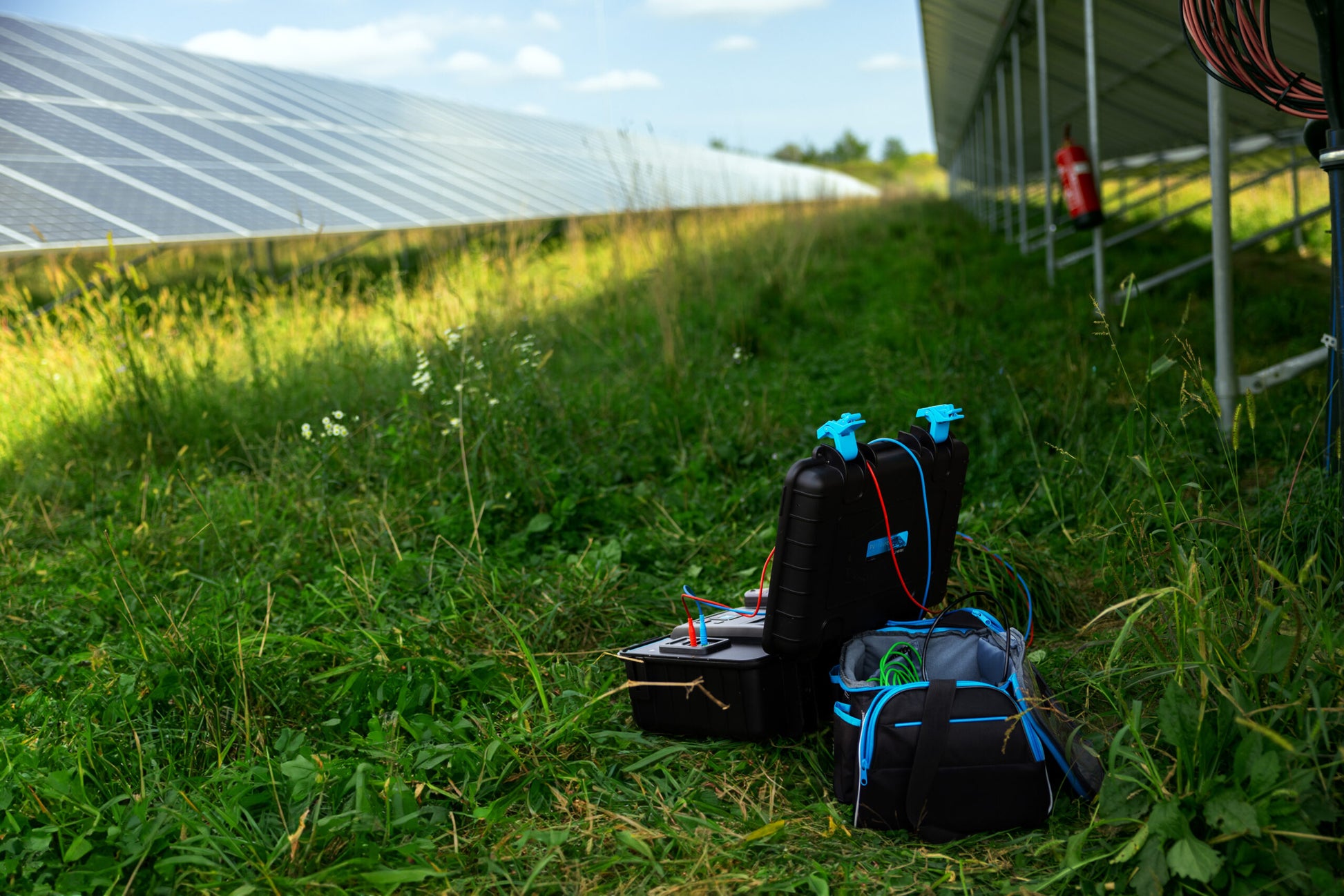

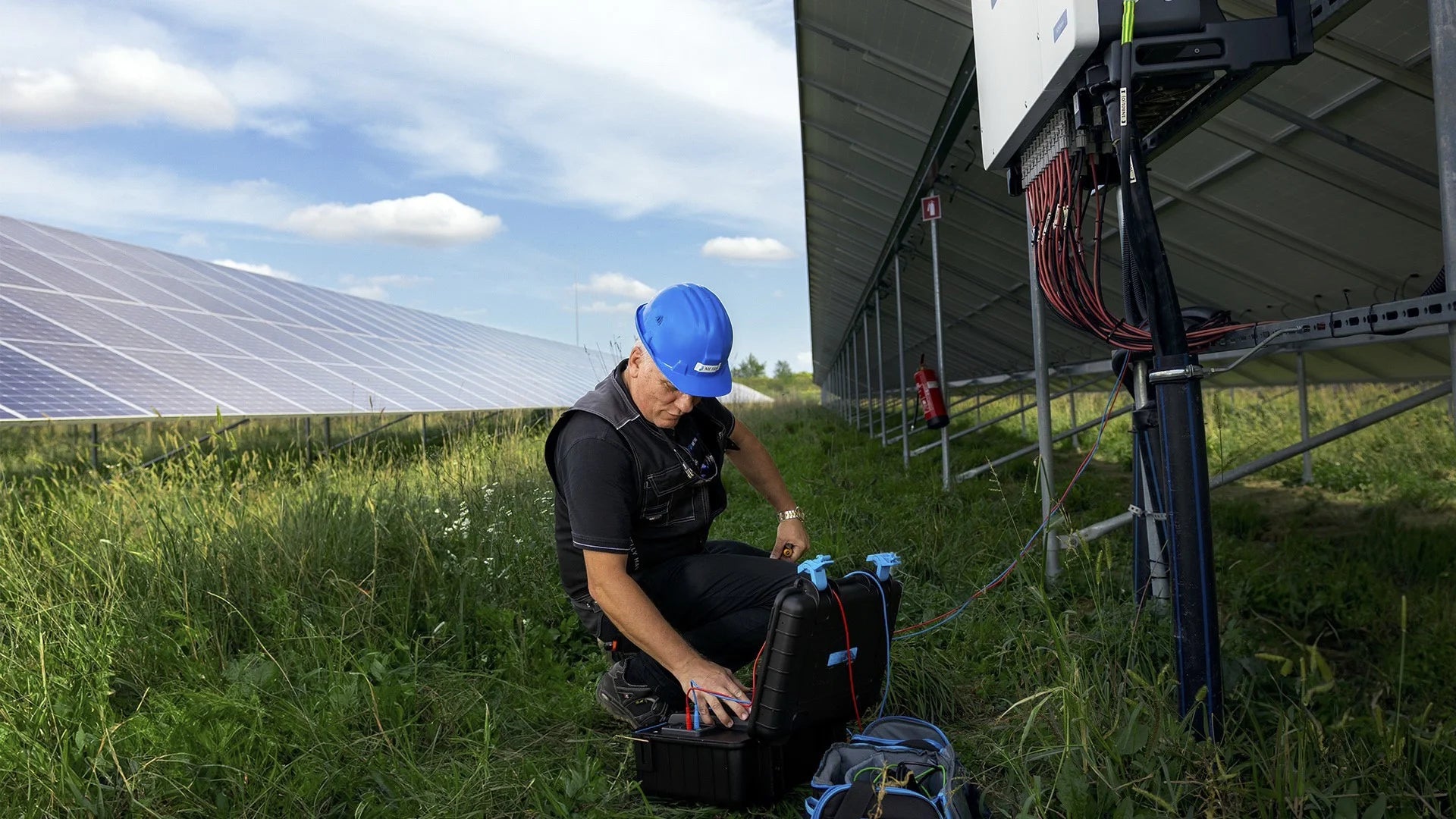

• Commissioning and maintenance of solar PV installations
• Electrical safety testing in residential and commercial environments
• Service diagnostics and performance verification
