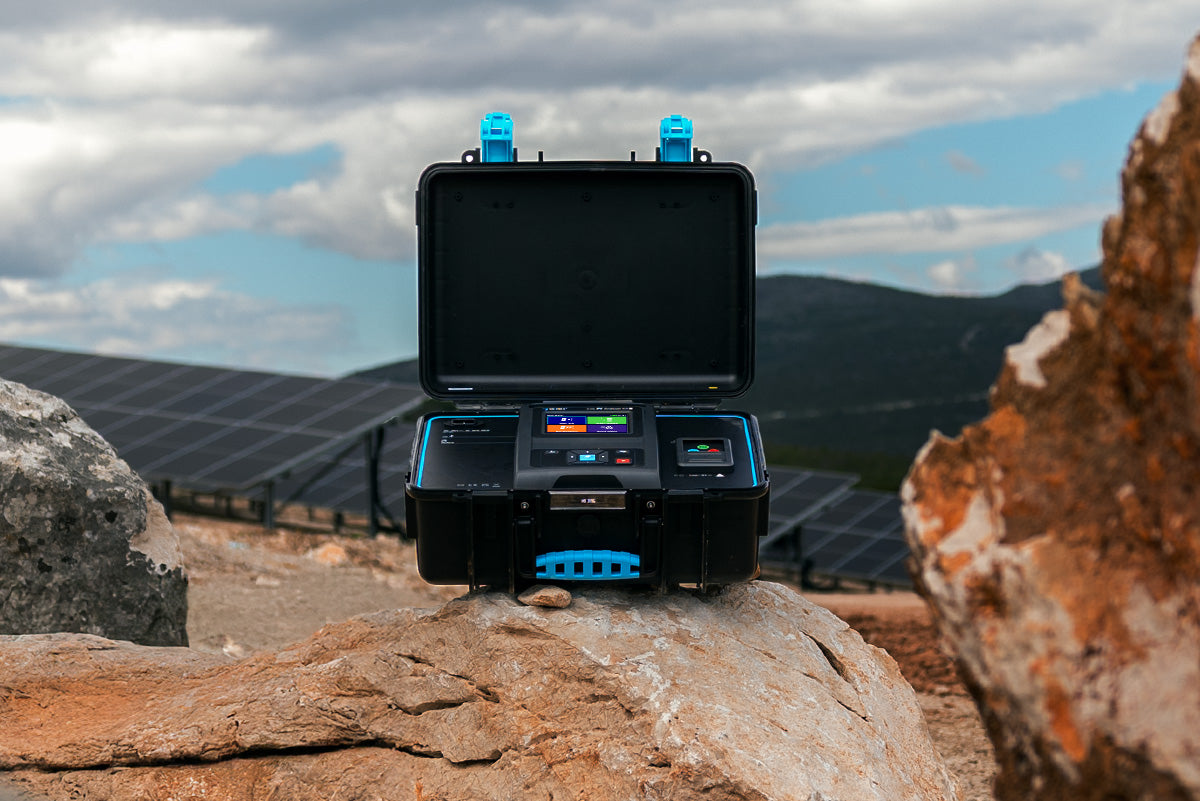

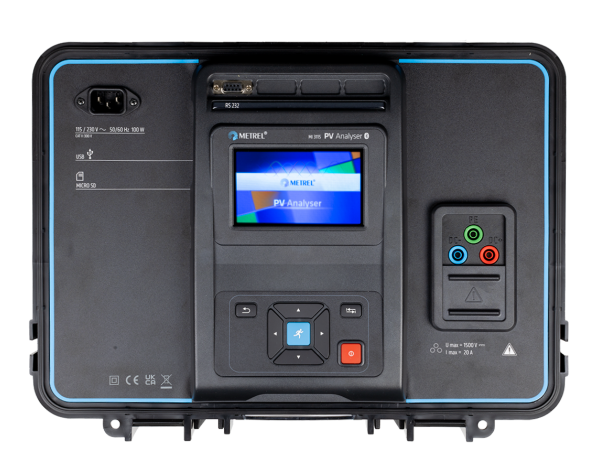

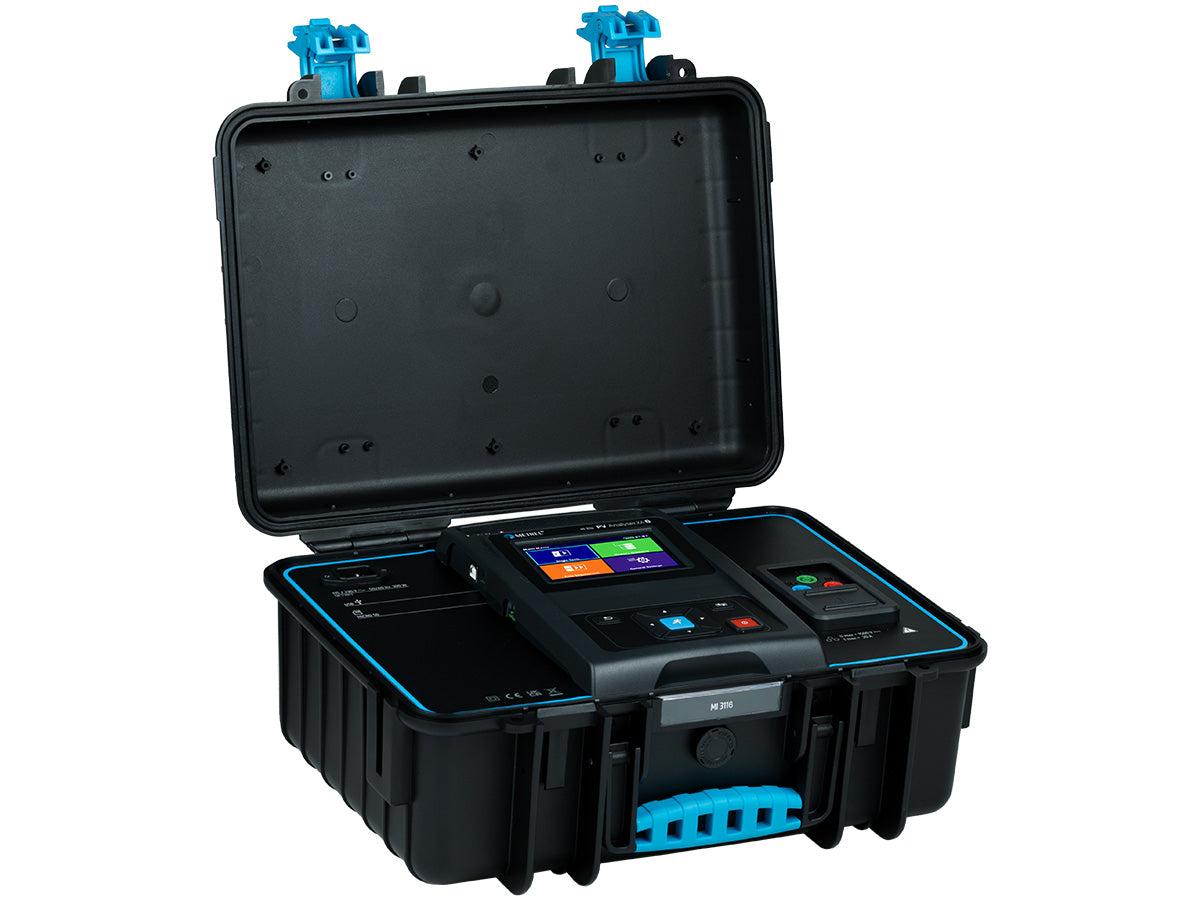

The Metrel MI 3116 PV Analyser XA is an advanced multifunction tester for commissioning, testing, and troubleshooting photovoltaic (PV) systems and standard electrical installations. Designed for professionals working in solar energy and electrical contracting, it combines photovoltaic I–V curve tracing with key electrical safety testing in a single compact unit.

Key PV functions include I–V curve tracing up to 1500 V and 40 A, real-time irradiance and temperature compensation via wireless sensors, and automatic comparison to STC reference curves. The MI 3116 also includes standard installation tests such as insulation resistance, continuity, RCD testing, and loop impedance measurement.

Watch It in Action

See the MI 3116 PV Analyser XA in action—real-world testing features explained

Key Features:

• I–V curve measurement up to 1500 V / 40 A
• Real-time irradiance and temperature compensation
• DC and AC voltage, current, and power measurement
• Built-in insulation resistance and continuity testing
• Loop impedance and RCD testing (AC side)
• Large colour display and intuitive user interface
• Compatible with Metrel MESM software for report generation

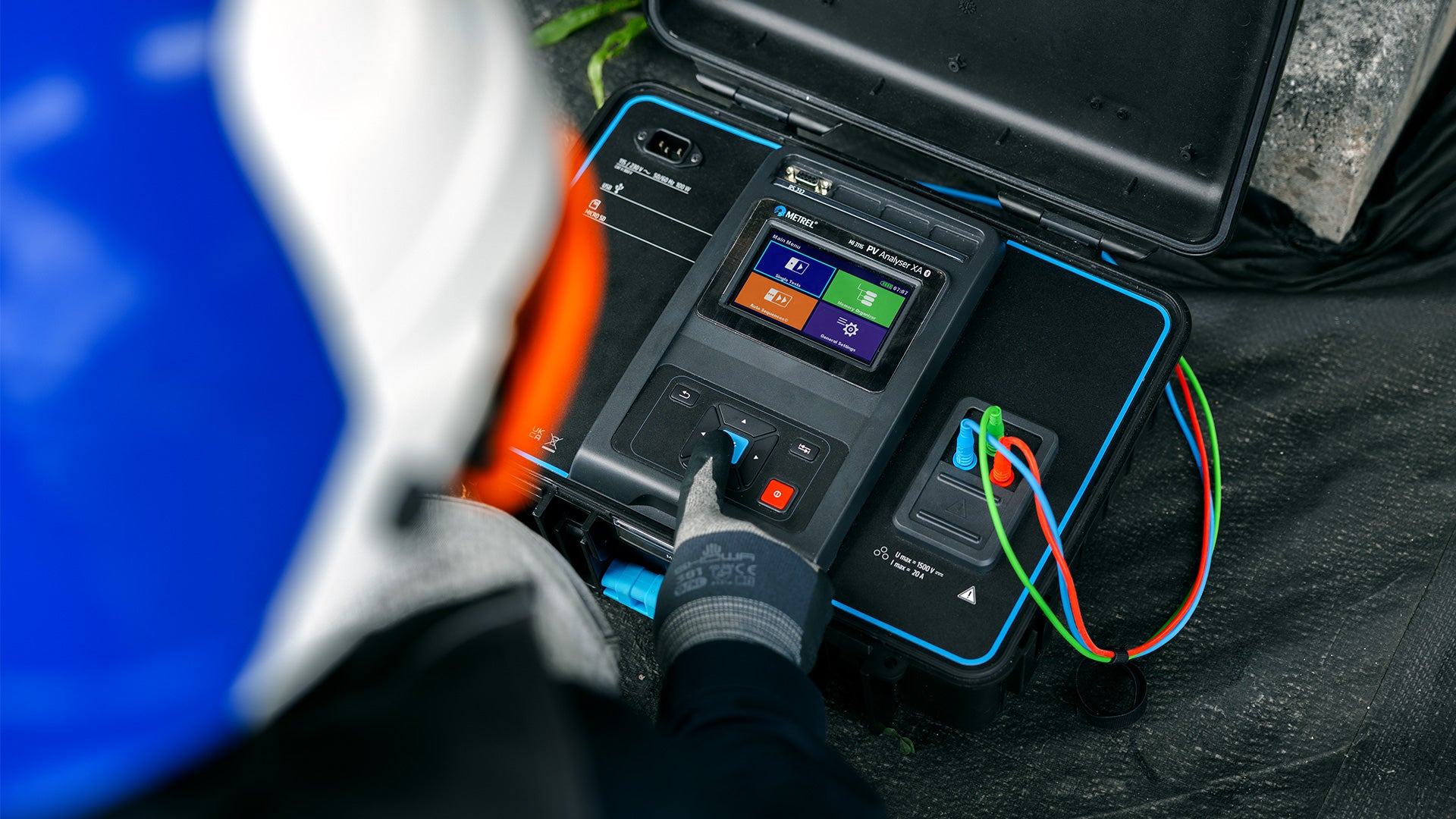

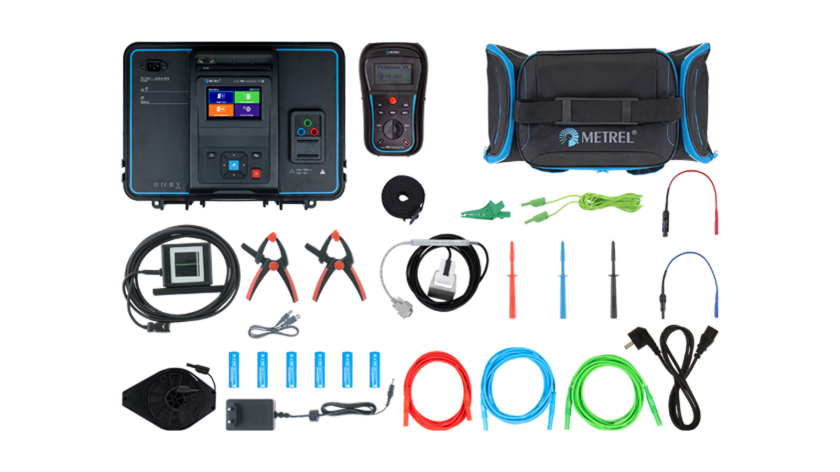

Kit Includes:

• MI 3116 PV Analyser XA unit
• PV test leads and MC4 connectors
• AC test probes and measurement cables
• Wireless irradiance and temperature sensor
• Carrying case
• Rechargeable Li-ion battery and charger
• User manual and calibration certificate

Applications:

• PV system commissioning and performance testing
• Electrical safety verification (residential, commercial)
• Preventive maintenance and troubleshooting
