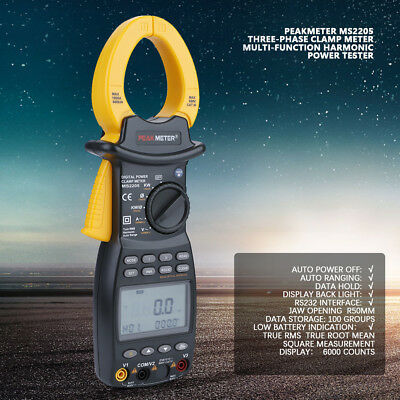

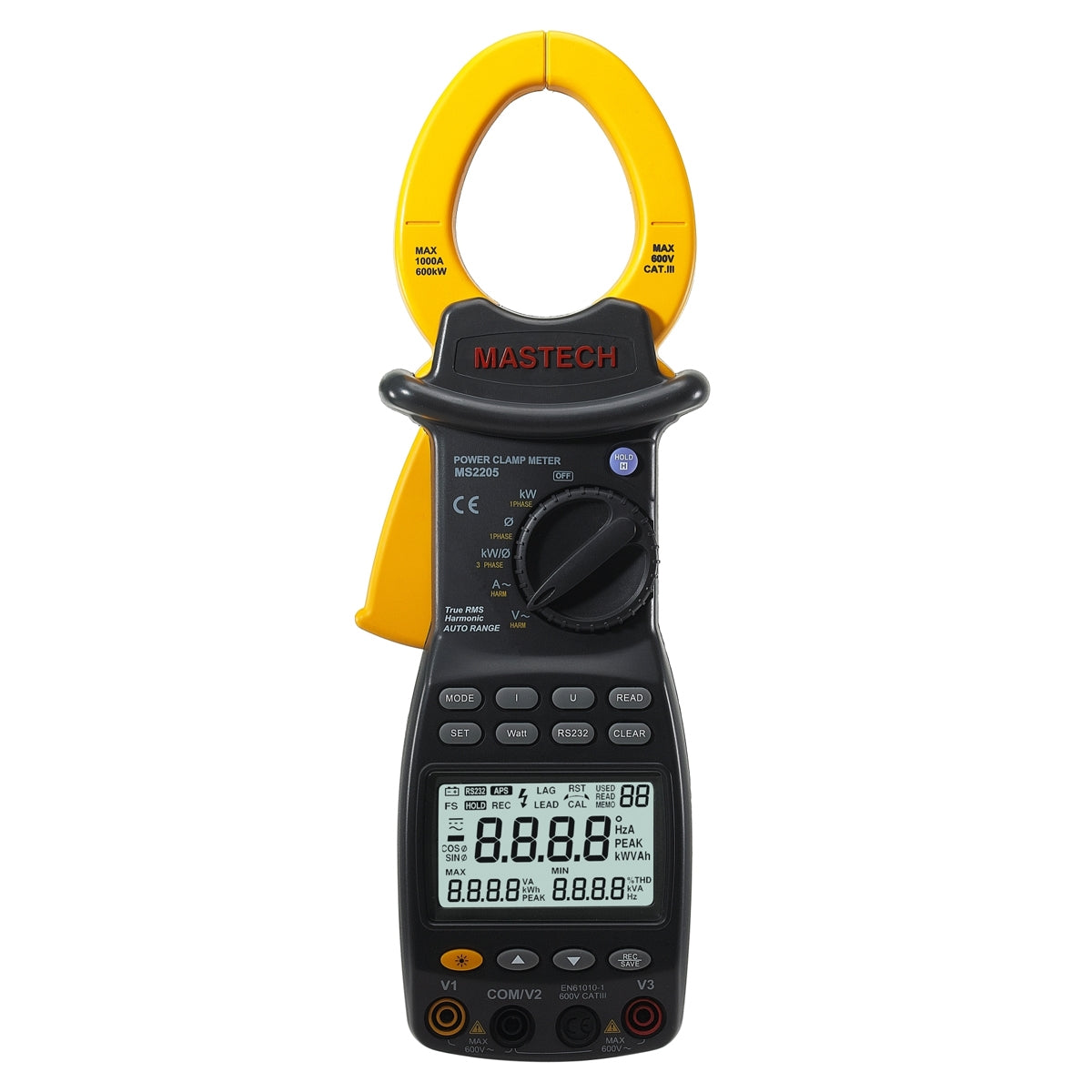

MS2205 Digital Power Clamp Meter Three Phase Harmonic Tester

MS2205 Digital Power Clamp Meter Three Phase Harmonic Tester

$ 299.00 CAD
$ 649.00 CAD $ 299.00 CAD
Sale Sold out
Available while quantities last

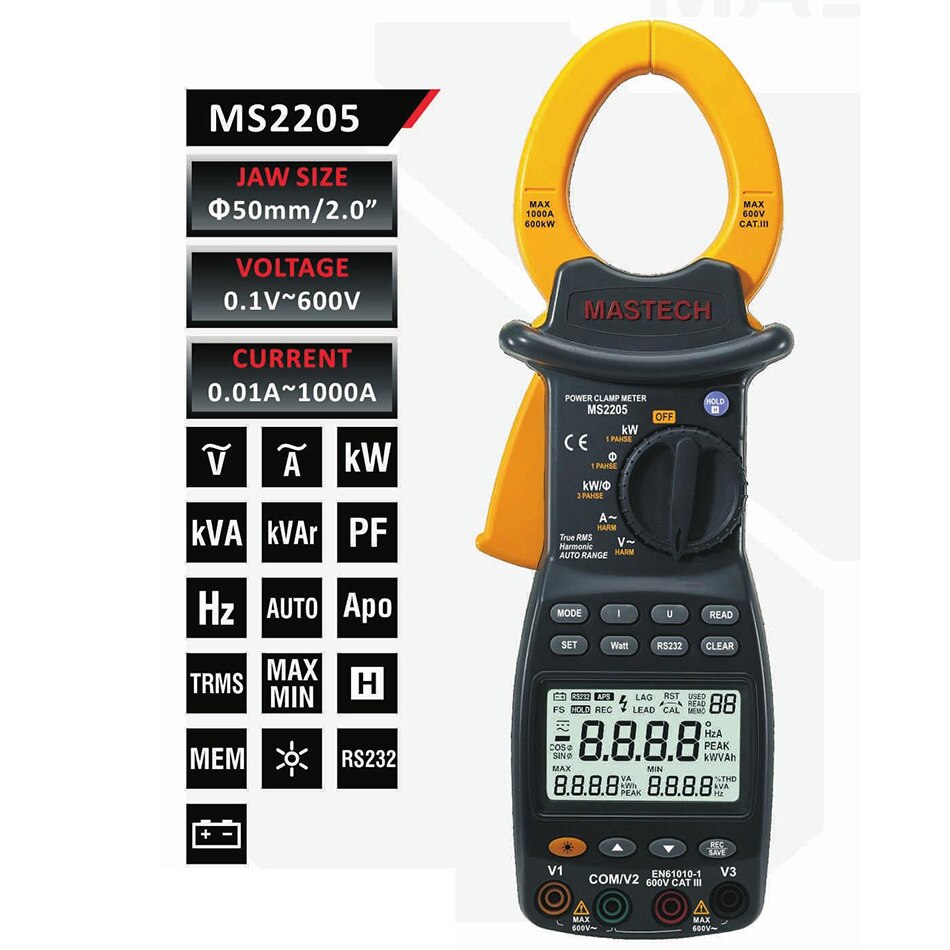

The 3-phase clamp-type digital power meter is a hand-held intelligent harmonic power tester, with both functions of digital current testing and power testing.

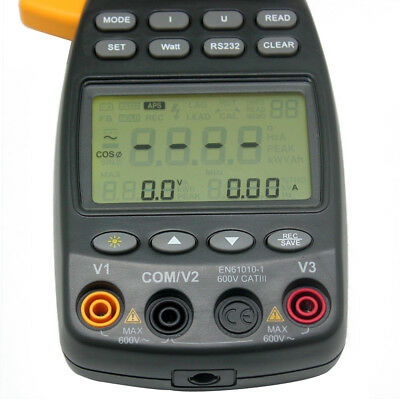

  • Large dual 6000 counts LCD display
  • Measures AC voltage, AC current, active power, apparent power, reactive power, power factor, frequency and harmonic
  • True RMS measurement
  • It is equipped with a large-size memory for saving up to 100 groups of test parameters
  • Low battery indication
  • Data hold and auto power off
  • RS232 interface and analysis software

Specification
AC Voltage 80V/180V/400V/600V +-(1.0%+5)
AC Current 20A/40A/100A/200A/450A/1000A +-(2.0%+5)
Active Power 30kW/60kW/120kW/150kW/300kW/600kW +-(3.0%+5)
Apparent Power 3kVA/12kVA/30kVA/120kVA/150kVA/600kVA +-(3.0%+5)
Reactive Power 3kVAr/12kVAr/30kVAr/120kVAr/150kVAr/600kVAr +-(3.0%+5)
Power Factor 0.3~1 +-(2.0%+2)
Harmonic Measurement 45Hz~65Hz (fundamental frequency) Harmonic Number:1 +-(3.0%+10)
Harmonic Number:2-6 +-(3.5%+10)
Harmonic Number:7-8 +-(4.5%+10)
Harmonic Number:9-10 +-(5.0%+10)
Harmonic Number:11-15 +-(7.0%+10)
Harmonic Number:16-20 +-(10%+10)

Downloads: user manual
