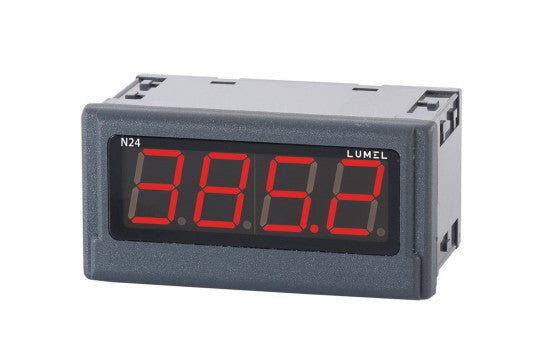

LUMEL N24-S Digital Indicator 4-digits red display, DC V, mA input

N24 series panel meters are destined for measurement of d.c. voltage or d.c. current, temperature from Pt100 sensors and J, K thermocouples, a.c. voltage and a.c. current.

• 4-digit LED display, digits of 20 mm high,
• Measuring ranges:
• -11 mV...-10 mV...60 mV...66 mV
• -66 mV...-60 mV...60 mV...66 mV
• -0.5 V...0 V...10 V...11 V
• -1 mA...0 mA...20 mA...22 mA
• 3.6 mA...4 mA...20 mA...22 mA
• possible configuration of parameters through the PD14 programmer and the free eCon software
  • precision of displayed results (decimal point),
  • measurement averaging time,
  • recounting of indications (individual characteristic),
  • automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N24T),
• supply: 85…253 V a.c./d.c. (20…24 V a.c./d.c., 110 V a.c., 230 V a.c. - available upon request)
• protection grade: IP65
• overall dimensions: 96 x 48 x 64 mm

Documentation

• N24H_N24S_N24T_N24Z_data_sheet
• N24H_N24S_N24T_N24Z_service_manual
