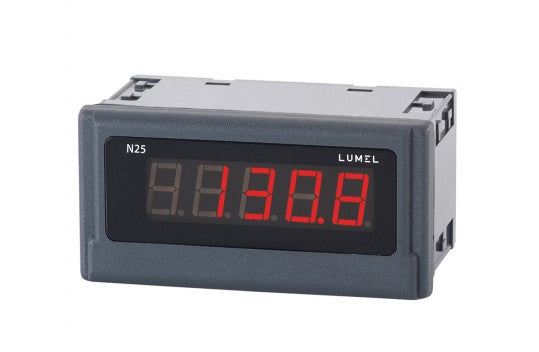

LUMEL N25-H Digital Indicator 5-digits display, up to 600 VDC, 6 ADC

LUMEL N25-H Digital Indicator 5-digits display, up to 600 VDC, 6 ADC

$ 139.00 CAD Sale

N25 series panel meters are destined for measurement of d.c. voltage or d.c. current, temperature from Pt100 sensors and J, K thermocouples, a.c. voltage and a.c. current.

  • 5-digit LED display, digits of 20 mm high,
  • Measuring ranges:
    • 0...100...110 V d.c
    • 0...250...275 V d.c
    • -120...-100...100...120 V d.c.
    • -300...-250...250...300 V d.c
    • -600...-400...400...600 V d.c
    • -1.2...-1...1...1.2 A d.c
    • -6...-5...5...6 A d.c
  • possible configuration of parameters through the PD14 programmer and the free eCon software
    • precision of displayed results (decimal point),
    • measurement averaging time,
    • recounting of indications (individual characteristic),
    • automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N24T),
  • supply: 85…253 V a.c./d.c. (20…24 V a.c./d.c., 110 V a.c., 230 V a.c. - available upon request)
  • protection grade: IP65
  • overall dimensions: 96 x 48 x 64 mm
