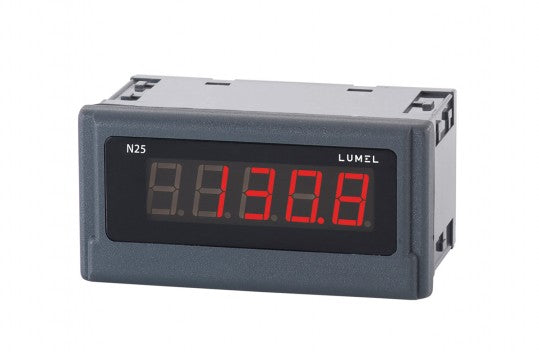

LUMEL N25-T Digital Indicator 5-digits red display, temperature inputs

LUMEL N25-T Digital Indicator 5-digits red display, temperature inputs

$ 139.00 CAD Sale

N25 series panel meters are destined for measurement of d.c. voltage or d.c. current, temperature from Pt100 sensors and J, K thermocouples, a.c. voltage and a.c. current.

  • 5-digit LED display, digits of 20 mm high,
  • Measuring ranges:
    • Pt 100 -50˚C...150˚C
    • Pt 100 -50˚C...400˚C
    • J type thermocouple -50˚C...1200˚C
    • K type thermocouple -50˚C...1370˚C
  • possible configuration of parameters through the PD14 programmer and the free eCon software
    • precision of displayed results (decimal point),
    • measurement averaging time,
    • recounting of indications (individual characteristic),
    • automatic or manual compensation: temperature of cold junction for measurements with thermocouples or wire resistance for Pt100 sensors (N24T),
  • supply: 85…253 V a.c./d.c. (20…24 V a.c./d.c., 110 V a.c., 230 V a.c. - available upon request)
  • protection grade: IP65
  • overall dimensions: 96 x 48 x 64 mm

Documentation
