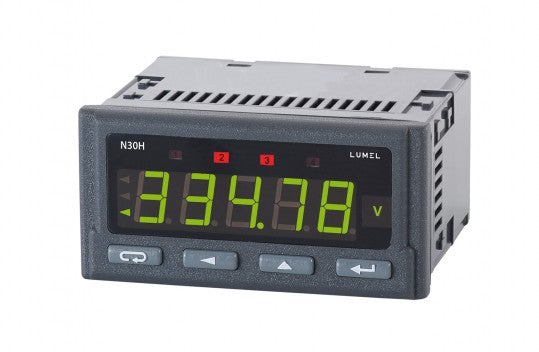

LUMEL N30H Programmable digital panel meter for DC current and voltage

• Input:
  •  d.c. current 6 A
  •  d.c. voltage 600 V
• Output: relay (4), analog (1), digital RS-485/MODBUS (1),
•  Three-color display – red, green and orange, programmable in three intervals of the  measured value – facilitates the observation of measured quantity changes.
  • digit height: 14 mm
  • highlighted measuring unit
• Four alarm outputs with signaling on LED diodes operating in 6 different modes,
• Conversion of any measured optional values into the analog signal 0/4…20 mA or 0…10 V,
• Storage of minimal and maximal values for all measured quantities,
• Meter programming from the keyboard or through RS-485 interface by means of the free eCon software.
  Parameters which can be reprogrammed:
  • display color, individually in three intervals,
  • thresholds of displayed overflows,
  • precision of displayed results (decimal point),
  • unit highlighting,
  • measurement averaging time,
  • indication recounting (individual characteristic),
  • alarm output parameters,
• Supply: 85…253 V a.c./d.c. or 20…40 V a.c./d.c.
• Casing protection grade: IP65
• Overall dimensions: 96 x 48 x 64 mm

Documentation:

• N30H_data_sheet
• N30H_service_manual_rev_A
