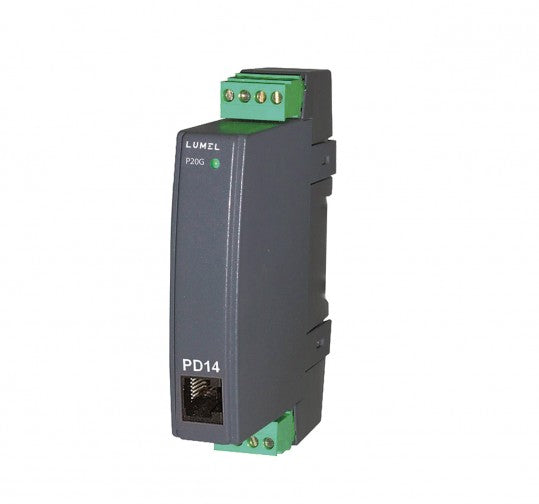

LUMEL P20G Programmable separator/transducer

LUMEL P20G Programmable separator/transducer

Regular price $168.00 Sale

P20G separator assures full galvanic isolation of the input, output and auxiliary supply and matching of analog signals in automation systems.

  • Input and output
    • current: -20...20mA
    • voltage: -10...10V
  • Fully configurable through the PD14 programmer and free eCon software.
    By means of the programmer, one can change the
    • input type,
    • output type,
    • measurement averaging time
    • recalibrate the analog output according to the output individual characteristic.
  • Accuracy class: 0,2.
  • Voltage supply:
    • 85...253 V a.c. (45...65Hz) d.c.
    • 20...40 V a.c. (45...65 Hz) d.c.
  • External dimension: 22.5 x 120 x 100mm
