PB-500 Portable Analog Circuit Trainer; CSA approved

PB-500 Portable Analog Circuit Trainer; CSA approved

Regular price $ 489.95 CAD Sale

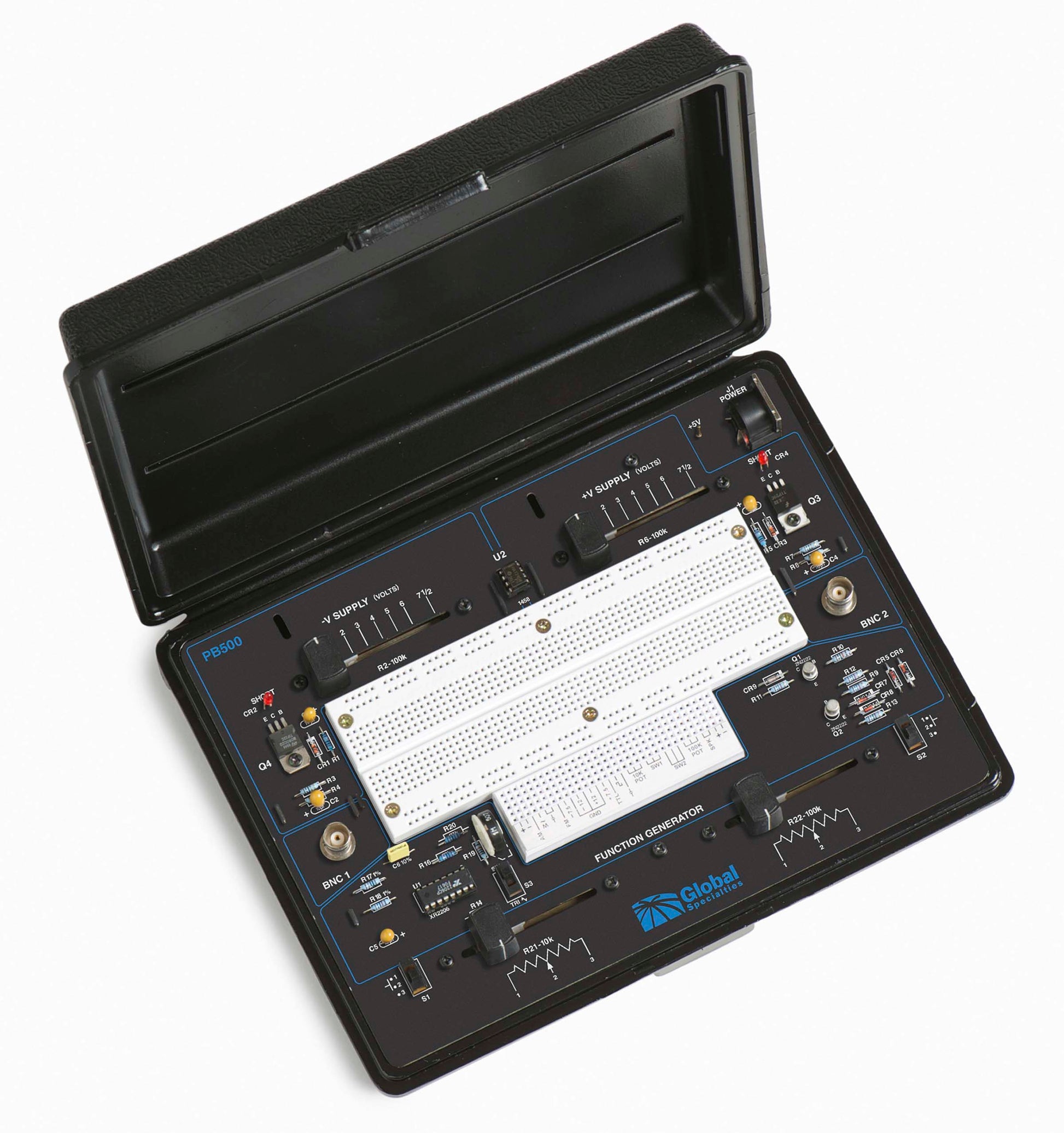

The PB-500 is a compact portable analog circuit design trainer with built-in power supplies and function generator. It can be used for analog circuit design and classroom training purposes and its unique combination of built-in functions and uncommitted devices makes it one of the most convenient breadboarding systems available. The trainer contains all of the functions required for studying and experimenting with active filters, operational amplifiers, and other analog circuitry. It is powered by a cUL-approved wall-mount power adapter (included).


  • Compact analog trainer
  • One UBS-100 breadboard with 840 tie-points and 8 power rails
  • Two slide pots: 10 kΩ & 100 kΩ
  • Two SPDT slide switches
  • Two BNC connectors
  • One speaker: 2", 8 Ω
  • Includes: Trainer, wall adapter, power cord, user manual
