PB-501: Portable Logic Design Trainer;  CSA approved

PB-501: Portable Logic Design Trainer; CSA approved

Regular price $ 389.95 USD Sale

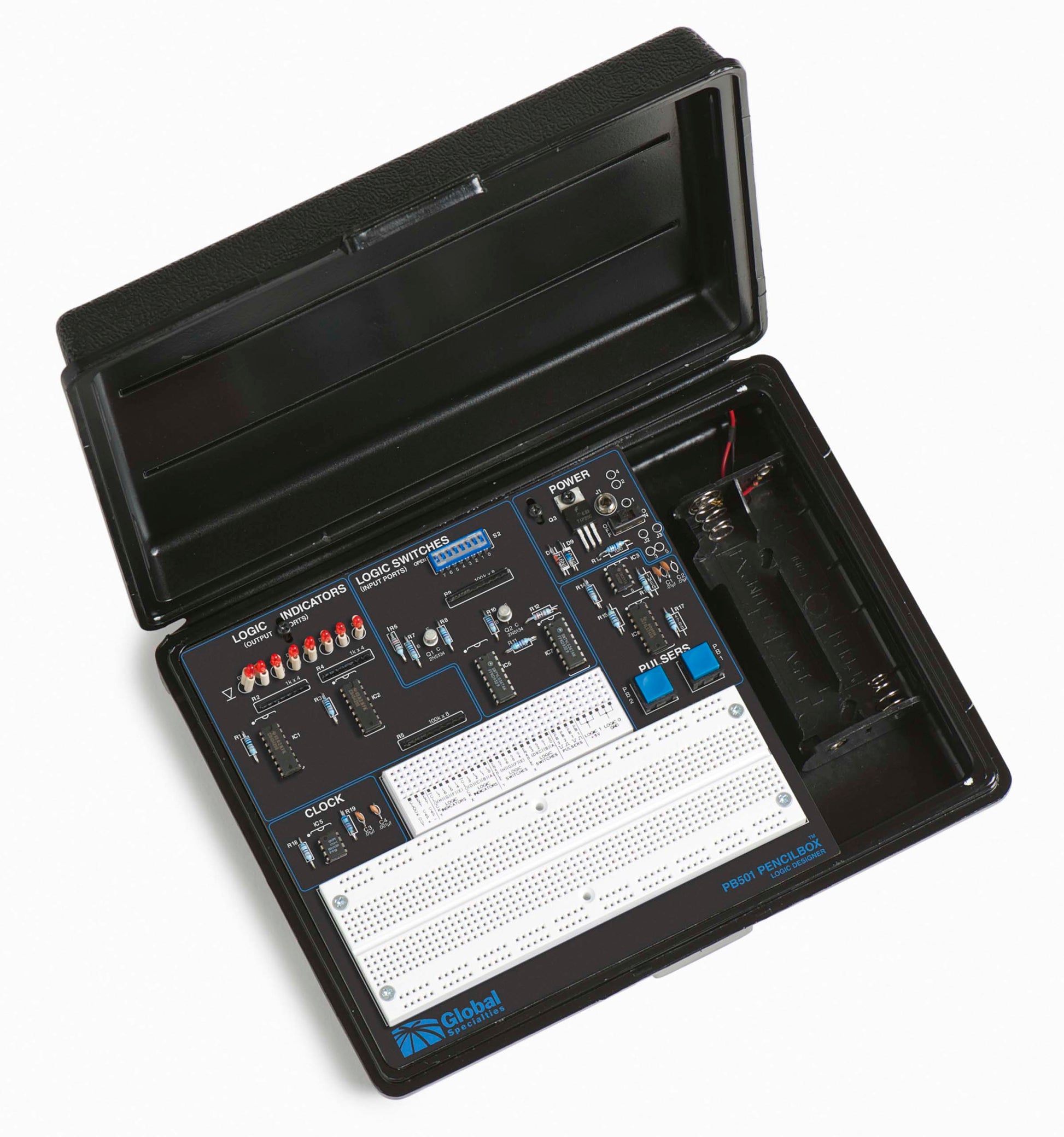

The PB-501 is a low cost portable trainer, which is capable of satisfying many requirements arising in the design and study of digital logic circuitry. The PB-501 can be powered-up via batteries, optional wall-mount power adapter, or by an external 5V power supply. The PB-501 can be utilized for the design and study of gates, counters, multiplexers and can even interface directly to a microprocessor. Housed in a tough molded plastic carrying case with an integral hinged cover, it stacks conveniently for storage.

Product Features

  • Eight dual-function LED logic indicators
  • Logic switches & input ports supplied
  • Output ports also supplied
  • UBS-100 breadboard with 840 tie-points
  • Clock output & two debounced logic pulsers
