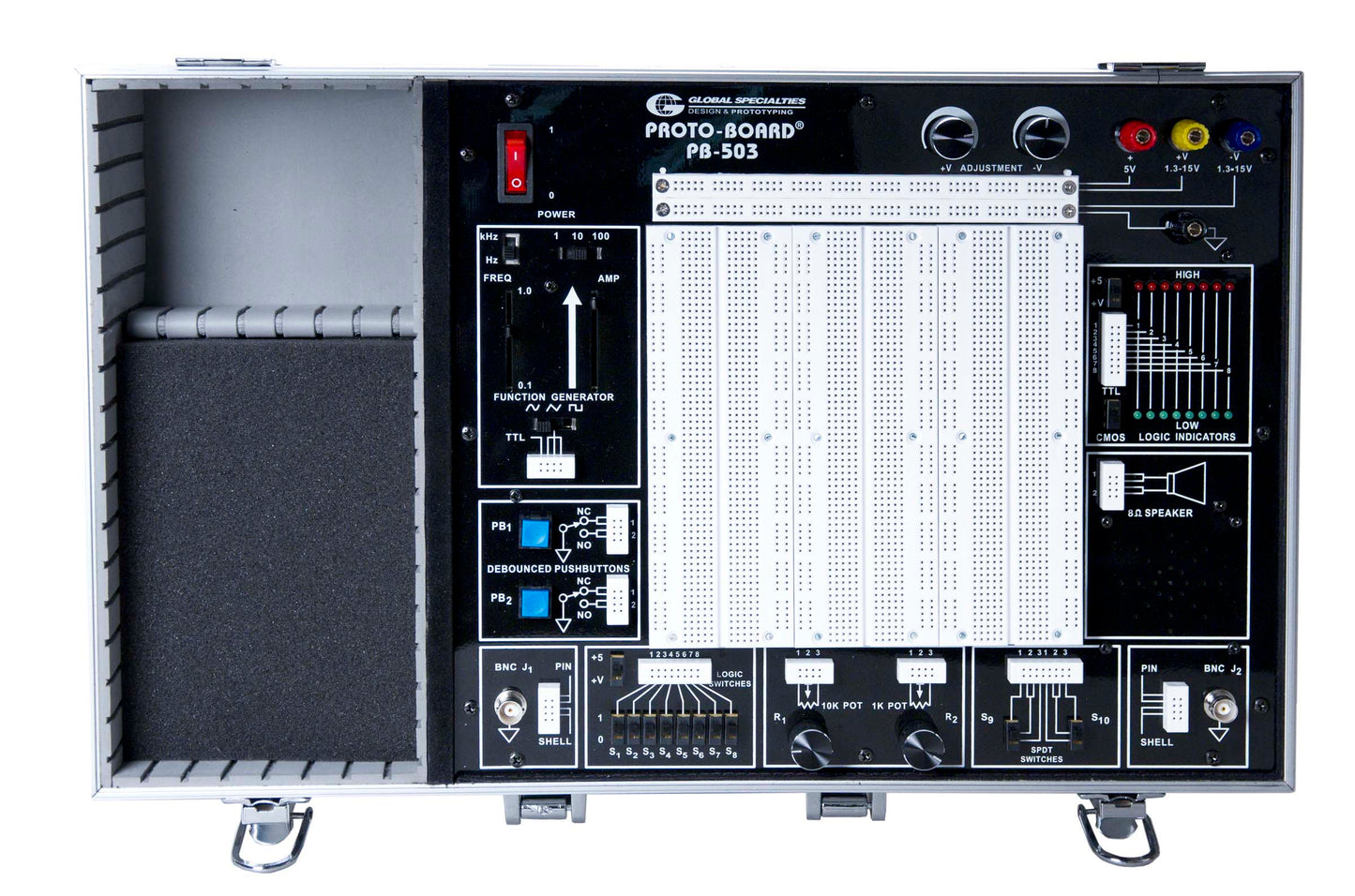

PB-503C: Portable Analog & Digital Design Trainer; CSA approved

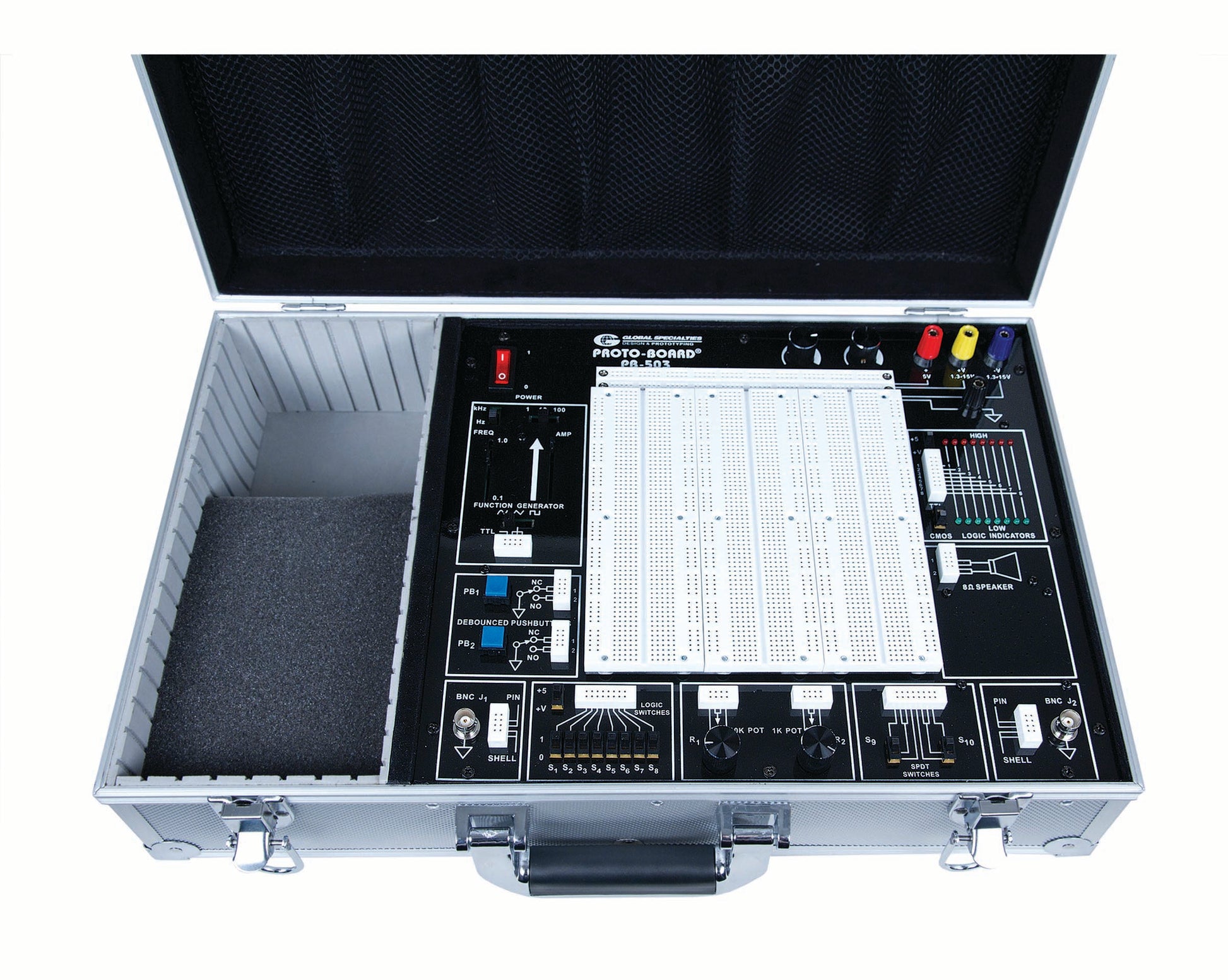

The PB-503C is the PB-503 mounted in a heavy-duty, portable, aluminum carrying case. The PB-503 is our time-tested workhorse designed for all levels of electronics instruction and prototyping. Utilizing the PB-503, students can create and implement their own circuits onto the breadboard, which is removable for multiple student usage in lab settings. For both series and parallel circuits, the PB-503 can also handle much more sophisticated multi-stage microcomputer circuits.

 Product Features

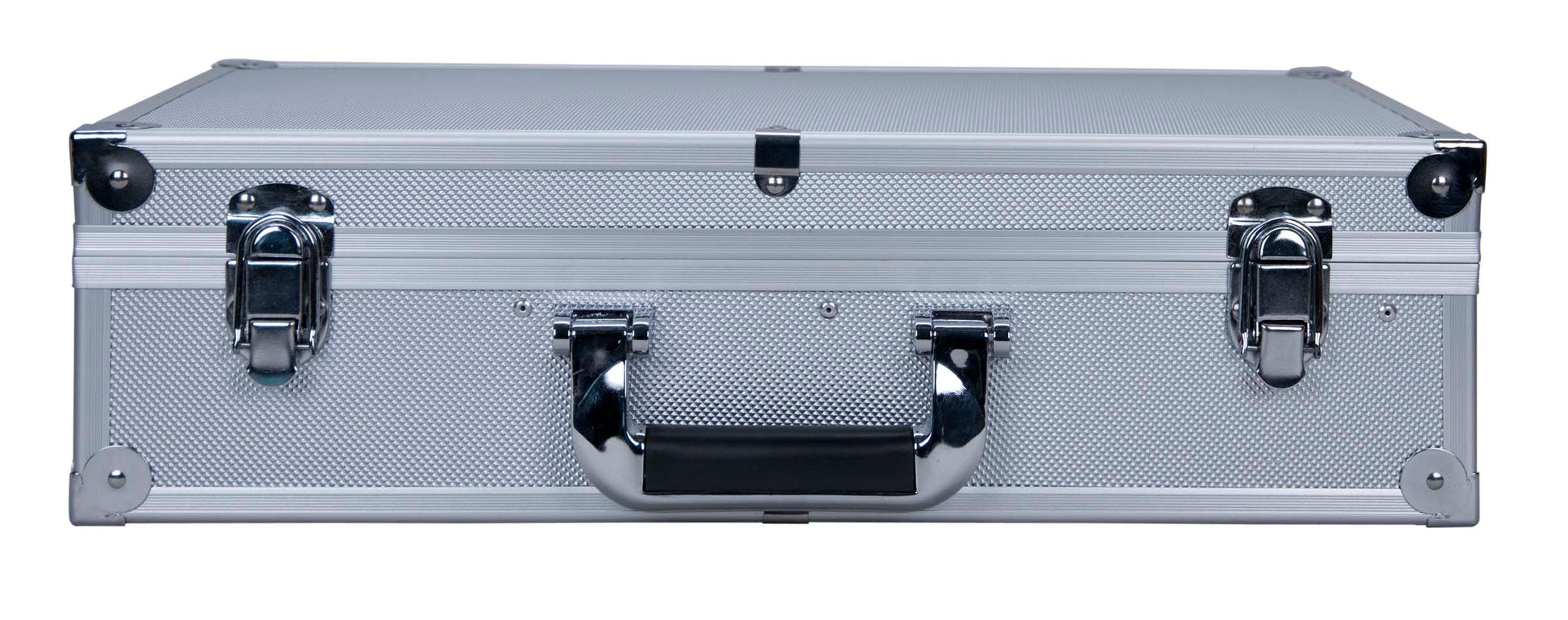

• Supplied with aluminum carrying case to provide additional protection, strength, and internal storage space
• Ideal for analog, digital, and microprocessor circuits
• Eight high & low buffered logic indicators
• Eight selectable logic switches
• Function generator with continuously variable sine, square, and triangle waveforms and TTL pulses
• Triple-output power supply offers fixed 5 VDC supply plus two variable outputs: ±1.3 to ±15 VDC
• Two digital pulsers
• Audio experimentation speaker
• Removable breadboard plate with additional plates available
