PB-507: Analog & Digital Electronic Design Trainer; CSA approved
PB-507: Analog & Digital Electronic Design Trainer; CSA approved
PB-507: Analog & Digital Electronic Design Trainer; CSA approved
PB-507: Analog & Digital Electronic Design Trainer; CSA approved

PB-507: Analog & Digital Electronic Design Trainer; CSA approved

Regular price $ 1,639.95 CAD Sale

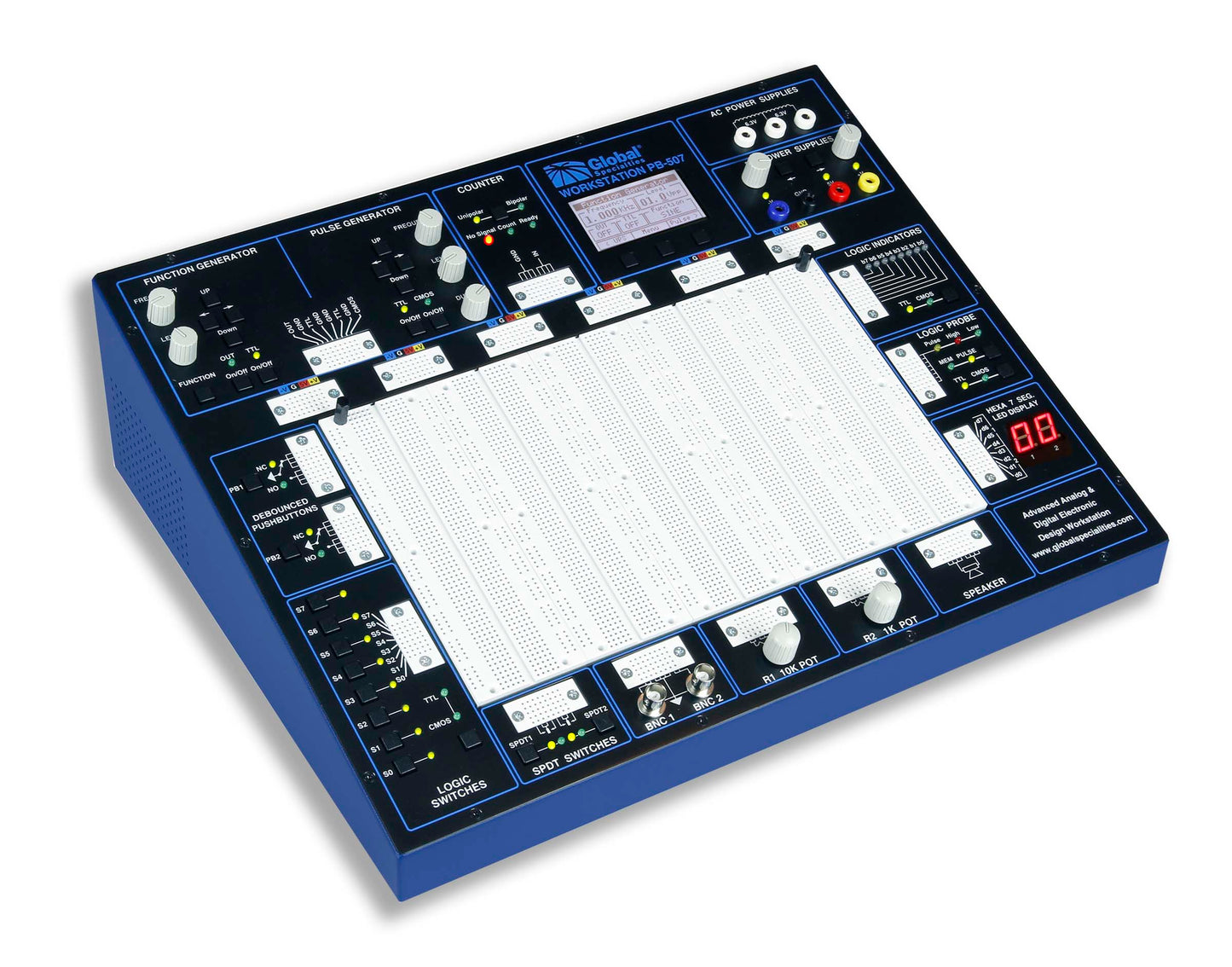

The PB-507 is a powerful, versatile tool for circuit designers, engineers, technicians, students, and hobbyists. With all digital controls, USB port, and a wide choice of built-in circuit accessories, the workstation allows for rapid and accurate construction of virtually any type of analog or digital circuit. Use the USB connection on the PB-507 and you can control or view the module’s values from a PC. Using this feature you can project the controls to a large viewing screen for your classroom to observe and follow along.

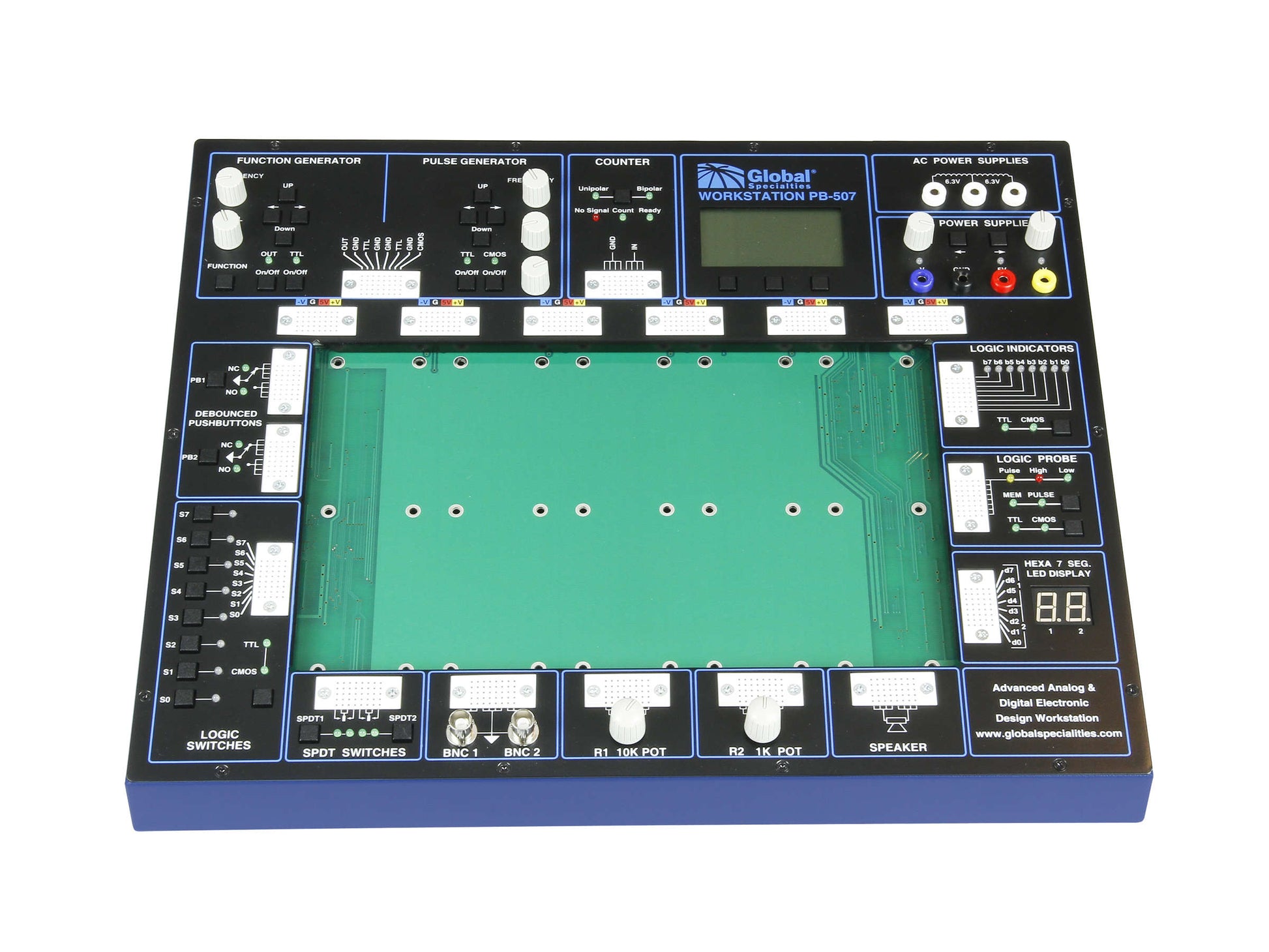

The PB-507 has an LCD that displays the settings for the active module selected. Simply touch a control element and the LCD switches to that module and displays its settings. The removable breadboard makes it easy for multiple students to share the PB-507 in a lab setting.



Product Features

  • Flush-mounted, removable circuit breadboard for multiple student lab usage
  • LCD displays the settings from each active module
  • USB connection enables viewing and controlling from a PC
  • Choose your power source: 6.3/12.6 VAC, 5 VDC or variable ±20 VDC
  • Draw power from banana plug connections or the tie-point power supplies above each breadboard bus strip
  • Powerful 1 MHz bandwidth function generator with sine, triangle, and square wave output
  • Pulse generator operates like a second, independent function generator enabled to modify the duty cycle between 1090%
  • Frequency counter module reports on the output of your own specially designed circuits
