Pin and Pinless functions measures moisture in wood and building materials (i.e. sheet rock, cardboard, plaster, concrete and mortar).

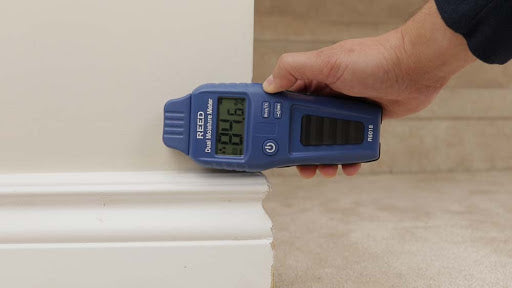

This dual function moisture meter is capable of detecting moisture in wood and building materials by pin or by running the instrument over the surface area (non-destructive method). The R6018 displays icons to indicate low, medium or high levels of moisture and an audible alert that increases in frequency as detected moisture level rises.
Features
- Pin and Pinless functions detect moisture in wood and building materials (sheet rock, cardboard, plaster, concrete and mortar)
- Pinless measurement depth up to 1" (25mm)
- Classifies moisture status as: low, medium and high
- Audible alert and Data Hold functions
- Built-in measurement verification and battery check
- Low battery indicator and auto shut-off
- Replaceable pins
Specifications
| Measuring Ranges |
Pin Mode: 5 to 50% (wood); 1.5-33% (building materials)
Pinless Mode: 0 to 99.9% (wood and building materials) |
| Depth Detection |
Pin mode: 0.3" (8mm)
Pinless mode: up to 1" (25mm) |
| Accuracy |
Pin Mode: ±(3% + 5 dgt.) |
| Resolution |
0.1% |
| Sensor Type |
Dual Function (Contact Pins/Pinless) |
| Display |
LCD Display |
| Data Hold |
Yes |
| Audible Alert Indicator |
Audible tone (increased intensity as moisture level rises) |
| Replaceable Pins |
Yes |
| Auto Shut-off |
Yes (after 2 mins) |
| Low Battery Indicator |
Yes |
| Power Supply |
9V Battery |
| Product Certifications |
CE |
| Operating Temperature |
41 to 113°F (5 to 45°C) |
| Storage Temperature |
32 to 122°F (0 to 50°C) |
| Operating Humidity Range |
0 to 80% |
| Dimensions |
6.7 x 2.6 x 1.2" (170 x 65 x 30mm) |
| Weight |
4.2 oz (120g) |
Included with the REED R6018
- R6018 Dual Moisture Meter
- Pins
- Protective Cap
- Battery
- CALIBRATION Certificate
