RDB-10: Resistance Decade Box
RDB-10: Resistance Decade Box
Couldn't load pickup availability
The RDB-10 is a handheld resistance decade box that creates a specific resistance value using a combination of switches. It offers 7 decades of resistance ranges, from 1 Ω to over 11 MΩ in 1 Ω steps. Easy-to-use slide switches allow for straightforward addition and subtraction of resistance values. The RDB-10 is a passive device that requires no power source. Housed in a rugged enclosure with an impact resistant rubber boot, the RDB-10 is a compact, convenient tool for engineering design and testing as well as calibration of test equipment.
Features
- Calibrate test equipment with its high accuracy of 1%
- 28 switches organized in a clean 4 x 7 grid for easy use
- All switches clearly display a visible white dot when in the ON position

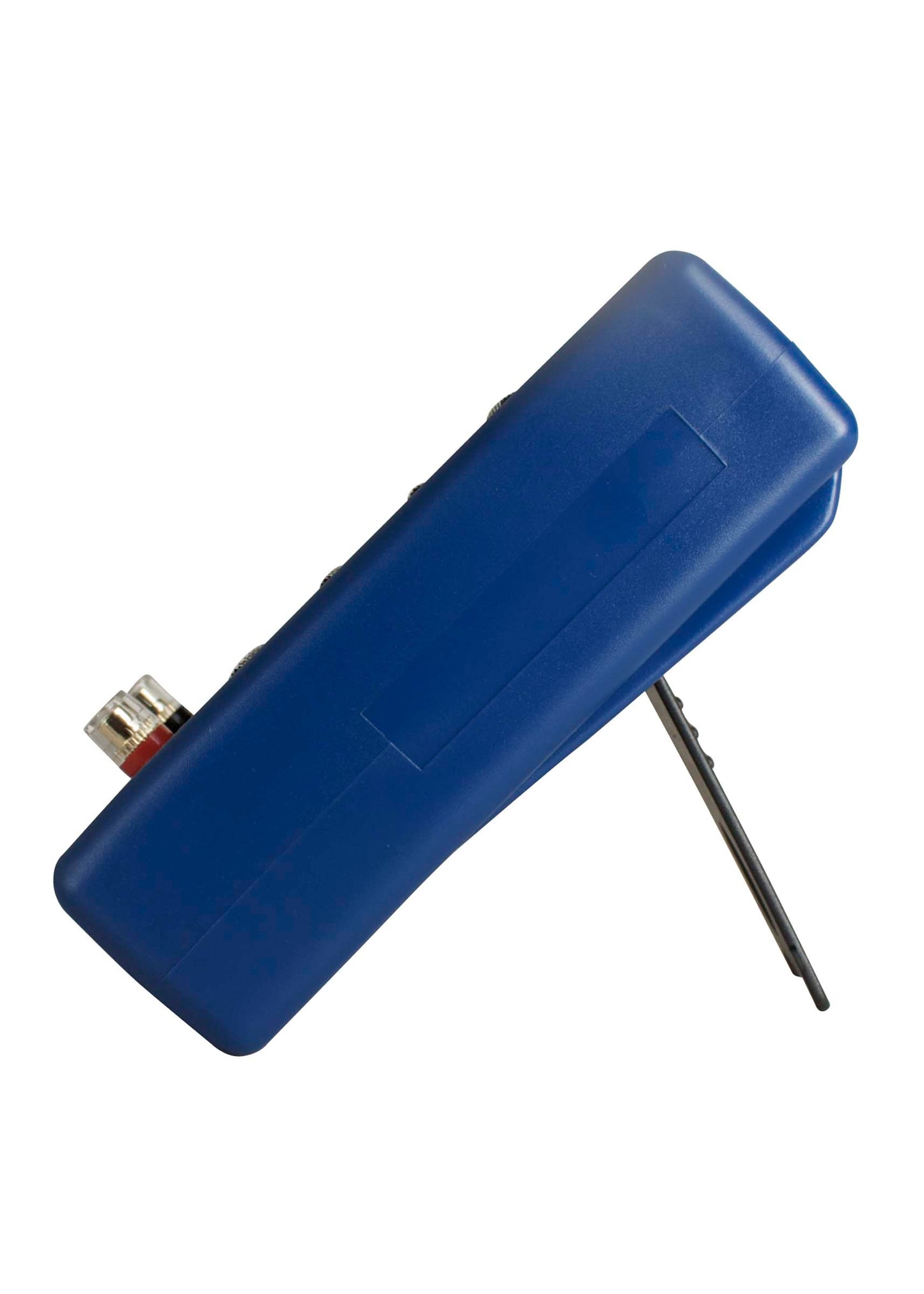

- Includes a protective rubber holster with tilt-stand for ease of use and viewing
- Ideal for service, prototype and experimental and educational use
- Input terminals accept standard banana plugs, bare wires, spade lugs or alligator clip
Specifications
- Resistance 1 Ω to 11 MΩ in 1 Ω steps
- Internal Resistance 0.3 Ω
- Power 1 W resistors
- Connection 2 binding posts
- Accuracy 1 %
- Operating Conditions Temperature 32 to 122°F (0 to 50°C)
- Humidity Less than 80%RH
- Dimensions 6 x 3.7 x 1.9 in
- Weight 0.95 lbs
- Warranty 1 Year
