Quick responding, capable of measuring ferrous and non-ferrous substrates.
This coating thickness gauge includes ferrous and non-ferrous probes and features a zero button for quick adjustment in the field. The CM-8822 has a easy-to-read LCD display and basic accuracy of 3%.
Features
- Measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates
- User selectable µm/mils
- Probe allows for readings in tight spaces
- Easy-to-read LCD display
- Automatic probe recognition
- Zero adjustment button
- Automatic calibration
- Low battery indicator
REED CM-8822 Specifications
| Measuring Range |
0 to 40mils (0 to 1000µm) |
| Accuracy |
<100µm: ±2µm
>100µm: ±3% of rdg. |
| Resolution |
0.1µm (0 to 99.9µm)
1µm (<100µm) |
| Sampling Time |
1 second |
| Display |
LCD |
| Zero Button |
Yes |
| Length of Probes |
3' (36") |
| Power Supply |
4 x AA Batteries |
| Low Battery Indicator |
Yes |
| Product Certifications |
CE |
| Operating Temperature |
32 to 104°F (0 to 40°C) |
| Storage Temperature |
-4 to 140°F (-20 to 60°C) |
| Operating Humidity Range |
20 to 90% |
| Dimensions |
6.3 x 2.7 x 1.25" (161 x 69 x 32mm) |
| Weight |
9oz (260g) |

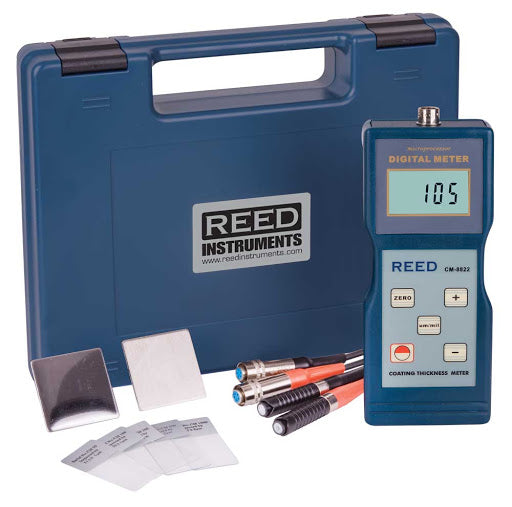

Included with the REED CM-8822
- Coating Thickness Gauge
- Ferrous Probe
- Non-Ferrous Probe
- Calibration Standards
- Battery
- Hard Carrying Case
- CALIBRATION certificate
