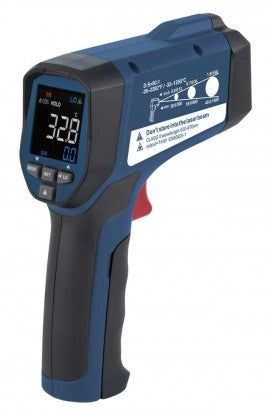

REED R2330 Infrared Thermometer 50:1, 2282°F (1250°C)
REED R2330 Infrared Thermometer 50:1, 2282°F (1250°C)
Couldn't load pickup availability
Dual lasers assist with target area identification and allow for precise temperature measurements to meet the needs of industrial, electrical and HVAC/R professionals.
This infrared thermometer features a 50:1 distance to spot ratio that allows users to accurately measure smaller areas from a greater distance. The R2330 has the ability to track maximum, minimum, average and differential readings and includes a bright color display for ease of use in both sunlight and dimly lit environments. Tri-color LEDs quickly indicate when temperatures are within set parameters (green), above (red) or below (blue).
Features
- Built-in laser pointer identifies target area
- User selectable °F or °C
- 50:1 Distance to Spot size ratio
- Bright color display (EBTN)
- Digitally adjustable emissivity
- Max, Min, Average and Differential readings
- Audible (beep) and visual (tri-color LED) user adjustable alarms
- Internal memory stores up to 5 pre-set high & low alarms and 5 emissivity settings
- Trigger lock and tripod mount for continuous monitoring
- Low battery indication and auto shut off
Specifications
| Temperature Range | -26 to 2282°F (-32 to 1250°C) |
| Accuracy | Basic: ±1.8% of reading or 3.6°F (1.8°C) Detailed: ≥0°C: ±1.8°C or ±1.8% of reading, whichever is greater <0°C: ±(1.8°C+0.1°C/°C) ≥32°F: ±3.6°F or ±1.8% of reading, whichever is greater, <32°F: ±(3.6°F+0.1°F/°F) |
| Resolution | 0.1°F (0.1°C) |
| Optical Resolution (D:S) | 50:1 |
| Repeatability | 0.8°C or 0.8%, whichever is greater (1.8°F or 0.8%, whichever is greater) |
| Dual Laser | Yes |
| Spectral Response | 8 to 14μm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 250ms |
| Backlit Display | Yes (Color EBTN) |
| Display Hold | Yes |
| High/Low Alarms | Yes (audible and visual) |
| Alarm Indicators | LED (High: Red, Low: Blue) |
| Max/Min | Yes |
| Average and Differential | Yes |
| F/C Switchable | Yes |
| Trigger Lock | Yes |
| Internal Memory | Yes |
| Tripod Mountable | Yes |
| Laser Class | Class II |
| Low Battery Indicator | Yes |
| Power Supply | 9V Battery |
| Battery Life | Approx. 10 hours (with continuous use, backlight on) |
| Product Certifications | CE, RoHS |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Maximum Operating Altitude | 6561' (2000m) |
| Maximum Storage Altitude | 39370' (12000m) |
| Dimensions | 7 x 4.98 x 2" (179 x 126.5 x 53mm) |
| Weight | 10.95oz (310g) |
