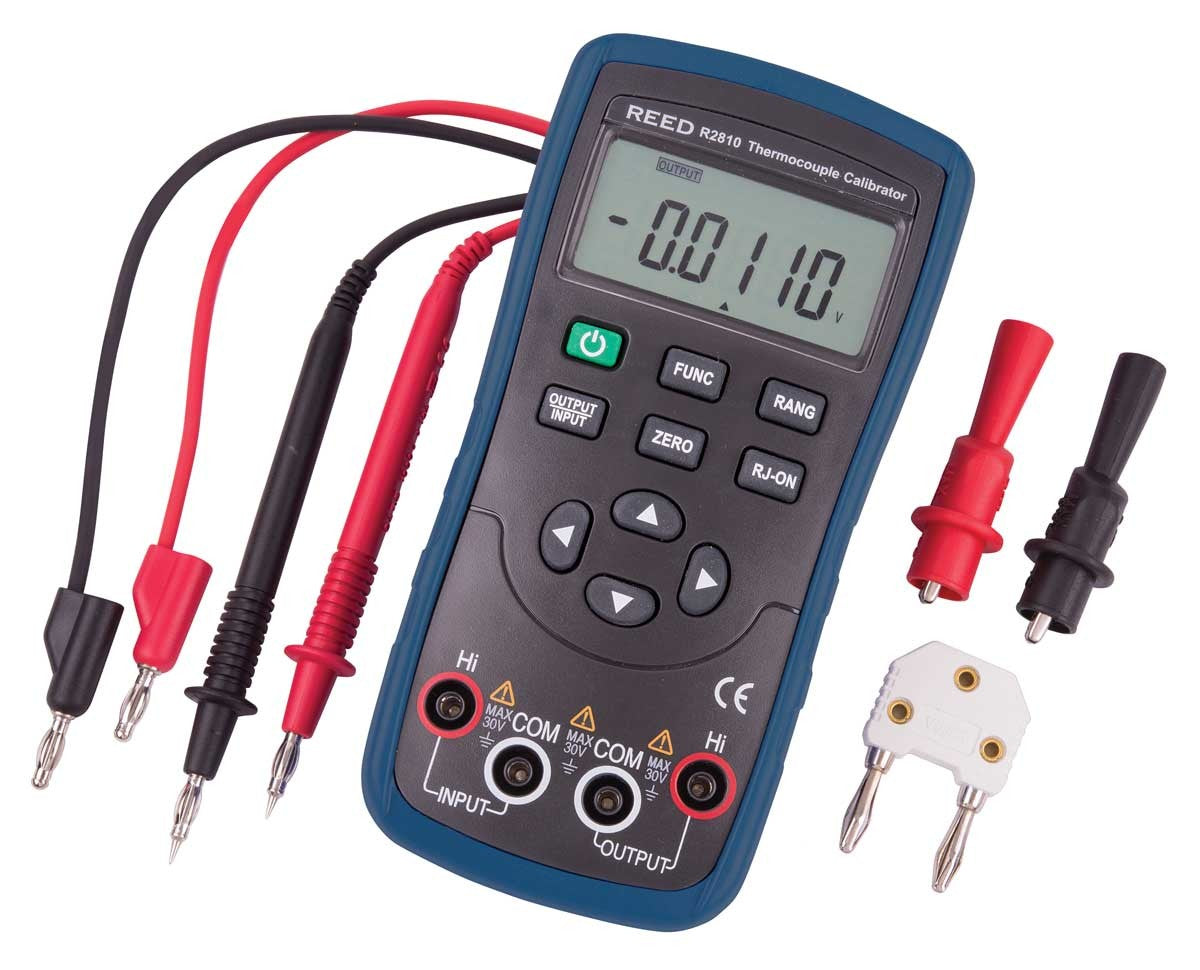

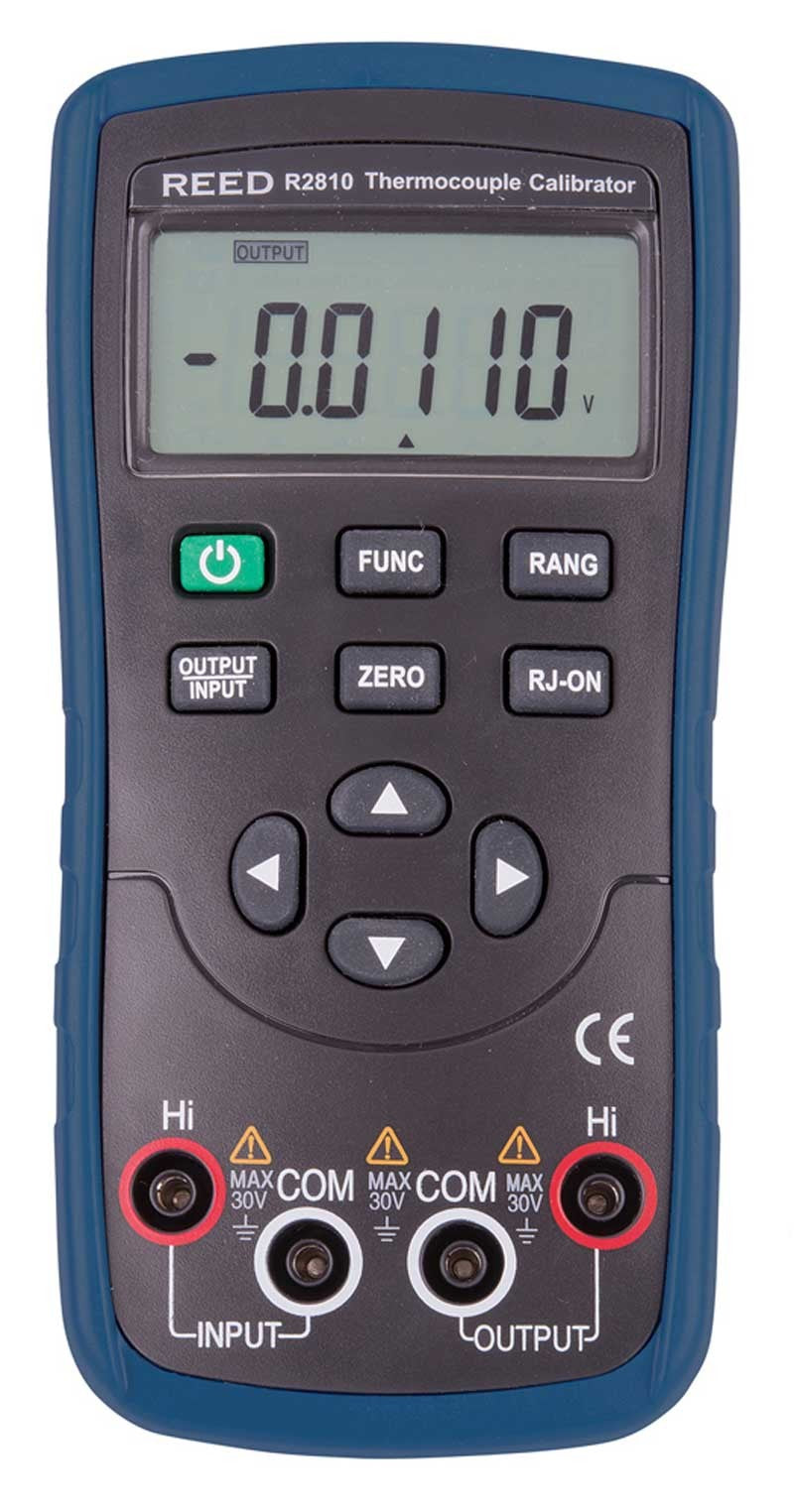

REED R2810 Thermocouple Calibrator
REED R2810 Thermocouple Calibrator

REED R2810 Thermocouple Calibrator

Regular price $ 538.00 CAD Sale

This thermocouple calibrator is capable of sourcing and measuring 8 different types of thermocouples. The R2810 features a easy-to-read LCD display, basic accuracy of 0.05% and includes the essentials to test and calibrate your temperature sensors.

Features

  • Source and measure 8 thermocouple types, including R, S, B, E, K, J, T, N; and volts
  • Basic accuracy of 0.05%
  • Internal cold junction compensation
  • Easy to read 6-digit LCD display
  • Zero adjustment button
  • User selectable unit of measure (°F/°C)
  • Low battery indicator and auto shut off

Specifications

Measure Function
Output Range Output Range Resolution Accuracy
DCV 100mV -10 to 110mV 0.01mV 0.05% rdg. +30mV
TC R -40 to 1760°C 1°C ±0.05% rdg. +3°C (≤100°C);
±0.05% rdg. +2°C (>100°C)
S -20 to 1760°C 1°C
B 400 to 1800°C 1°C ±0.05% rdg. +3°C (400 to 600°C);
±0.05% rdg. +2°C (>600°C)
E -200 to 1000°C 0.1°C ±0.05% rdg. +2°C (≤-100°C);
±0.05% rdg. +1°C (>-100°C)
K -200 to 1370°C 0.1°C
J -200 to 1200°C 0.1°C
T -200 to 400°C 0.1°C
N -200 to 1300°C 0.1°C

Source Function
Output Range Output Range Resolution Accuracy
DCV 100mV -10 to 110mV 0.01mV 0.05% rdg. +30mV
1V -0.1 to 1.1V 0.1mV 0.05% rdg. +0.3mV
TC R -40 to 1760°C 1°C ±0.05% rdg. +3°C (≤100°C);
±0.05% rdg. +2°C (>100°C)
S -20 to 1760°C 1°C
B 400 to 1800°C 1°C ±0.05% rdg. +3°C (400 to 600°C);
±0.05% rdg. +2°C (>600°C)
E -200 to 1000°C 0.1°C ±0.05% rdg. +2°C (≤-100°C);
±0.05% rdg. +1°C (>-100°C)
K -200 to 1370°C 0.1°C
J -200 to 1200°C 0.1°C
T -200 to 400°C 0.1°C
N -200 to 1300°C 0.1°C
General Specifications
Display 6-Digit LCD
Zero Adjustment Button Yes
Kick Stand Yes
Power Supply 2 AA Batteries
Cold Junction Compensation Yes
Auto shut off Yes (after 15 mins/off)
Low Battery Indicator Yes
Replaceable Test Leads Yes
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Humidity Range 0 to 85%
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 7.1 x 3.5 x 1.9" (180 x 90 x 47mm)
Weight 8.2oz (500g)
