REED R2810 Thermocouple Calibrator with ISO Certificate – Duncan Instruments Canada Ltd
REED R2810 Thermocouple Calibrator with ISO Certificate
REED R2810 Thermocouple Calibrator with ISO Certificate
REED R2810 Thermocouple Calibrator with ISO Certificate

REED R2810 Thermocouple Calibrator with ISO Certificate

Regular price $568.00 Sale

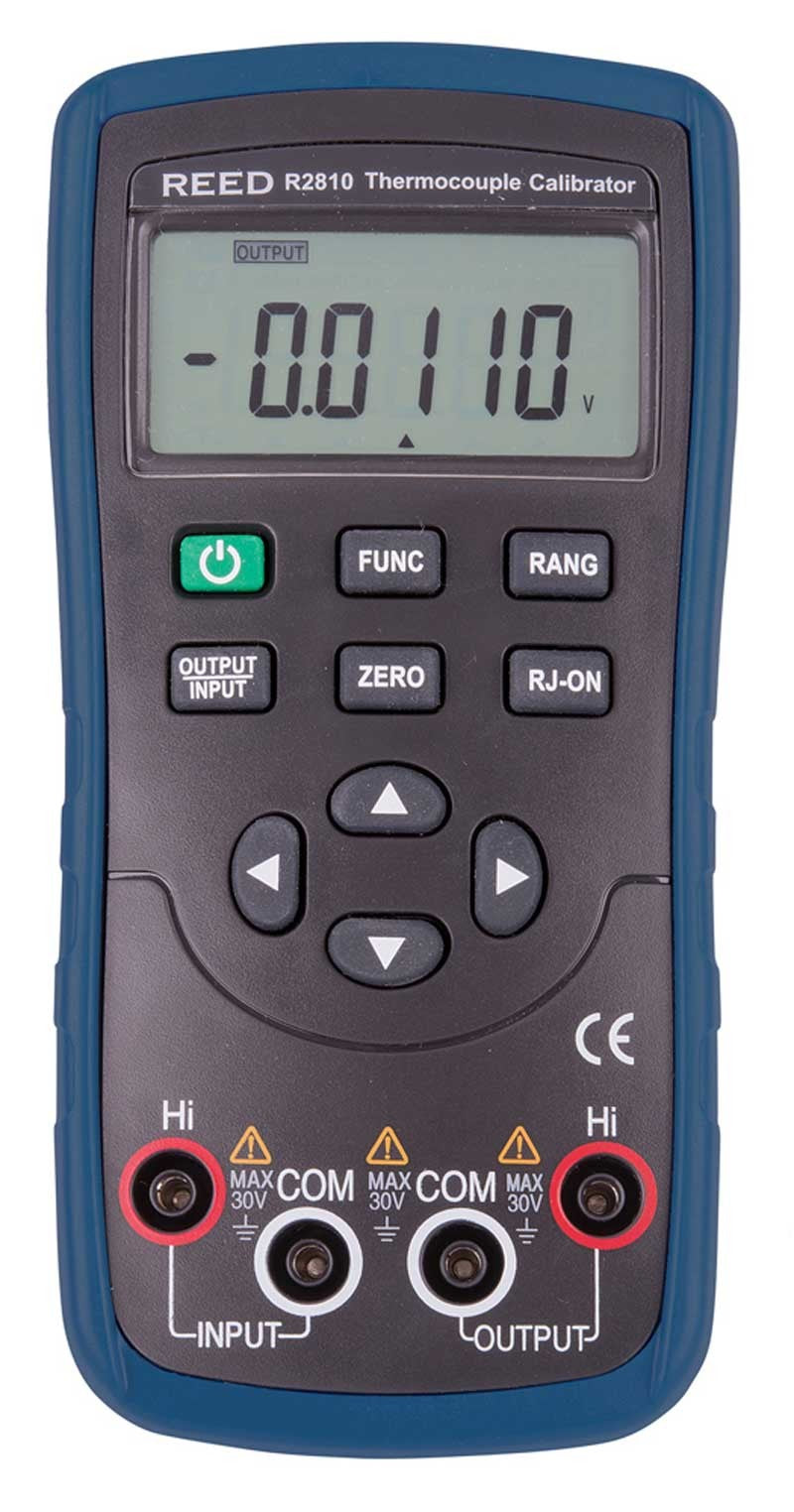

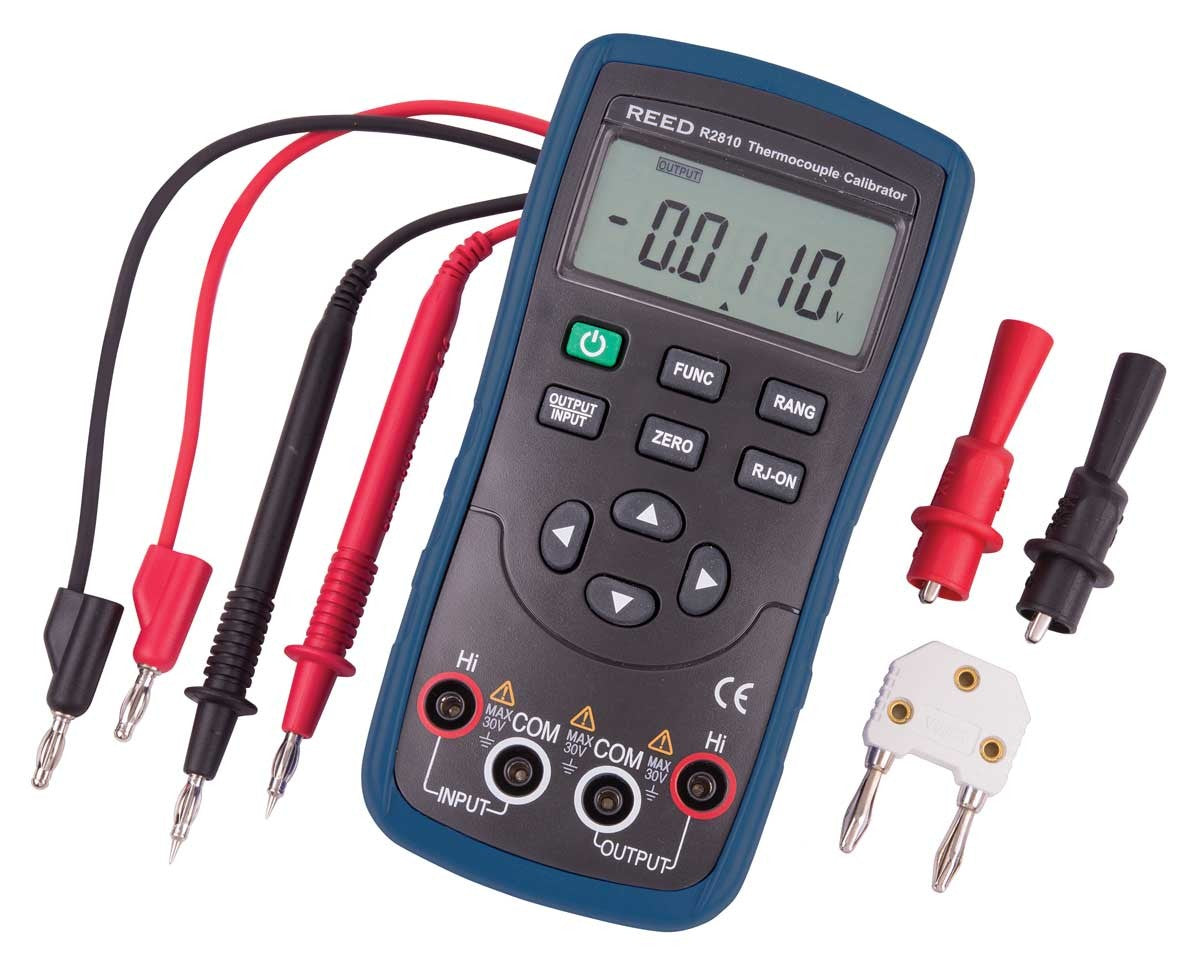

This thermocouple calibrator is capable of sourcing and measuring 8 different types of thermocouples. The R2810 features a easy-to-read LCD display, basic accuracy of 0.05% and includes the essentials to test and calibrate your temperature sensors.

Features

  • Source and measure 8 thermocouple types, including R, S, B, E, K, J, T, N; and volts
  • Basic accuracy of 0.05%
  • Internal cold junction compensation
  • Easy to read 6-digit LCD display
  • Zero adjustment button
  • User selectable unit of measure (°F/°C)
  • Low battery indicator and auto shut off

Specifications

Measure Function
Output Range Output Range Resolution Accuracy
DCV 100mV -10 to 110mV 0.01mV 0.05% rdg. +30mV
TC R -40 to 1760°C 1°C ±0.05% rdg. +3°C (≤100°C);
±0.05% rdg. +2°C (>100°C)
S -20 to 1760°C 1°C
B 400 to 1800°C 1°C ±0.05% rdg. +3°C (400 to 600°C);
±0.05% rdg. +2°C (>600°C)
E -200 to 1000°C 0.1°C ±0.05% rdg. +2°C (≤-100°C);
±0.05% rdg. +1°C (>-100°C)
K -200 to 1370°C 0.1°C
J -200 to 1200°C 0.1°C
T -200 to 400°C 0.1°C
N -200 to 1300°C 0.1°C

Source Function
Output Range Output Range Resolution Accuracy
DCV 100mV -10 to 110mV 0.01mV 0.05% rdg. +30mV
1V -0.1 to 1.1V 0.1mV 0.05% rdg. +0.3mV
TC R -40 to 1760°C 1°C ±0.05% rdg. +3°C (≤100°C);
±0.05% rdg. +2°C (>100°C)
S -20 to 1760°C 1°C
B 400 to 1800°C 1°C ±0.05% rdg. +3°C (400 to 600°C);
±0.05% rdg. +2°C (>600°C)
E -200 to 1000°C 0.1°C ±0.05% rdg. +2°C (≤-100°C);
±0.05% rdg. +1°C (>-100°C)
K -200 to 1370°C 0.1°C
J -200 to 1200°C 0.1°C
T -200 to 400°C 0.1°C
N -200 to 1300°C 0.1°C
General Specifications
Display 6-Digit LCD
Zero Adjustment Button Yes
Kick Stand Yes
Power Supply 2 AA Batteries
Cold Junction Compensation Yes
Auto shut off Yes (after 15 mins/off)
Low Battery Indicator Yes
Replaceable Test Leads Yes
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Operating Humidity Range 0 to 85%
Storage Temperature 14 to 122°F (-10 to 50°C)
Dimensions 7.1 x 3.5 x 1.9" (180 x 90 x 47mm)
Weight 8.2oz (500g)
