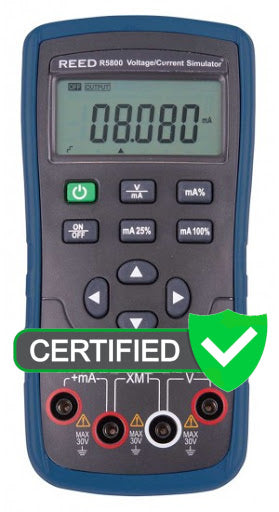

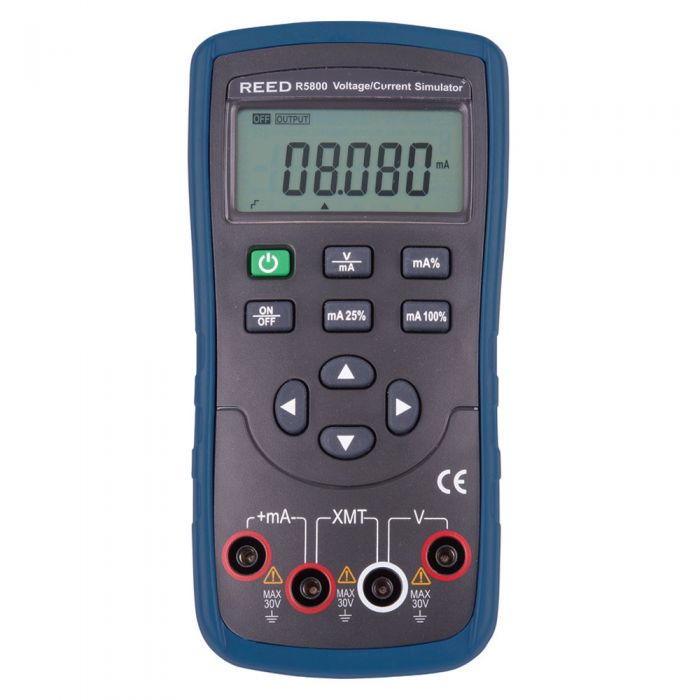

This voltage/current simulator is capable of sourcing voltage and current. The R5800 features an easy-to-read 5-digit LCD display, protective boot and kickstand.
Features
- Sources voltage and current
- 5-digit LCD display
- Automatic calibration
- Low battery indicator and auto shut off
Specifications
| DC Voltage |
| Range |
10V |
| Output Range |
0.000 to 11.000V |
| Resolution |
1mV |
| Accuracy |
±0.05% of set value ±2mV |
| DC Current |
| Range |
20mA |
| Output Range |
0.000 to 2.000mA |
| Resolution |
0.001mA |
| Accuracy |
±0.05% of set value ±4μA |
| Analog Transducer |
| Range |
-20mA |
| Output Range |
0.000 to-22.000mA |
| Resolution |
0.001mA |
| Accuracy |
±0.05% of set value ±4μA |
| Loop Power |
| Range |
24V |
| Accuracy |
±10% |
| General Specifications |
| Display |
5-Digit LCD |
| Kick Stand |
Yes |
| Battery Life |
Approx. 20 hours |
| Power Supply |
2 AA Batteries |
| Auto shut off |
Yes (after 15 mins/off) |
| Low Battery Indicator |
Yes |
| Replaceable Test Leads |
Yes |
| Product Certifications |
CE |
| Operating Temperature |
32 to 122°F (0 to 50°C) |
| Operating Humidity Range |
0 to 85% |
| Storage Temperature |
14 to 122°F (-10 to 50°C) |
| Dimensions |
7.1 x 3.5 x 1.9" (180 x 90 x 47mm) |
| Weight |
8.2oz (500g) |

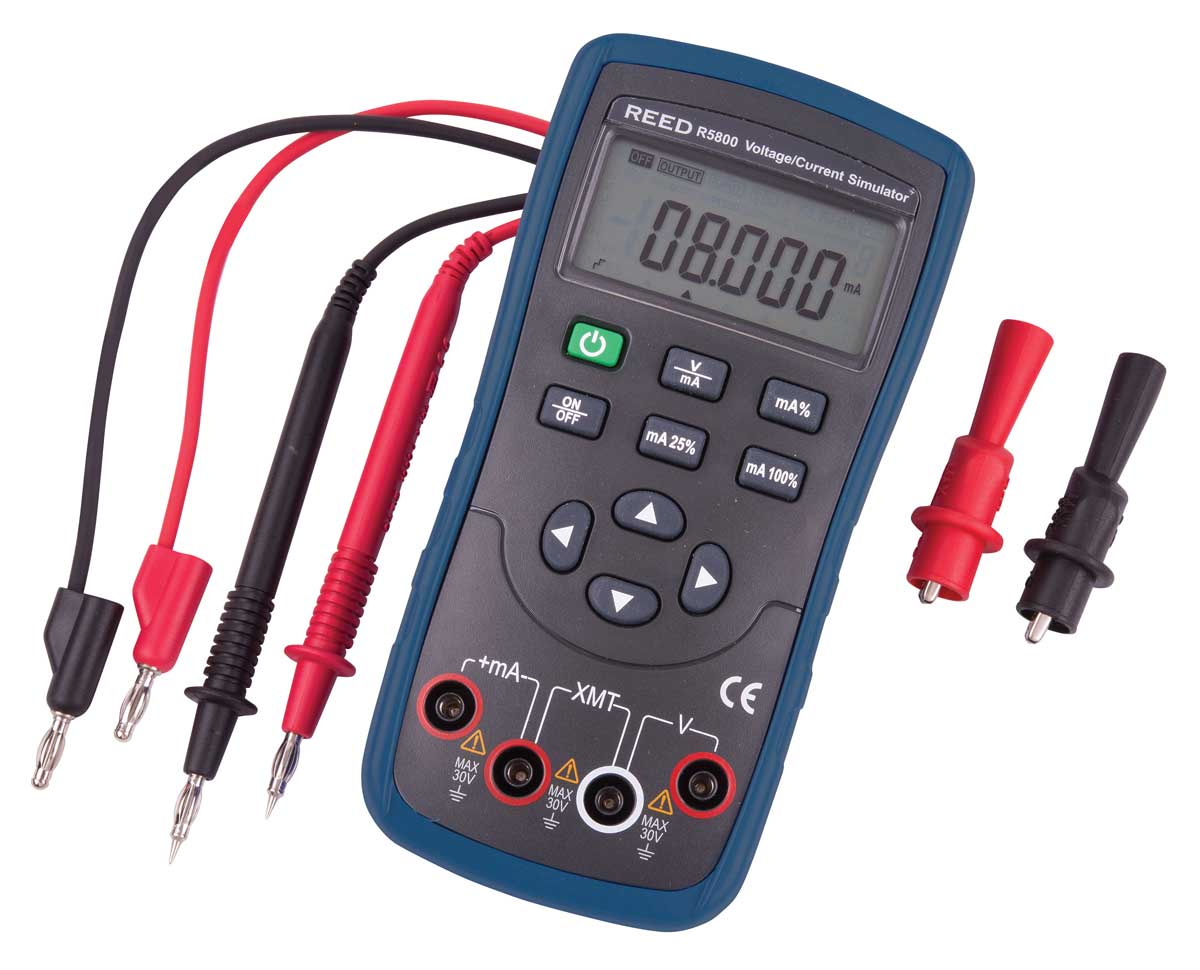

Included with the REED R5800
- Voltage/Current Simulator
- Test leads
- Alligator clips
- Protective holster
- Batteries
- CALIBRATION Certificate
