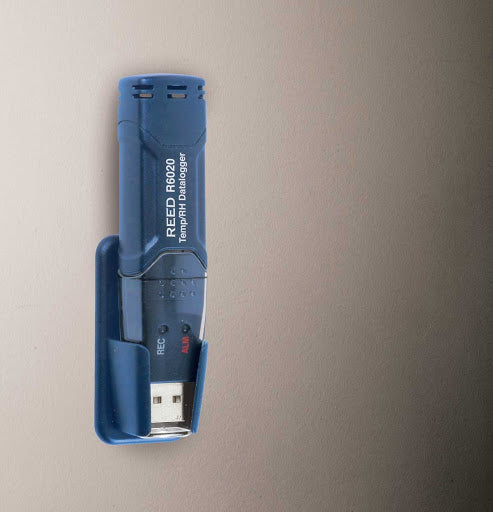

REED R6020 Temperature & Humidity USB Data Logger with ISO certificate
REED R6020 Temperature & Humidity USB Data Logger with ISO certificate
Regular price
$ 411.00 CAD
Regular price
Sale price
$ 411.00 CAD
Quantity
Couldn't load pickup availability
Record up to 16,000 ambient temperature and 16,000 relative humidity readings.
This compact datalogger records up to 32,000 temperature and relative humidity readings. Simply plug the R6020 directly into a computer to setup parameters (sampling rate, min/max alarms) and disconnect to begin recording. Once data collection is complete, connect again via USB to download to included software for analysis.
Features
- Stores up to 16,000 temperature and 16,000 humidity readings

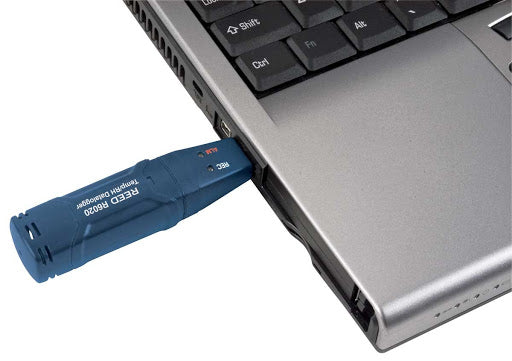

- Simply plug into the USB port to begin downloading - no cables or wires required
- User selectable sampling rate from 2 secs to 24 hrs
- Visible alarm (LED) if set max/min values are exceeded
- Compatible with Windows 7, 8 and 10

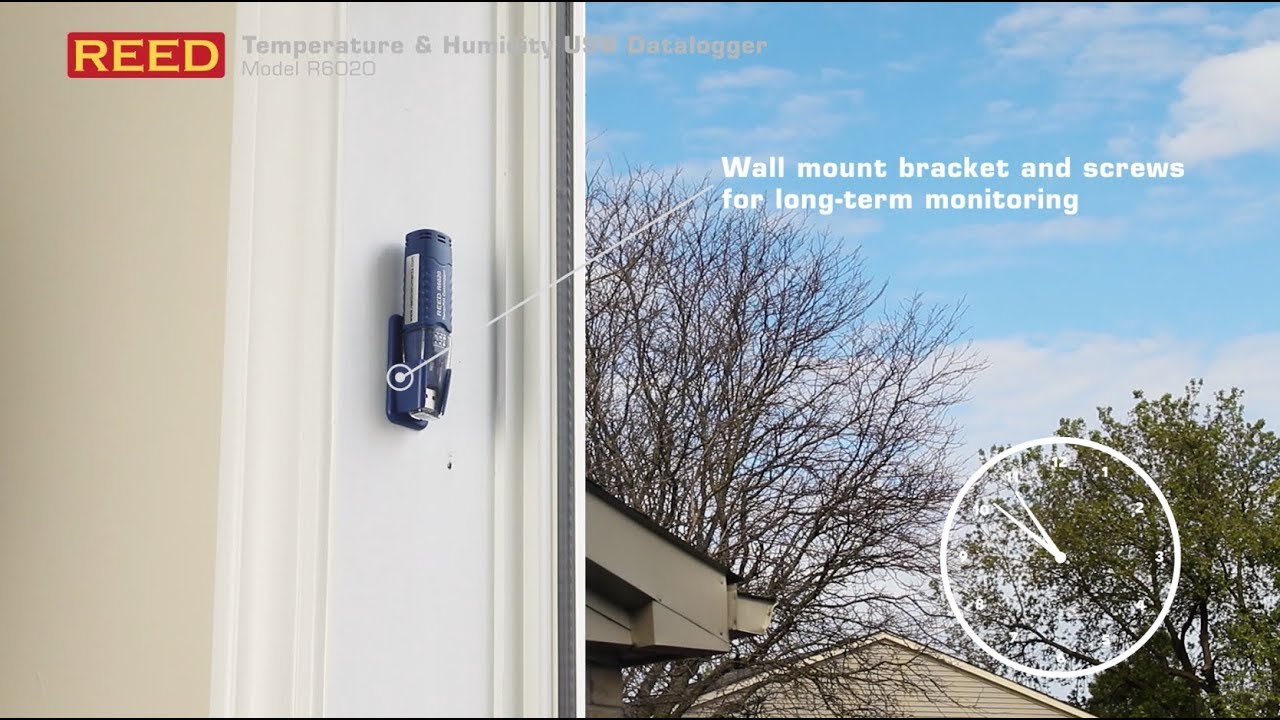

- Wall mount bracket and screws for long-term monitoring
Specifications
| Temperature | |
| Measuring Range | -40 to 158°F (-40 to 70°C) |
| Accuracy | ±1.8°F (1.0°C) |
| Resolution | 0.1°F/°C |
| Humidity | |
| Measuring Range | 0 to 100% RH |
| Accuracy | 0 to 20% & 80 to 100%: ±5% 20 to 40% & 60 to 80%: ±3.5% 40 to 60%: ±3% |
| Resolution | 0.1% RH |
| General Specifications | |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Settable Alarms | Yes (temp. and RH) |
| Sampling Rate | Yes (2 secs to 24 hours) |
| Internal Memory | 32k readings (16,000 temp. and 16,000 humidity) |
| Power Supply | 3.6V battery |
| PC Connectivity | Yes (USB) |
| Software | Included |
| Software OS Compatibility | Windows 7, 8, 10 |
| Product Certifications | CE |
| Operating Temperature | -31 to 176°F (-35 to 80°C) |
| Storage Temperature | -31 to 176°F (-35 to 80°C) |
| Operating Humidity Range | 0 to 100% |
| Dimensions | 4 x 1 x 0.9" (101 x 25 x 23mm) |
| Weight | 6 oz (172g) |

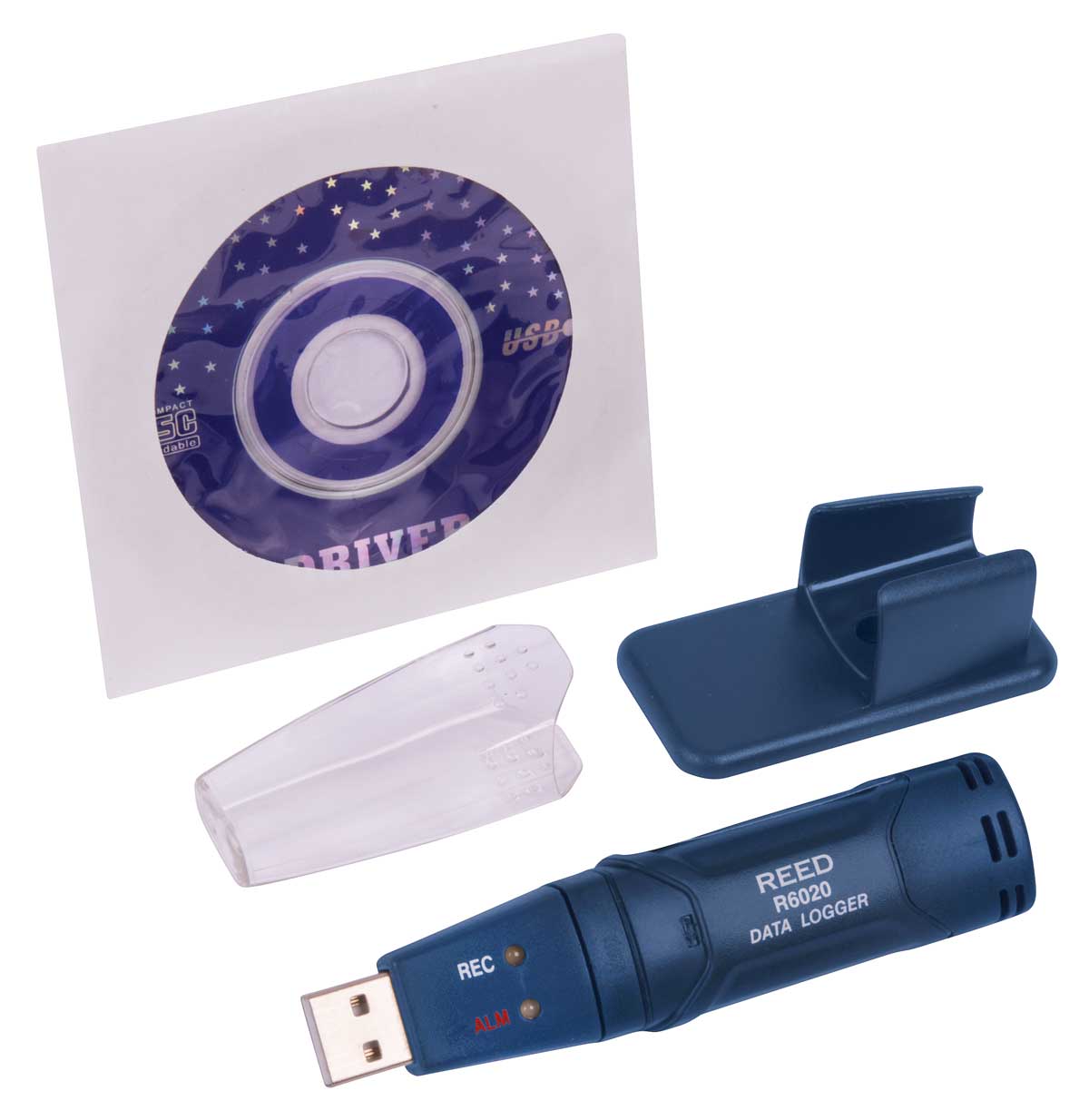

Included with the REED R6020
- Temperature & Humidity USB Datalogger
- Wall Mount Bracket and screws
- Protective USB cap
- Software
- Battery
- CALIBRATION Certificate
