Record up to 32,000 ambient temperature and relative humidity readings. Features a real-time clock with day/time stamp and LCD display to view live measurements.
This datalogger has the ability to record up to 32,000 ambient temperature and relative humidity readings. Simply connect the R6030 to a computer via the included USB cable to setup parameters (sampling rate, min/max alarms) and disconnect to begin recording. The R6030 features a real-time clock with day/time stamp and LCD display to see live measurements.
Features
- Stores up to 16,000 temperature and 16,000 humidity readings
- User selectable sampling rate from 1 sec to 24 hrs
- Visible alarm (LED) if set max/min values are exceeded
- Wall mount bracket and lock for long-term monitoring
- Real-time clock with date and time stamp
- Dual LCD displays current temperature, humidity, min/max and date/time
- Download and analyze data directly to computer via included USB cable
Specifications
| Temperature |
| Measuring Range |
-40 to 158°F (-40 to 70°C) |
| Accuracy |
±1.8°F (1.0°C) |
| Resolution |
0.1°F/°C |
| Humidity |
| Measuring Range |
0 to 100% RH |
| Accuracy |
0 to 20% & 80 to 100%: ±5%
20 to 40% & 60 to 80%: ±3.5%
40 to 60%: ±3% |
| Resolution |
0.1% RH |
| General Specifications |
| Display |
Dual Display, LCD |
| Min |
Yes |
| Max |
Yes |
| Settable Alarms |
Yes (temp. and RH) |
| Sampling Rate |
Yes (2 secs to 24 hours) |
| Internal Memory |
32k readings (16,000 temp. and 16,000 humidity) |
| Low Battery Indicator |
Yes |
| Power Supply |
3.6V battery |
| PC Connectivity |
Yes (USB) |
| Software |
Included |
| Software OS Compatibility |
Windows 7, 8, 10 |
| Product Certifications |
CE |
| Operating Temperature |
32 to 122°F (0 to 50°C) |
| Storage Temperature |
14 to 140°F (-10 to 60°C) |
| Operating Humidity Range |
0 to 100% |
| Dimensions |
3.7 x 1.9 x 1.3" (94 x 48 x 33mm) |
| Weight |
4.1 oz (115g) |

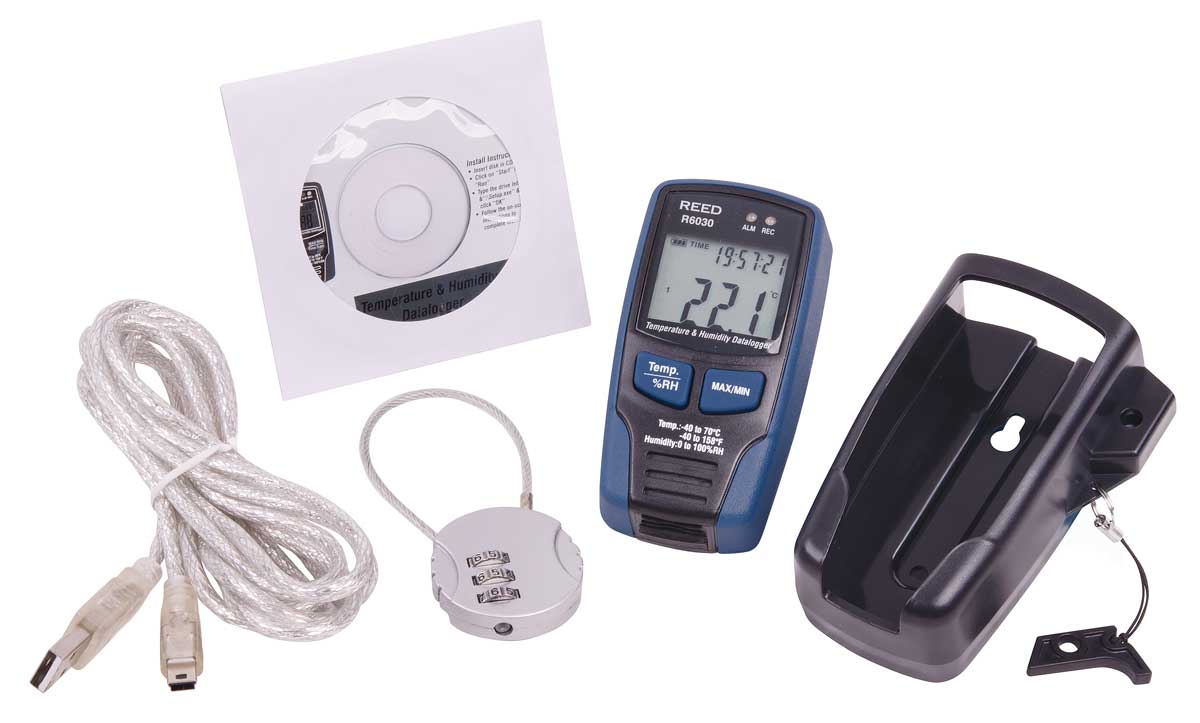

Included with the REED R6030
- Temperature/Humidity Datalogger
- Mounting Bracket with Screws
- USB Cable
- Software
- Security Lock
- Battery
- CALIBRATION certificate
Download
