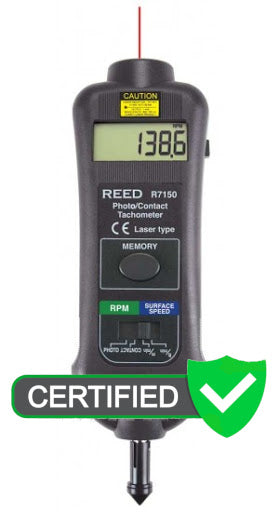

REED R7150 Professional Combination Contact / Laser Photo Tachometer with ISO certificate
REED R7150 Professional Combination Contact / Laser Photo Tachometer with ISO certificate
Regular price
$ 596.00 CAD
Regular price
Sale price
$ 596.00 CAD
Quantity
Couldn't load pickup availability
Quick responding and accurate dual function tachometer with the ability to measure non-contact RPM with built-in laser and contact measurements in ft/min (m/min).
This tachometer features both the ability to measure RPM (revolutions per minute) in rotational equipment and surface speed m/min (meters per minute) / ft/min (feet per minute) with included contact adapters. The built-in laser for non-contact measurement provides accurate measurements up to 6.5 ft (2000 mm) away from target.
Features
- Dual function unit with both contact and non-contact capabilities
- Provides fast and accurate RPM measurements of rotating objects and surface speed measurements MPM (meter per min) and FPM (feet per min)
- Laser provides improved accuracy at a greater distance
- Internal memory recalls min/max and last value
- LCD Display reverses depending on measurement mode
REED R7150 Specifications
| RPM Range (Contact) | 0.5 to 19,999 |
| RPM Range (Photo) | 10 to 99,999 |
| Surface Speed Range | 0.05 to 1,999.9 m/min 0.2 to 6,560 ft/min |
| Resolution | Photo: 0.1 RPM (≤999.9) / 1 RPM (>1000) Contact: 0.1 RPM (≤999.9) / 1 RPM (>1000) Surface: 0.01 m/min (≤99.9) / 0.1 m/min (≥100) / 0.01 ft/min (≤999.9) / 1 ft/min (≥1000) |
| Basic Accuracy | ±(0.05% + 1 dgt.) |
| General Specifications | |
| Visible Indicator | Yes (Laser) |
| Target Distance | 6.5ft (2000mm) (Photo) |
| Response Time | <1 sec |
| Sampling Time | Photo: 1 sec (over 60 RPM) Contact: 1 sec (over 6 RPM) |
| Display Size/Type | 5 Digit LCD Display |
| Auto shut-off | Yes |
| Internal Memory | Max, Min and Last |
| Laser Class | Class II |
| Low Battery Indicator | Yes |
| Power Supply | 4 x AA Batteries |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10-90% |
| Dimensions | 8.5 x 2.6 x 1.5" (215 x 65 x 38 mm) |
| Weight | 10.6oz (300g) |

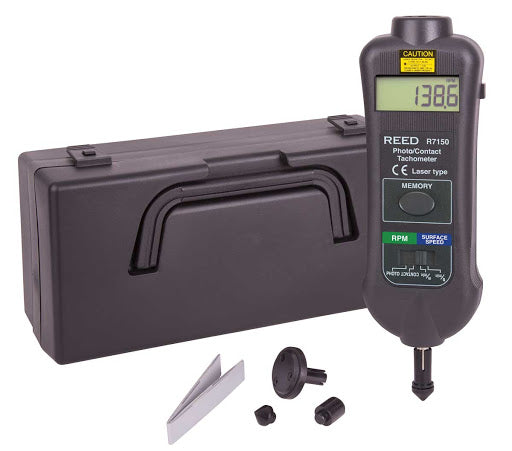

What's included with the REED R7150
- Combination Contact / Non-Contact Tachometer with Laser
- Reflective Tape
- Large and Small Cone Tip Adapters
- Funnel Adapter
- Wheel Adapter
- Batteries
- Hard Carrying Case
