REED

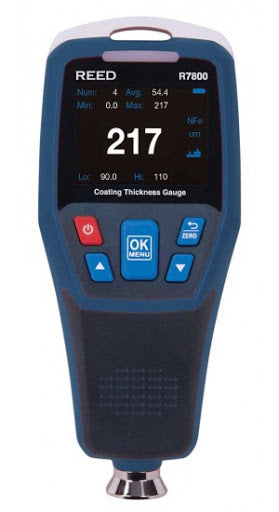

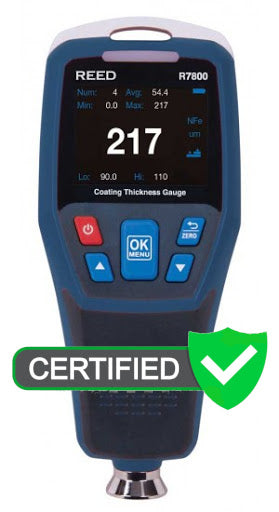

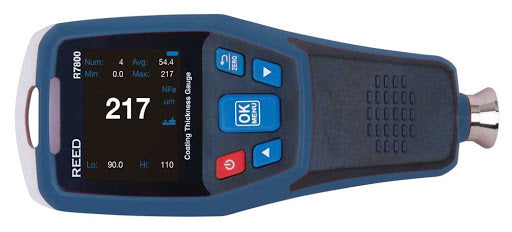

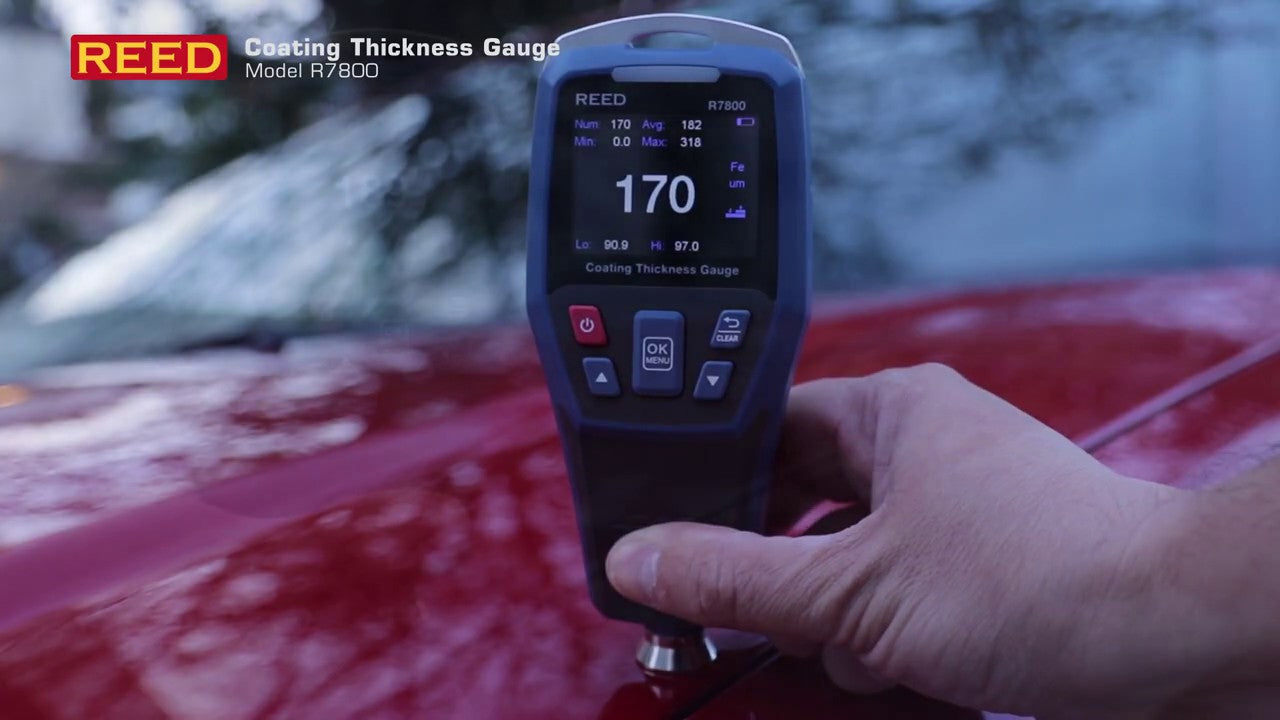

REED R7800 Coating Thickness Gauge - with ISO certificate
REED R7800 Coating Thickness Gauge - with ISO certificate
Regular price
$ 587.00 CAD
Regular price
Sale price
$ 587.00 CAD
Quantity
Couldn't load pickup availability
Automatically identifies ferrous and non-ferrous substrates.
This coating thickness gauge is designed for non‐invasive coating thickness measurements. The R7800 features zero or two point calibration, user adjustable high/low alarms and a USB interface to further analyse results in the included software.
Features
- Automatically detects ferrous and non-ferrous substrates
- Easy-to-read color LCD display
- 360° screen rotation allows users to view measured readings from any angle
- Durable gauge and probe construction
- Zero and two-point calibration ensures measurement accuracy
- Single or multi-point mode allows a user to set tolerances and quickly identify whether a coating passes or fails
- Tri-color LEDs quickly indicate when measurements are below (red), above (yellow) or within set parameters (green)
- Internal memory stores up to 500 groups of data
- View stored data, charts or real-time measurement with software
- Low battery indication and auto shut off
REED R7800 Specifications
| Measuring Range | 0 to 1250μm 0.1 to 49.2mils |
| Accuracy | 0 to 1250μm: ±3% +1μm 0 to 49.21mils: ±3% +0.04mils |
| Resolution | 0 to 99.9μm: 0.1μm 100 to 1250μm: 1μm 0 to 4.99mils: 0.01mils 5.0 to 49.2mils: 0.1mils |
| Measurement Modes | Single and Continuous |
| Display | 4-digit color LCD display |
| Resolution | 320 x 240 pixels |
| Backlit Display | Yes (5 levels) |
| Min/Max/Average Readings | Yes |
| Minimum Curvature Radius | 5mm (196.85mils) |
| Minimum Area Diameter | 20mm (787.40mils) |
| Minimum Substrate Thickness | 0.5mm (19.69mils) |
| Auto Shut-Off | Yes (After 5 minutes) |
| Low Battery Indicator | Yes |
| Power Supply | 2 x AA Batteries |
| Internal Memory | Yes (Up to 500 groups) |
| PC Connectivity | USB Cable |
| Software | Yes |
| Product Certifications | CE |
| Refresh Rate | 0.5 seconds (continuous mode) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | ≤80%RH |
| Dimensions | 5.9 x 2.6 x 1.38" (152 x 65 x 35mm) |
| Weight | 6.35oz (180g) |
Included with the REED R7800
- Coating Thickness Gauge
- Ferrous Substrate
- Non-Ferrous Substrate
- 5 Reference Films
- USB Cable
- Wrist Strap
- Sensor Cover
- Batteries
- Hard Carrying Case
