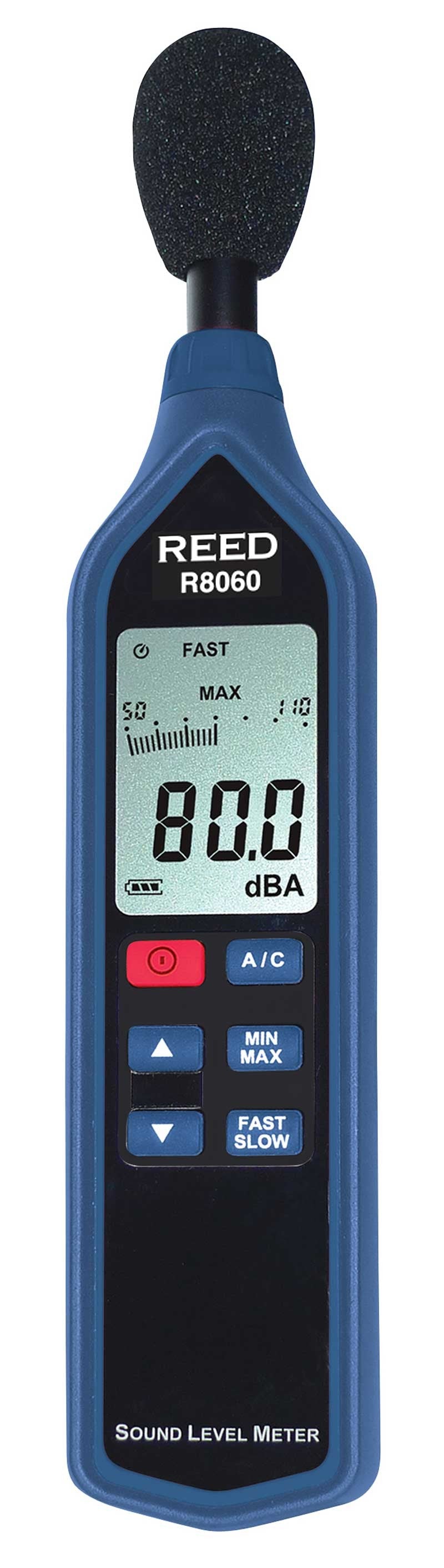

REED R8060 Sound Level Meter with Bargraph
REED R8060 Sound Level Meter with Bargraph

REED R8060 Sound Level Meter with Bargraph

Regular price $ 253.00 CAD Sale

Triple range type 2 sound level meter with LCD display, on-screen digital analog bargraph and AC/DC output for connection to chart recorders and dataloggers.

This sound level meter meets IEC Type 2 requirements and offers high accuracy for critical measurements. The R8060 features over/under range indicators for each of the 3 measurement ranges, a digital analog bargraph and the ability to keep track of Min/Max readings.

Features

  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Easy-to-read LCD display
  • Digital analog bargraph
  • Data hold and Min/Max hold
  • AC/DC output signal for use with dataloggers

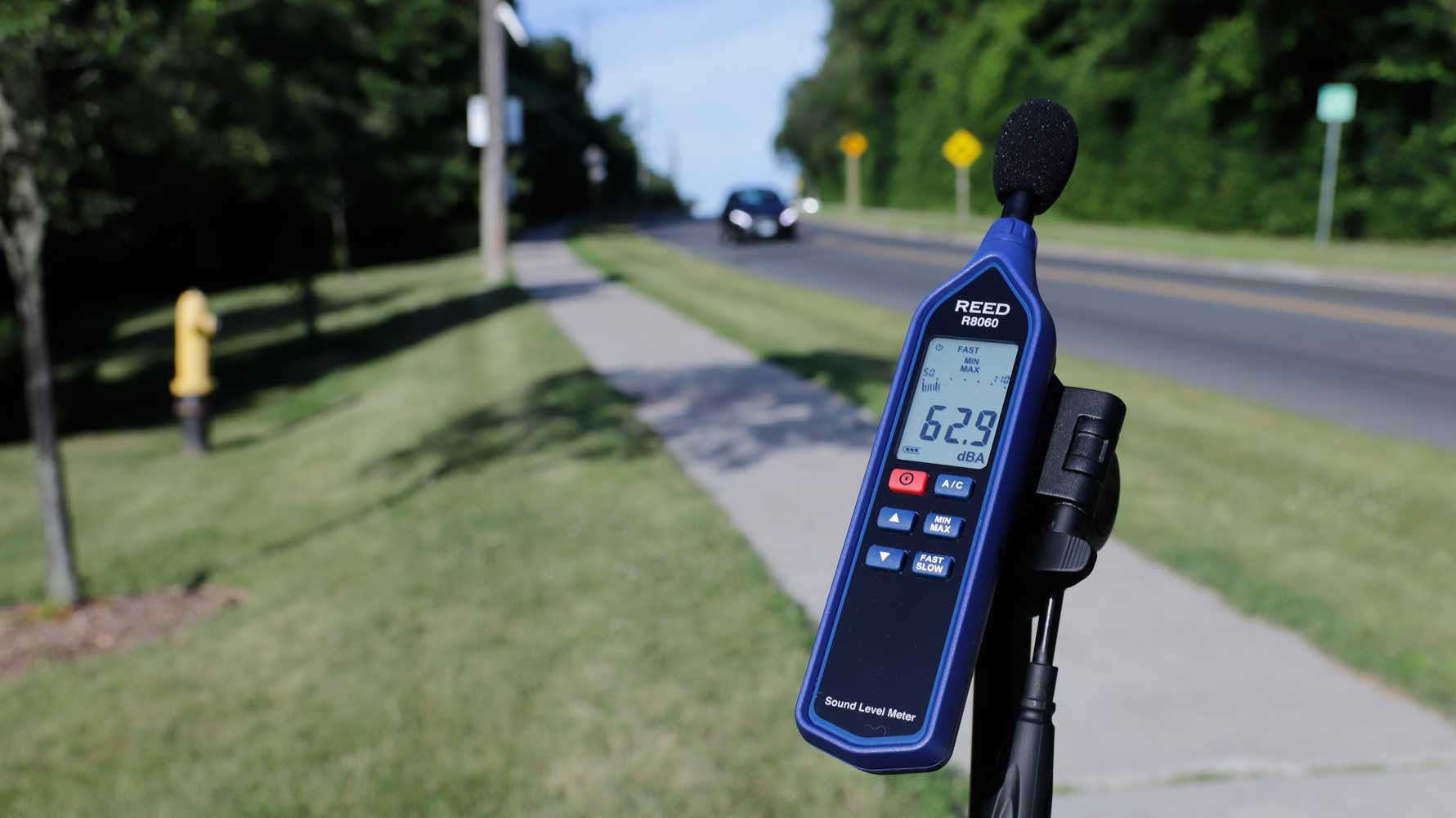

  • Tripod mount for long-term monitoring
  • Low battery indicator and auto shut off

What's included with the REED R8060

  • Sound Level Meter
  • Windshield Ball
  • Soft Carrying Case
  • Battery

Specifications

Measuring Ranges 30-130dB
Low: 30-90 dB
Med: 50-110 dB
High: 70-130 dB
Dynamic Range 60 dB (in each range)
Accuracy ±1.4 dB
Resolution Digital: 0.1 dB
Analog: 2dB
Response Time Digital: 500ms
Analog: 100ms
Frequency Range 20 Hz to 8 kHz
Frequency Weighting A, C
Time Weighting Fast/Slow (125ms and 1s)
Microphone 0.5" (12.7mm) electret condenser
Digital Analog Bargraph Yes (30 segment)
Display 4-digit LCD
Min Yes
Max Yes
Alarm Indicators Under and Over (visual on-screen)
Auto Shut-off Yes (after 30 mins/off)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 9V battery
Output Yes (AC/DC)
Battery Life Approx 50 hours
Product Certifications CE, IEC 61672-1 Class 2
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 10.2 x 2.2 x 1" (258 x 55 x 25mm)
Weight 6.5oz (185g)
