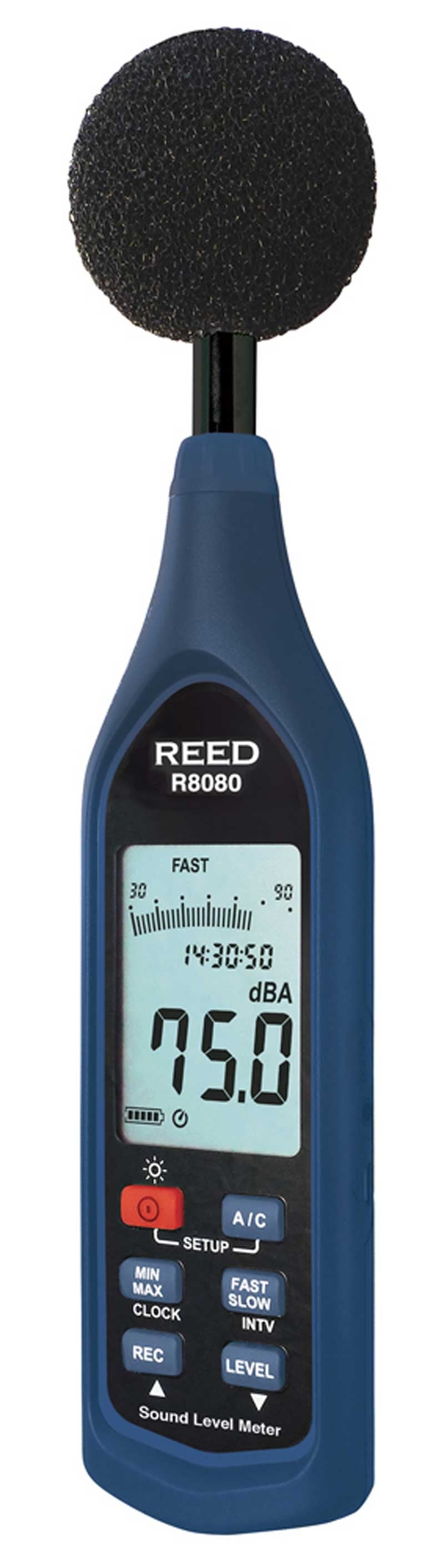

REED R8080 Data Logging Sound Level Meter with Bargraph with ISO Certificate

$ 670.00 CAD

Quick responding triple range sound level meter with backlit display, analog bargraph and built-in memory to data log up to 64,000 points.

This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.

Features

  • High accuracy of ±1.4 dB meets Type 2 standards
  • Triple range measurement (60dB dynamic range)
  • A & C frequency weighting
  • Fast & Slow time weighting
  • Record up to 64,000 datapoints and keep track with internal time and date stamp
  • User selectable sampling rate from 1 to 60 seconds
  • Easy-to-read backlit LCD display
  • Digital analog bargraph
  • Min/Max hold and auto shut off
  • Tripod mount for long-term monitoring
  • Low battery indicator

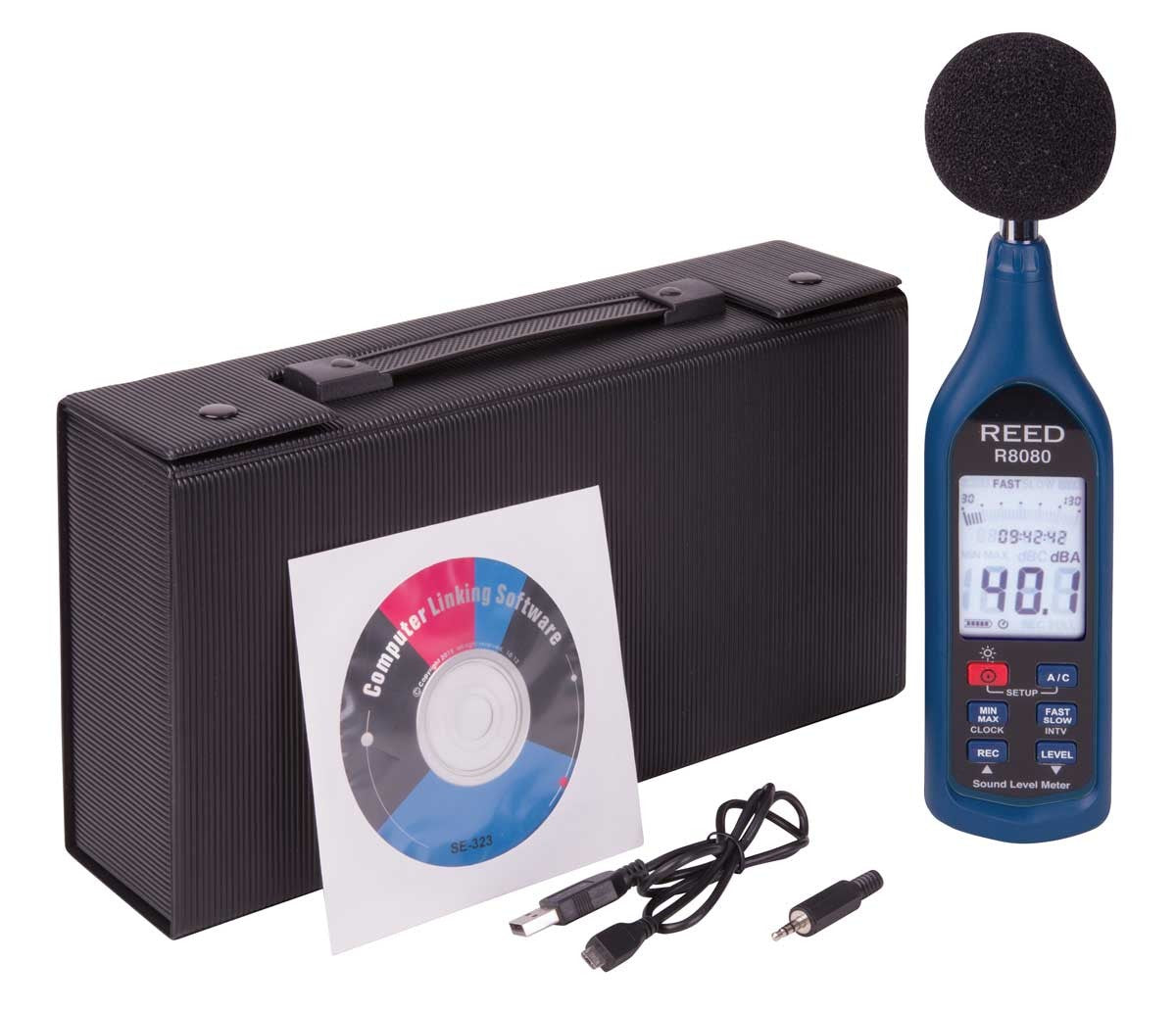

What's included with the REED R8080

  • Sound Level Meter / Datalogger
  • Windshield Ball
  • USB Cable
  • PC Software
  • Hard Carrying Case
  • Batteries

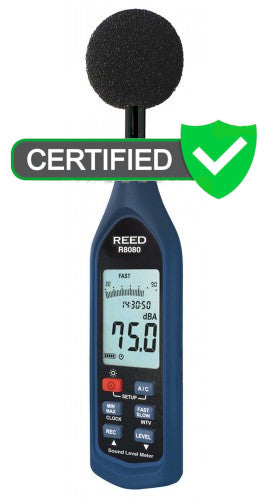

  • Calibration Certificate

Specifications

Measuring Ranges 30-130 dB
Low: 30-90dB
Med: 50 -110 dB
High: 70 -130 dB
Full: 30-130 dB
Dynamic Range 60 dB (in each range)
Accuracy ±1.4 dB
Resolution Digital: 0.1 dB
Analog: 2dB
Response Time Digital: 500ms
Analog: 50ms
Frequency Range 20 Hz to 8 kHz
Frequency Weighting A, C
Time Weighting Fast/Slow (125ms and 1s)
Microphone 0.5" (12.7mm) electret condenser
Digital Analog Bargraph Yes (30 segment)
Display 4-digit LCD
Backlit Display Yes
Min Yes
Max Yes
Alarm Indicators Under and Over (visual on-screen)
Datalogging Capabilities Yes
Real-Time Clock and Date Stamp Yes
Selectable Sampling Rate Yes (between 1s and 60s)
Internal Memory 1mb (64,000 datapoints)
Auto Shut-off Yes (after 30 mins/off)
Tripod Mountable Yes
Low Battery Indicator Yes
Power Supply 4 x AAA batteries
Output Yes (AC/DC)
Battery Life Approx 50 hours
PC Connectivity USB
Software OS Compatibility Windows XP / Vista / 7 / 8 / 10
Product Certifications CE, IEC 61672-1 Class 2, ANSI S1.4 Type 2
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Operating Humidity Range 10-90%
Dimensions 10.4 x 2.5 x 1" (264 x 63 x 29mm)
Weight 8.8oz (245g)
