REED SD-6100 Offers

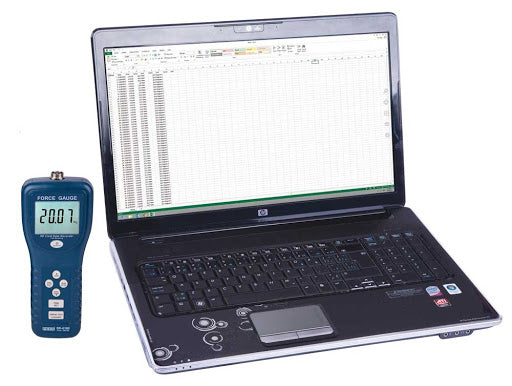

This gauge has the ability to measure push and pull forces up to 220lbs (100kg) and features a reversible display ensuring measurements are easily read, regardless of testing direction. The SD-6100 features a real time datalogger with memory card slot. Using a SD card (max 16Gb), a user can select a desired sampling rate and quickly generate an Excel file on a SD card without the use of software. Optional accessories include an AC adapter for continuous long-term monitoring and PC software to track real-time measurements.
Features
- Measures tension and compression
- Records in Peak hold or Normal mode
- Fast/Slow response selection
- Full capacity tare (zero) capability
- Force is measured in kg, lb or Newtons
- Easy-to-read backlit display
- Reversible display ensures legible readings regardless of direction

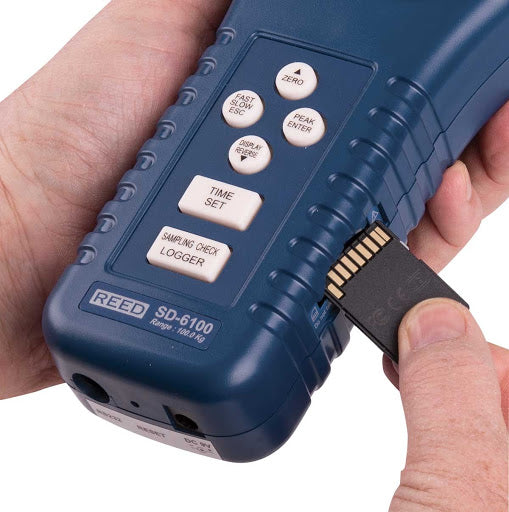

- Real-time datalogger with integral SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Optional PC software features live tracking via USB connection
- Low battery indicator and auto shut off
REED SD-6100 Specifications
| Measuring Range |
100kg
220.5lb
980.6N |
| Accuracy |
±(5% rdg + 2 dgt.) |
| Resolution |
0.15 kg/0.02 lb/0.02 N |
| Response Time |
Less than 1 sec. |
| Full Scale Deflection |
Less than 1mm |
| Display |
4-digit LCD |
| Backlit Display |
Yes |
| Peak Hold Measurements |
Yes |
| Zero Adjustment |
Yes |
| Overrange Indicator |
Yes (Audible alarm at 100kg) |
| Datalogging Capabilities |
Yes |
| Real-Time Clock and Date Stamp |
Yes |
| Selectable Sampling Rate |
Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600s) |
| External Memory |
Yes, expandable up to 16Gb with SD card (optional) |
| Auto Shut-off |
Yes (after 10 mins/off) |
| Low Battery Indicator |
Yes |
| Power Supply |
6 AA Batteries or AC Adapter (optional) |
| Output |
Yes |
| Battery Life |
Sampling Time Dependent |
| PC Connectivity |
USB Cable (optional) |
| Software |
SW-U801-WIN Software (optional) |
| Software OS Compatibility |
Windows XP / Vista / 7 |
| Product Certifications |
CE |
| Operating Temperature |
0 to 122°F (0 to 50°C) |
| Storage Temperature |
14 to 140°F (-10 to 60°C) |
| Operating Humidity Range |
10 to 85% |
| Dimensions |
215 x 90 x 45mm (8.5 x 3.5 x 1.8") |
| Weight |
1.43 lb (650 g) |
What's included with the REED SD-6100

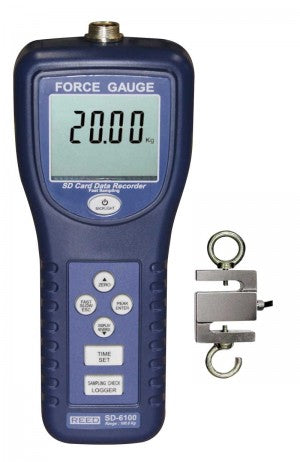

- 100kg Force Gauge Datalogger
- Load Cell Sensor with 2 Hooks and Cable
- Hard Carrying Case
- Batteries
- CALIBRATION Certificate
