Rental - Kyoritsu KEW 6300 Three Phase Energy Analyzer / Data Logger

$ 375.00 CAD

Sale Sold out

12 kinds of power measurements _ Voltage (RMS), Current (RMS), active power, apparent power, reactive power, active energy, apparent energy, reactive energy, power factor (cos θ), frequency , demand measurement, current flowing on the neutral line (Only on 3 phase 4 wire measurement)
Regenerative electric power can be measured _ Detection of consumption power and regenerative electric power Regenerative electric power: This is the electric power which is generated by private power generator, and is supplied to electric power company.
Display 3 different data simultaneously on large screen.
4 types wiring system

_ 1 phase - 2 wire (1ch) (2ch), (3ch)

_ 1 phase - 3 wire
_ 3 phase - 3 wire
_ 3 phase - 4 wire

Recording internal can be set between 1 second and 1 hour _ 1/2/5/10/15/20/30 second/seconds 1/2/5/10/15/20/30 minute/minutes 1 hour
Demand measurement _ Buzzer sounding and backlight blinking give warning not to exceed the pre-setting demand target value.
Double power supply system AC line and Alkaline size AA battery LR6 : 6 pcs. _ Continuous 7 hours can be measured by using batteries
Supplied with interface software for downloading data to PC via USB.
Direct communication with PC by USB connection
The interface for compact flash card (CF card) is equipped. _ An external memory up to 8GB or less can be used.
Back light function
Designed to Safety Standard IEC 61010-1 CAT III 600V.

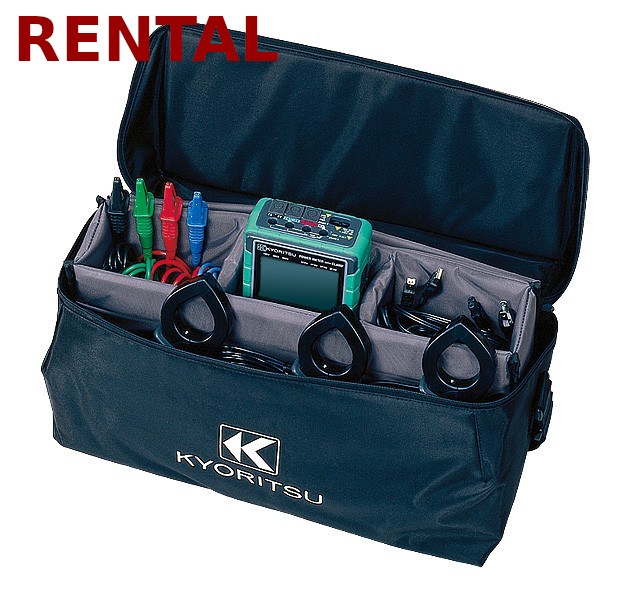

Rental - KEW6300 Package Includes

KEW6300 meter
3 x 1000A Clamp On Current Transformer
Voltage Leads Set w/ Alligators
Memory Card 128MB
Carry Case
Certificate of Calibration
User Manual
