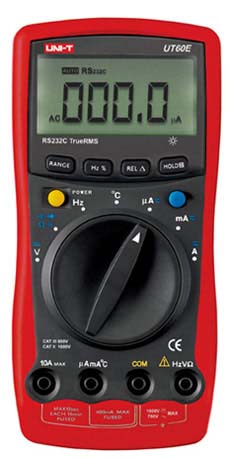

STERLING UT-60E

STERLING UT-60E

Regular price $ 99.00 CAD Sale

True RMS Digital Multimeter

  • IEC 1010 rating: Cat III 600V and Cat II 1000V
  • cUL approval
  • True RMS measurement
  • 3999 count display with backlight
  • Auto and manual ranging
  • Resistance, diode and continuity test
  • Frequency, capacitance and temperature
  • RS232 output - Windows software included
  • Fused current inputs
  • Electronic input protection
  • Extremely rugged rubberized case
  • Ergonomic design
  • Five years warranty

Technical Specifications:

DC Voltage 400mV/4/40/400/1000V; 0.8%
AC Voltage 4/40/400/750V; 1%
DC Current 400/4000uA/40m/400mA/4/10A; 1%
AC Current 400/4000uA/40m/400mA/4/10A; 1.5%
Resistance 400/4k/40k/400k/4M/40M Ohm; 1%, Diode test, continuity buzzer
Capacitance 40n/400n/4u/40u/100uF; 3%
Frequency, duty cycle 10Hz to 10MHz; 0.1%
Temperature -40 to 1000 deg.C; 1%
Power Standard 9V battery (6F22)
Standard accessories Test leads, temperature probe, battery, manual, RS232 interface, Windows software
Size, weight 177 x 85 x 40 mm, 320g
