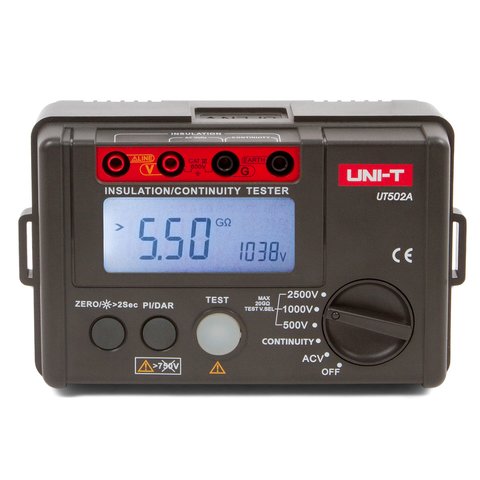

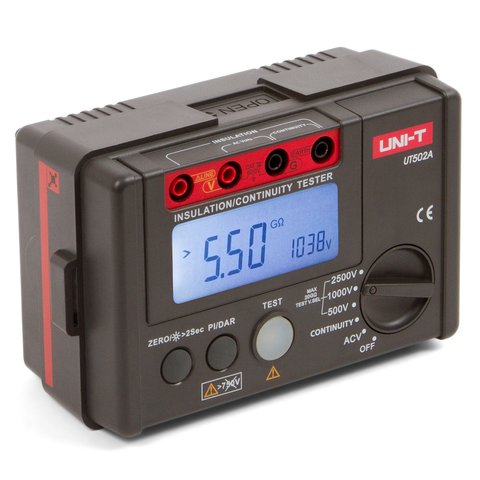

UT502A 2.5 kV Insulation Resistance Tester
UT502A 2.5 kV Insulation Resistance Tester
UT502A 2.5 kV Insulation Resistance Tester
UT502A 2.5 kV Insulation Resistance Tester
UT502A 2.5 kV Insulation Resistance Tester
UT502A 2.5 kV Insulation Resistance Tester
UT502A 2.5 kV Insulation Resistance Tester
UT502A 2.5 kV Insulation Resistance Tester

UT502A 2.5 kV Insulation Resistance Tester

Regular price $ 278.00 CAD Sale

UT500 series insulation testers are used to measure the insulation resistance of electrical  equipment and household appliances. This is done by measuring the insulation resistance between electrical circuits or between circuits and ground. UT500 series can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index) and DAR (Dielectric Absorption). These are ideal  tools for ensuring transformers, genera-tors, high voltage motors, power capacitors, power cables, arresters and other electrical equipment that can operate in a safe and accurate manner.

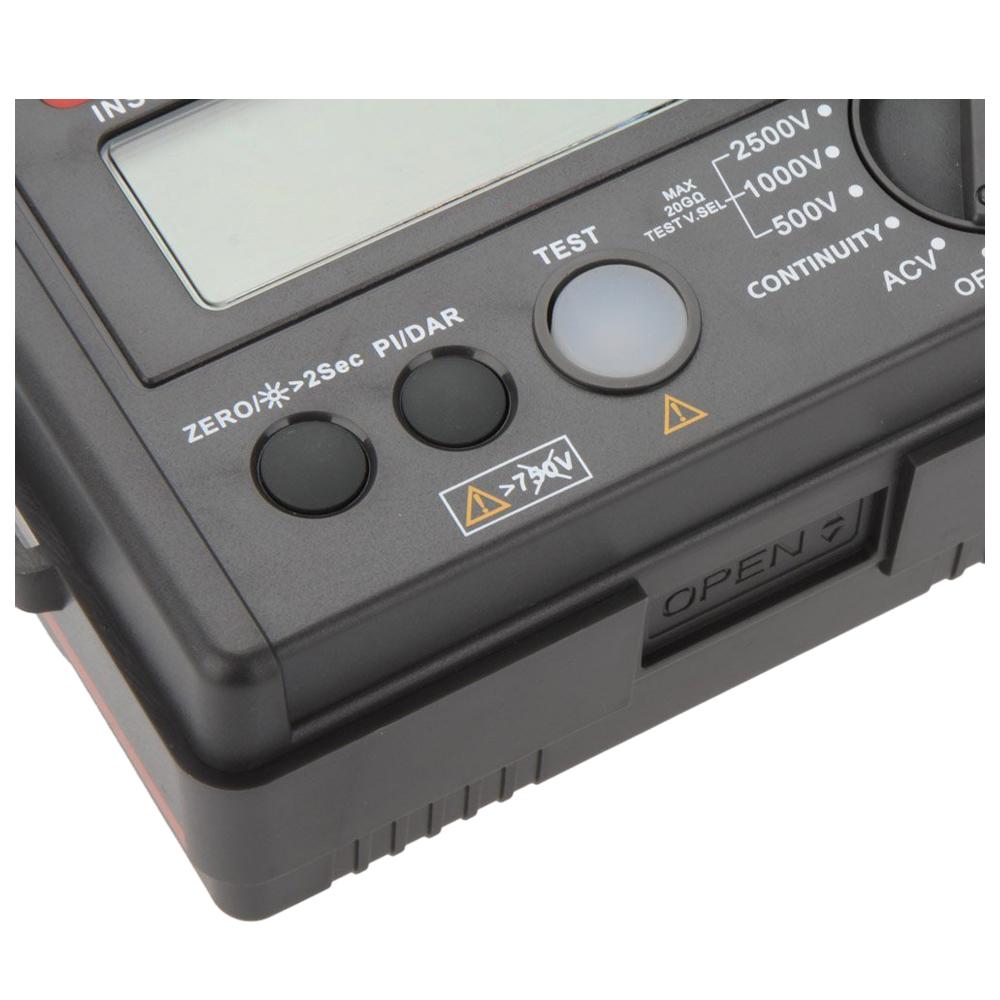

Key Features:

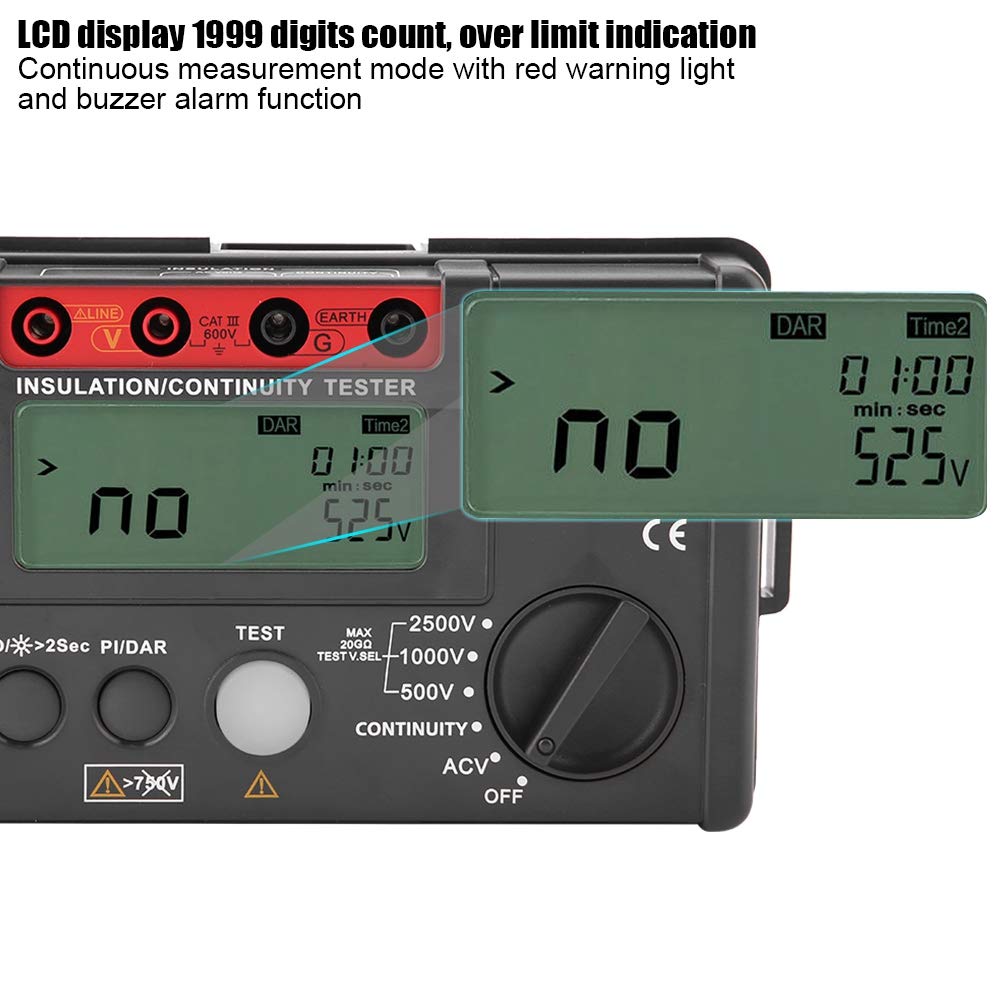

  • 2000 count LCD display, overload indication, backlight
  • AC voltage measurement, auto power off
  • Auto discharge
  • Continuous measurements mode, red warning light and buzzer function
  • Continuous low resistance measurement
  • PI and DAR measurement, auto resistivity calculation
  • Low resistance returning to zero function to improve accuracy

Applications:

It is used for insulation resistance measurement for insulation materials and various kinds of electric equipment such as transformer, electric machines, cables, switches, electrical appliance, a ideal tool for electric maintenance, testing and inspection.
Specifications   Range UT502A
Insulation resistance (Ω) Test voltages 500V/1000V/2500V 0%~10%
500V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~5GΩ ±(5%+5)
1000V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~5GΩ ±(5%+5)
2500V 0MΩ~99.9MΩ ±(3%+5)
100MΩ~9.9GΩ ±(5%+5)
10GΩ~20GΩ ±(10%+5)
Load current 50V (R=50kΩ) 1mA 0%~10%
100V (R=100kΩ) 1mA 0%~10%
250V (R=250kΩ) 1mA 0%~10%
500V (R=500kΩ) 1mA 0%~10%
1000V (R=1MΩ) 1mA 0%~10%
2500V (R=1MΩ) 1mA 0%~10%
Short-circuit current   <2mA
Low resistance (Ω) 0.01Ω~200Ω (about 5.0V/>200mA) ±(2%+3)
AC voltage (V) 30V~600V ±(2%+3)
Features
Display count   2000
DAR 60s/15s and 60s/30s
PI
Auto range/Low battery indication
LCD backlight/Light alarm
Buzzer alarm/High voltage indication
Over load indication/Auto discharge
Test voltage secondary display
10MΩ internal resistance test
Meets IEC 61557 61557-1:2007; 61557-2:2007; 61557-4:2007
General Characterisitics
Power 1.5V battery (LR6) x 6
Display 70.6mm x 34mm
Product color Red and grey
Product net weight 500g

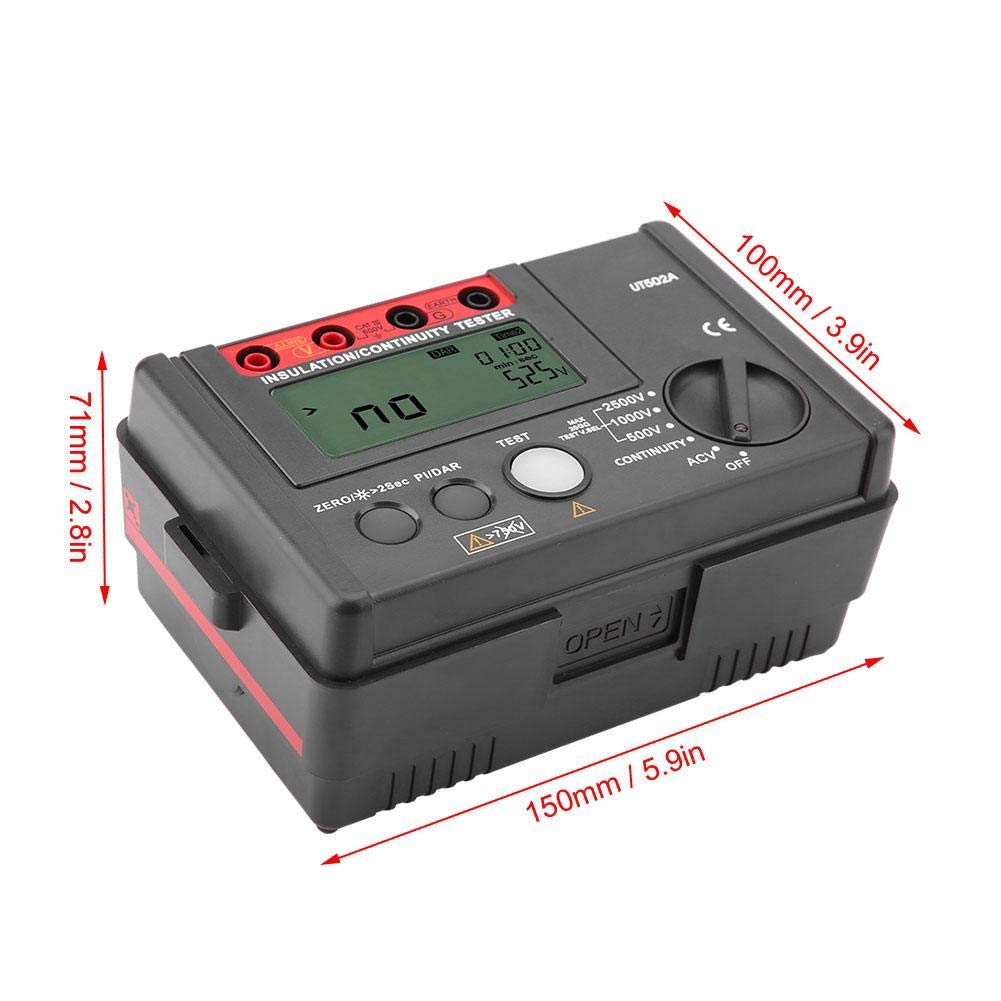

Product size 150mm x 100mm x 71mm

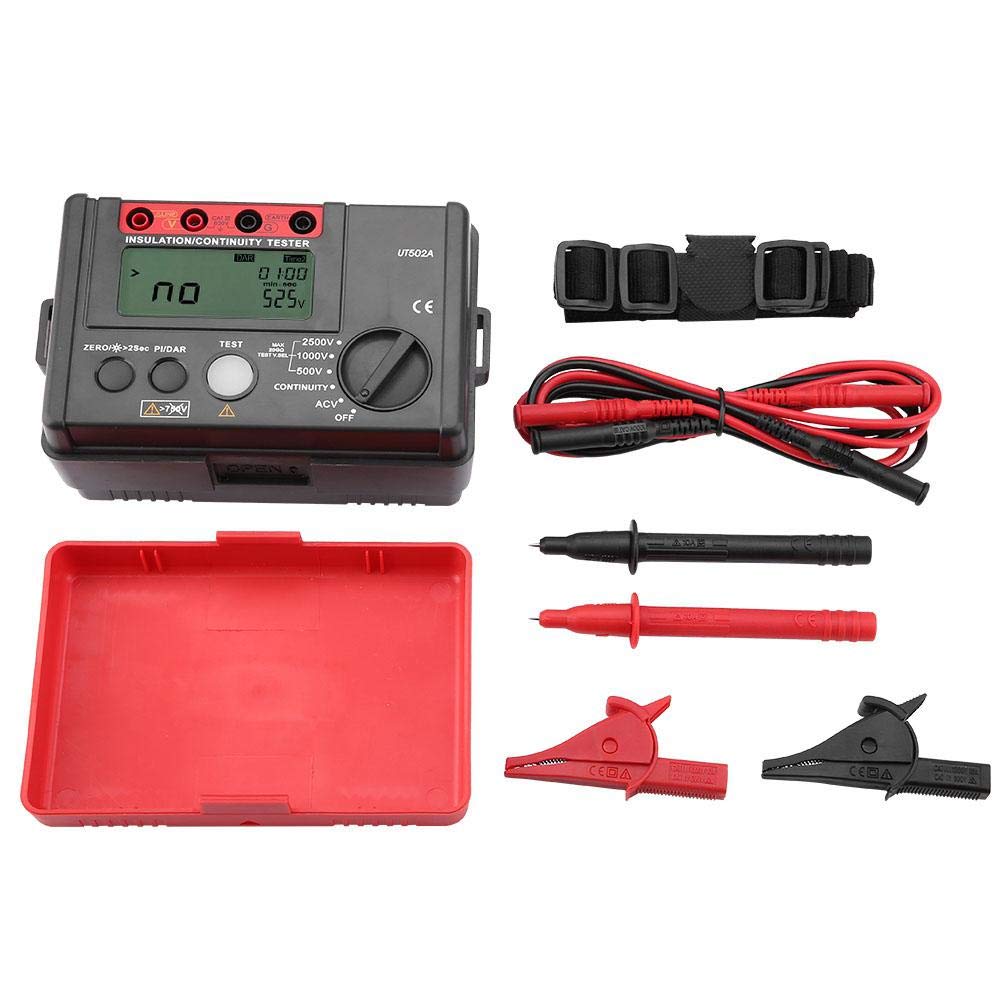

Standard accessories Batteries, test leads, alligator clips, gallus, test probes
