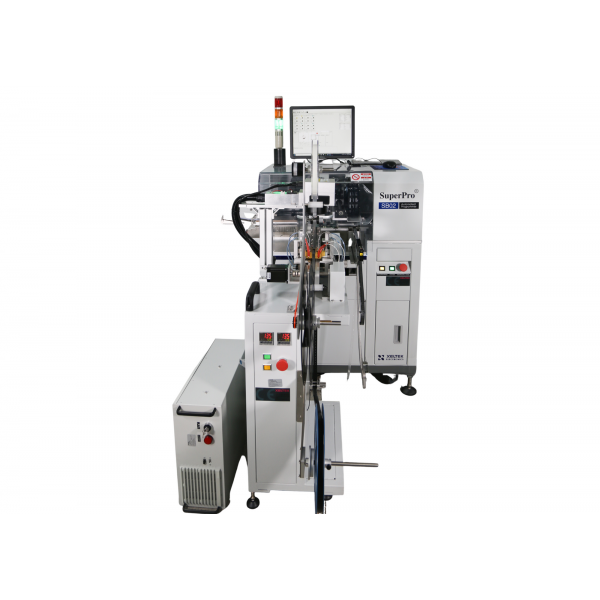

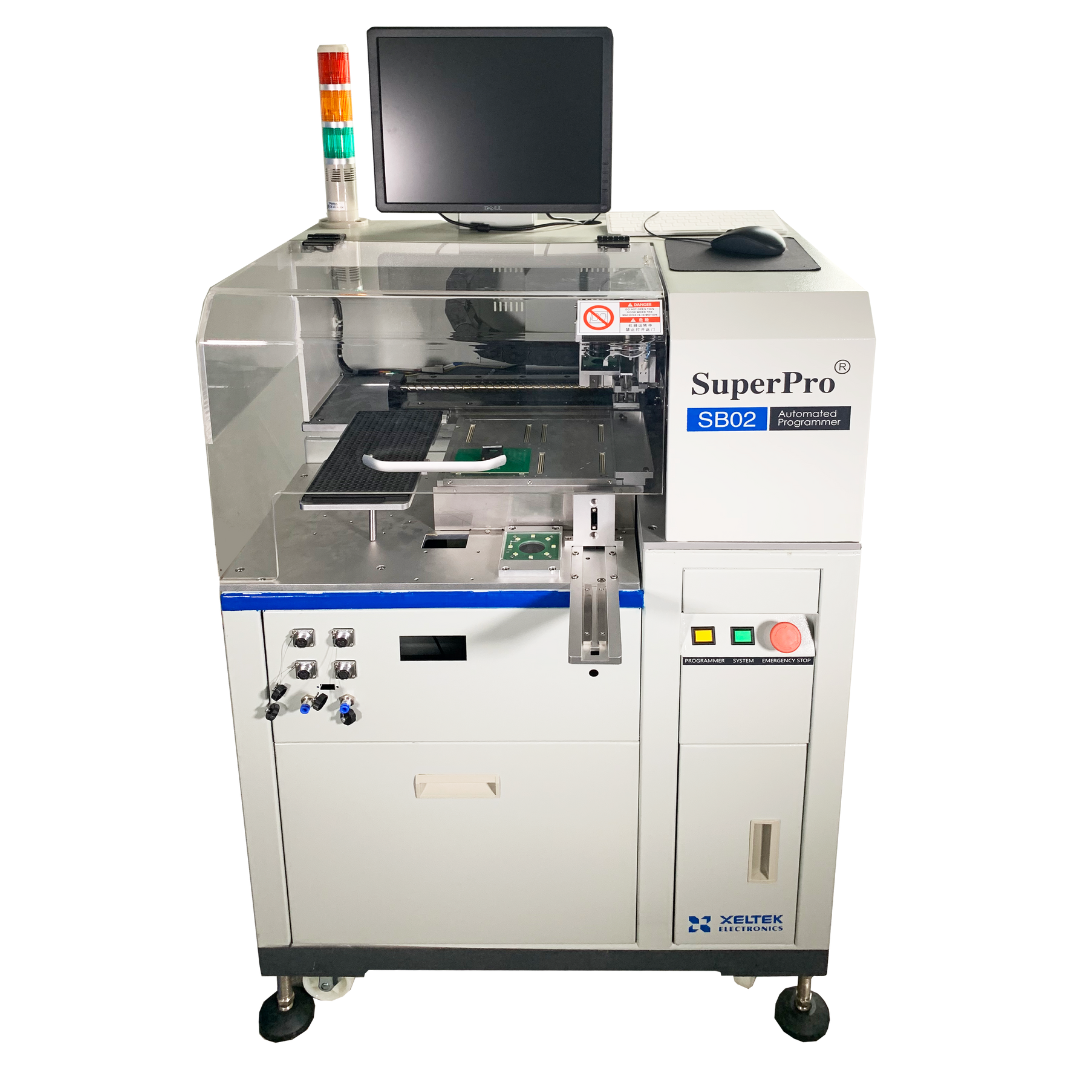

Xeltek SuperBOT 2 – Automated IC Programmer

High Throughput. Compact Footprint. Enterprise-Ready.

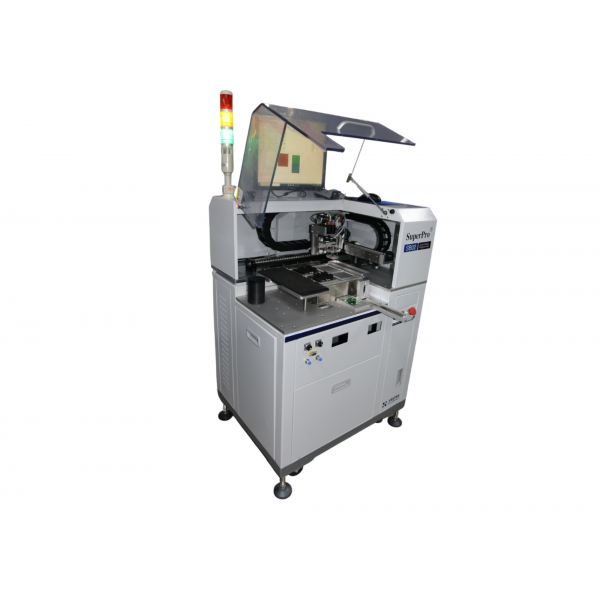

The SuperBOT 2 from Xeltek is a high-efficiency automated IC programmer designed to help OEMs and contract manufacturers streamline device programming while minimizing costs and floor space. With support for up to 16 sockets using four SuperPro 7500N programmers, it offers exceptional throughput of up to 1,200 units per hour—all within a compact and scalable platform.

💬 Pricing & Configuration

Due to the wide range of customization options—including tray configurations, marking systems, and integration preferences—the SuperBOT 2 is offered on a quote basis only.

Please contact us to discuss your specific requirements. Our team will assist you in building a tailored solution and provide a formal quote.

✅ Key Features:

  • Up to 16 Sockets via 4 SuperPro 7500N programmers

  • High Speed: 1,200 units per hour with single pick-and-place nozzle

  • Precision Vision System: ±0.07mm accuracy with 30mm x 30mm field of view

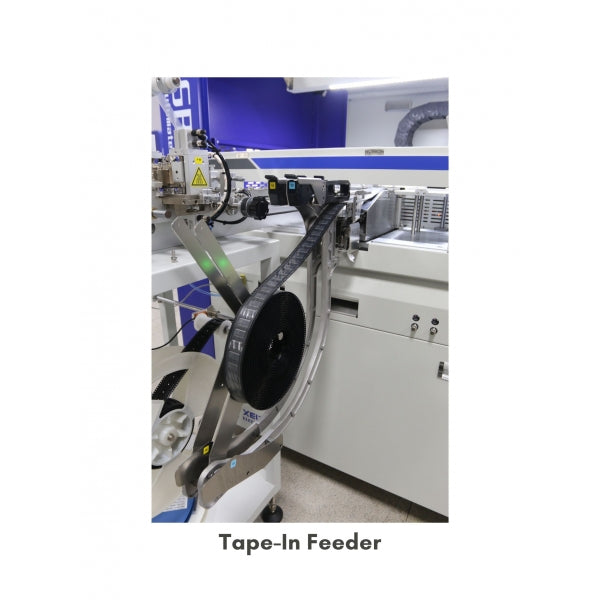

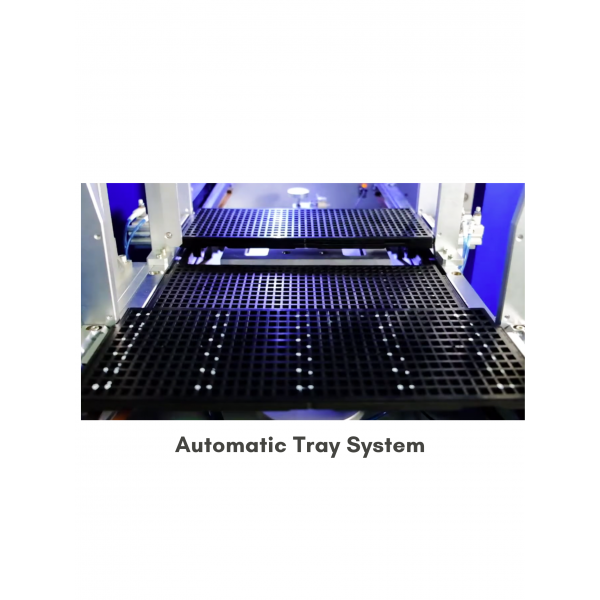

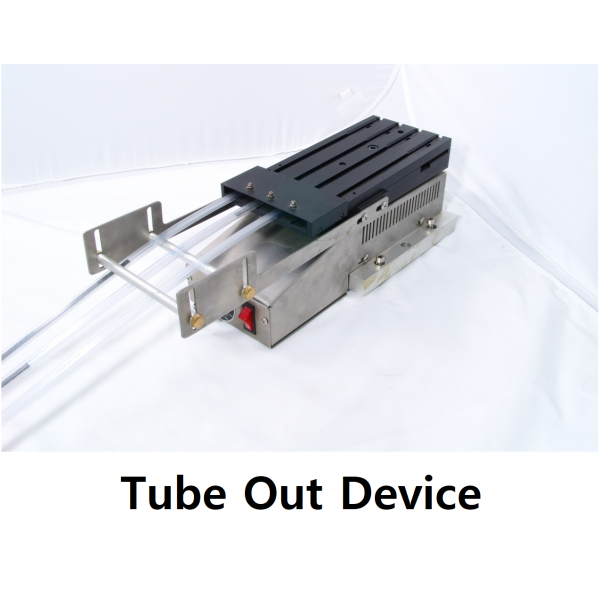

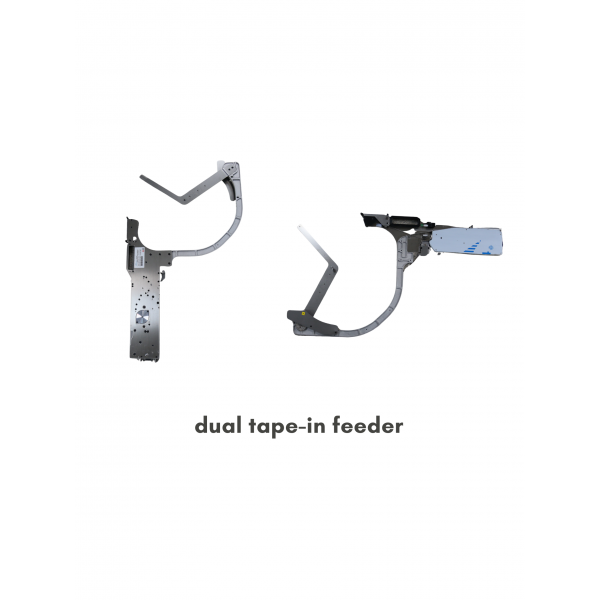

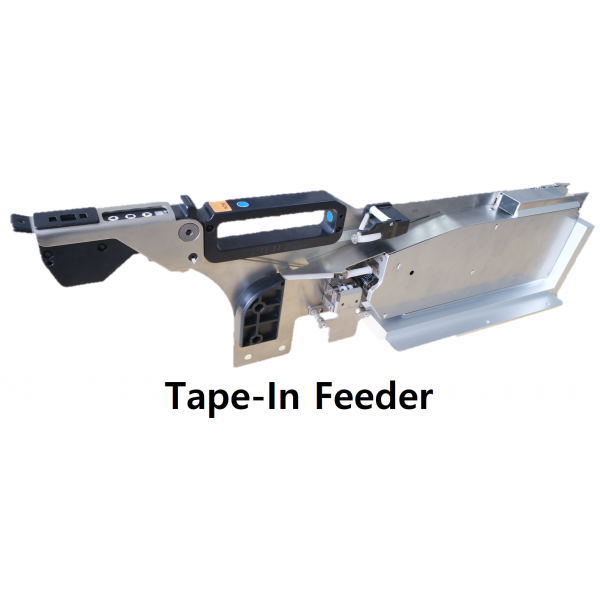

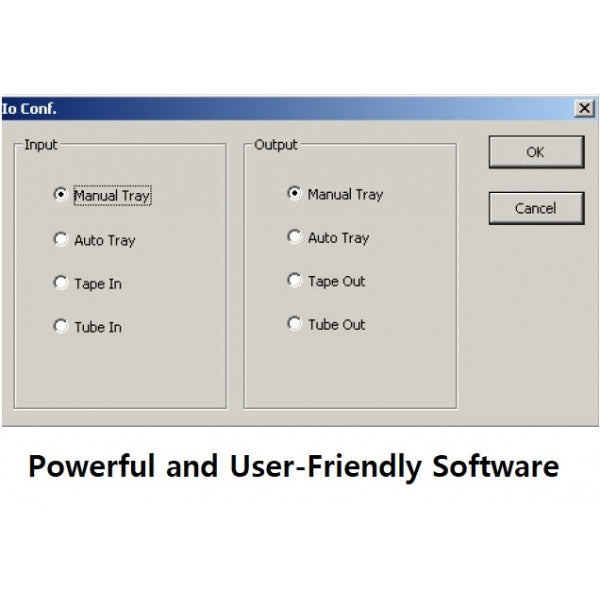

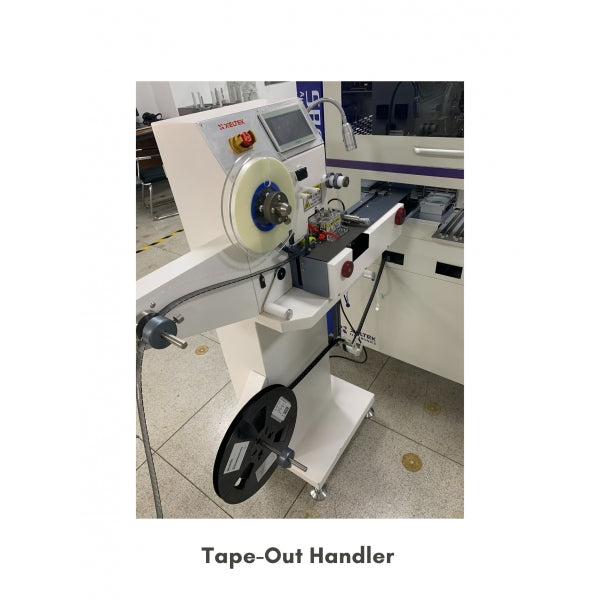

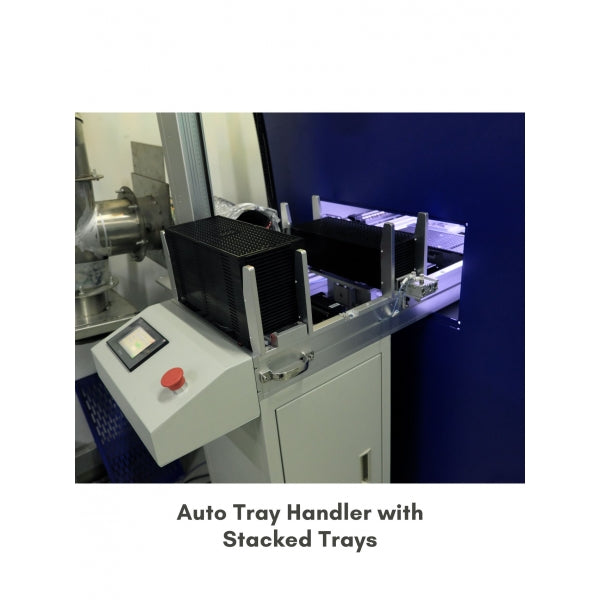

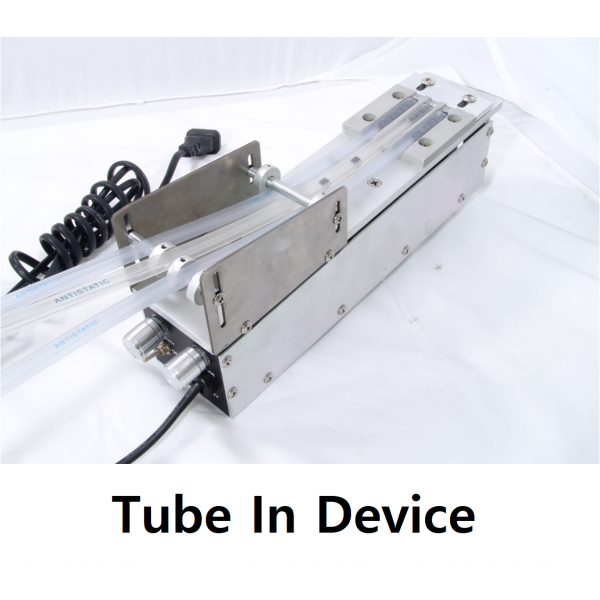

  • Flexible I/O: Tape in/out (8–44mm), trays (auto/manual), and tubes

  • Compact: Just 820 × 640 × 1550 mm and 250 kg

🧠 Built for Demanding Applications:

  • Supports a wide range of package types, from PLCC to WLCSP and BGA

  • Compatible with EPROM, EEPROM, MCU, Flash Memory, FPGA PROMs, and more

  • Includes advanced testing: mis-insertion, backward detection, device ID verification

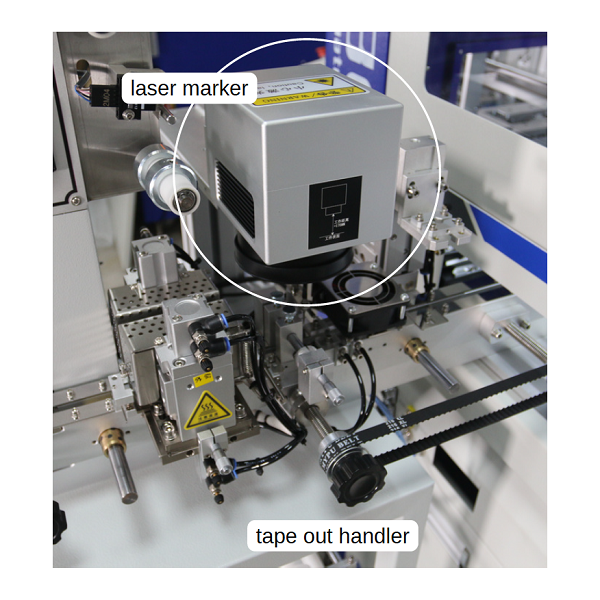

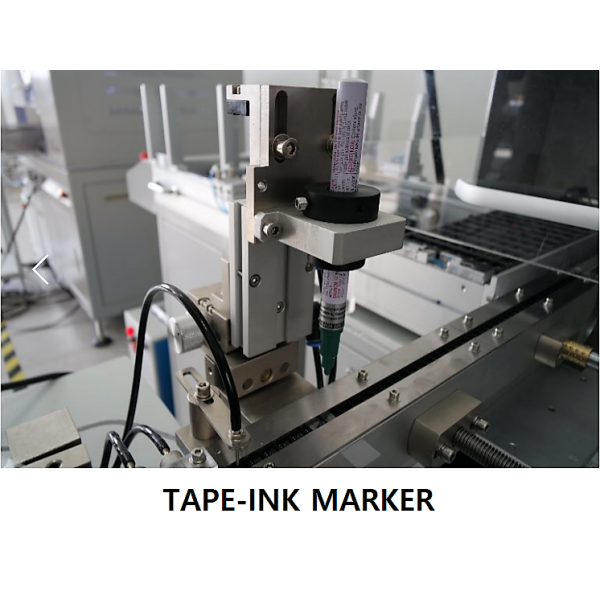

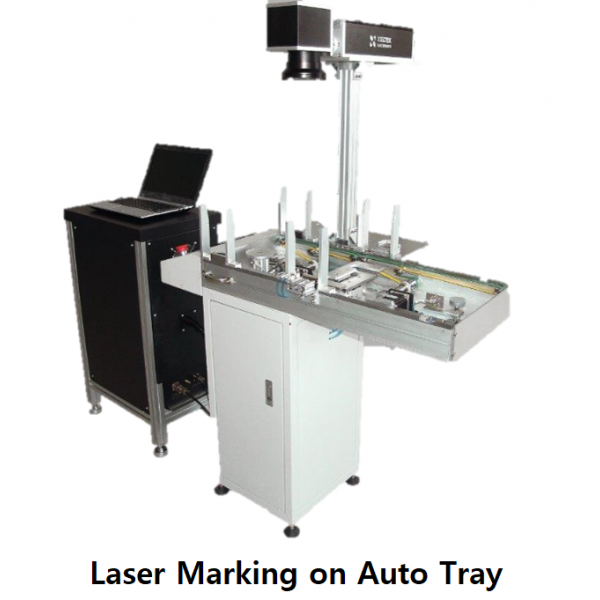

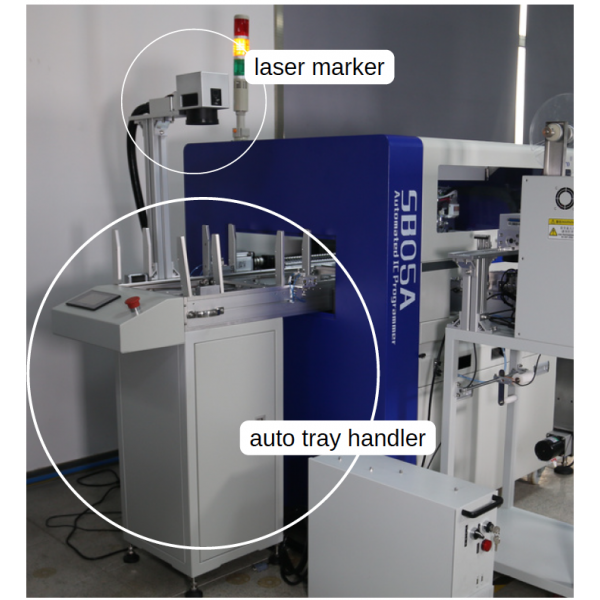

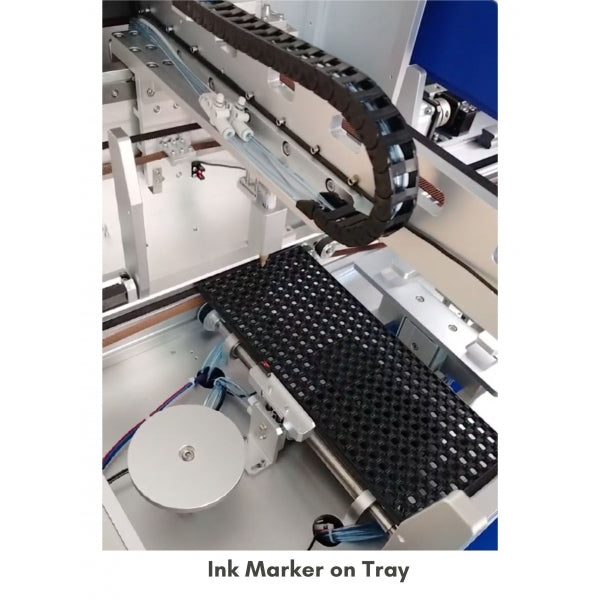

  • Options for fiber laser marking, ink dot, barcode/QR labeling, and API integration

🔐 Integration & Compliance:

  • Compatible with MES systems and Hardware Security Modules (HSM)

  • CE, RoHS, and REACH compliant

  • Built-in support for secure data programming and workflow automation

🛠 Warranty & Support:

  • 2-Year Hardware Warranty

  • 5 Years of Free Technical Support

  • Free factory training for up to two operators (up to 4 days)

  • Direct access to Xeltek engineering team for fast resolution

🔧 Specifications:

  • Power: 200–240V AC, 50–60Hz | 1.5 KVA | Single phase

  • Air: Clean/dry, 0.6 MPa, 50 L/min

  • Socket Lifespan: 10,000–60,000 insertions
