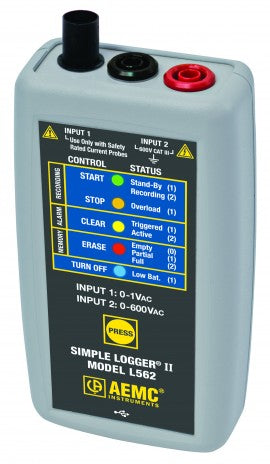

AEMC L562 Simple Logger II – Dual-Range AC Current Data Logger (24A/240A)

The AEMC L562 is a compact, dual-range AC current data logger ideal for monitoring small- to mid-sized electrical loads. Equipped with an MA MiniFlex® flexible current probe, it can measure currents up to 24A in low range or up to 240A in high range, making it perfect for energy audits, load balancing, and motor diagnostics.

Designed for long-term, unattended operation, the L562 logs true RMS current values at user-selectable intervals and stores over 240,000 measurements. With a battery life of up to 240 days and USB data transfer using the included DataView® software, it offers a practical and efficient way to collect and analyze current data.

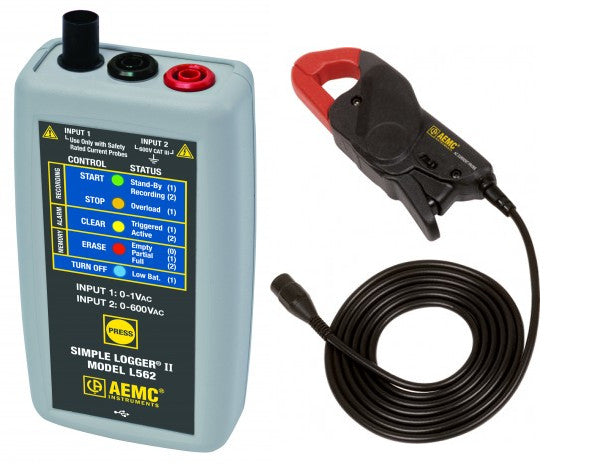

What’s Included:

• AEMC L562 Simple Logger II

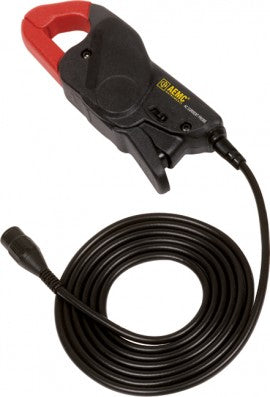

• MA MiniFlex® current probe (24A/240A selectable range)

• USB cable

• DataView® software (downloadable)

• 2 x AA batteries

• User manual

Key Features:

• Dual range: 0–24A and 0–240A AC with a probe

• True RMS measurement with 64 samples per cycle

• Stores up to 240,000 time-stamped readings

• User-selectable logging intervals from 125ms to 1 hour

• USB interface with free DataView® software

• Compact, battery-powered design (up to 240 days per set)

• Programmable alarms for threshold events

Applications:

• Load studies on branch circuits and equipment

• Motor monitoring and troubleshooting

• Energy audits and consumption tracking

• Facility diagnostics and benchmarking

• Equipment duty cycle and usage patterns
