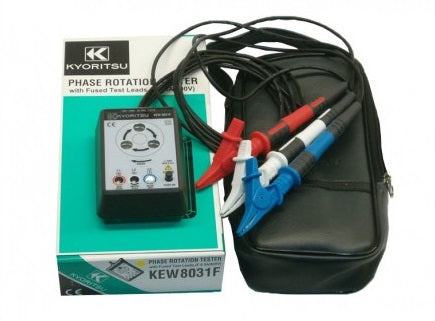

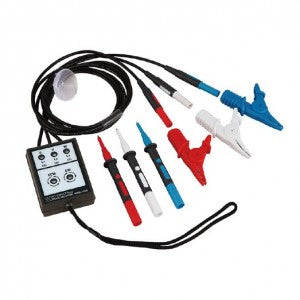

KEW8031F Phase Indicator with Fused Test Leads

Regular price $ 400.00 CAD $ 171.20 CAD Sale

  • Two functions in one unit - Phase Sequence & Open Phase Indicator
  • Highly Reliable - 3-phase power source from 110V to 600V
  • Functional Design - Small, Lightweight and portable.
  • Safe Design - No exposed metal parts
  • Safety standard IEC 61010-1 CAT.III 600V
  • For CSA approved unit please select KEW8031F-CSA

 Technical Specifications

Standard IEC61010-1 CAT. III 600V Pollution degree 2
Voltage: 110~600V AC
Duty Cycle: Continuous to 500V , Max. 5 Minutes from 500V to 600V
Frequency: 50/60Hz
Withstand Voltage: 5500V AC for 1 min.
Dimensions: 4.24"H x 3"W x 1.6"D (106 x 75 x 40mm)
Weight: 350g approx.
Fuse 0.5A/600V (F)
Accessories Instruction Manual, Carrying Case
